BOS-G-Pack5.1(PRO) – High Voltage LiFePO₄ Battery Module 5.12 kWh – 10 Year Warranty

BOS-G-Pack5.1(PRO) – High Voltage LiFePO₄ Battery Module 5.12 kWh – 10 Year Warranty

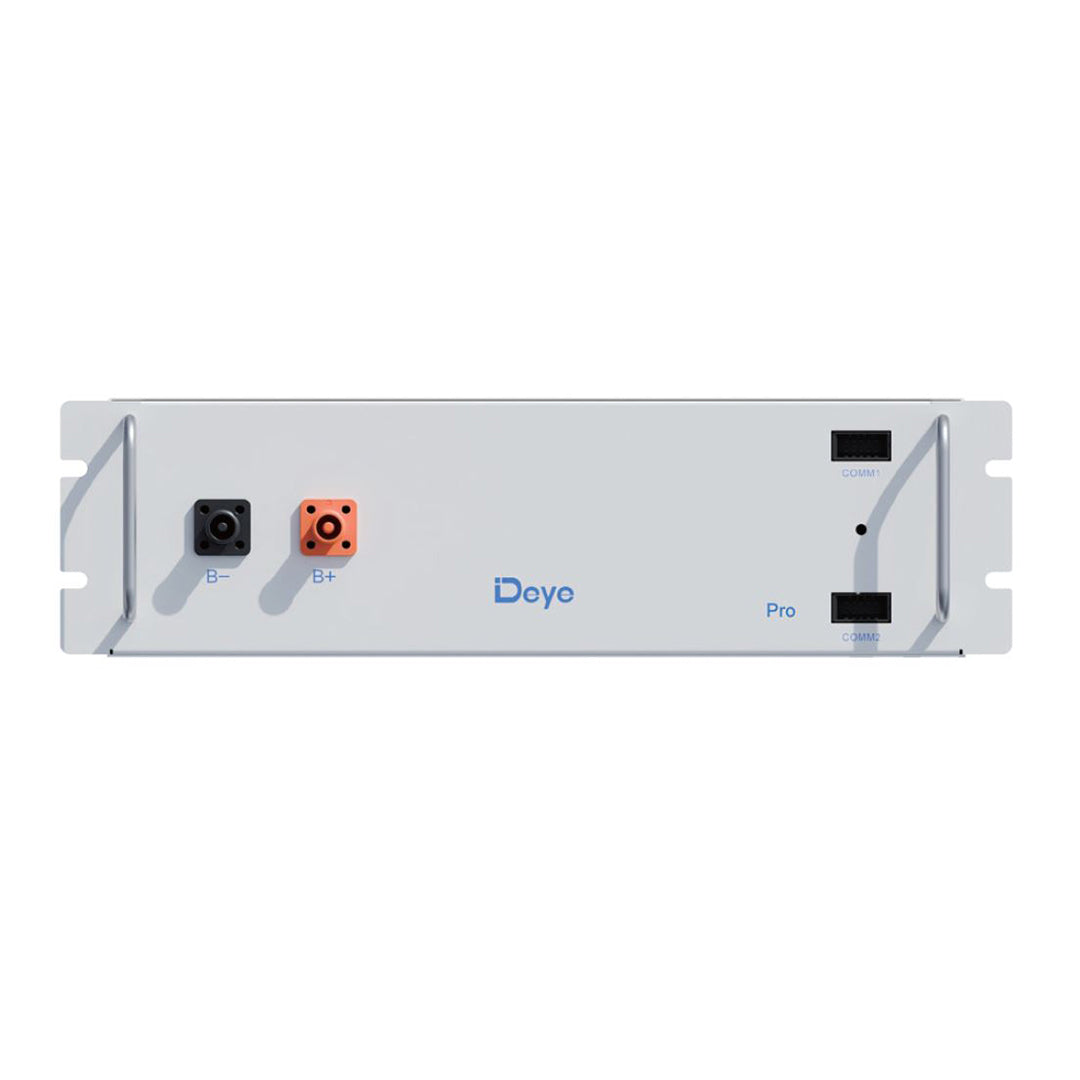

BOS-G-Pack5.1(PRO) is a high-voltage lithium-iron-phosphate (LiFePO₄) battery module for building scalable energy storage systems. It is designed for rack mounting and operates in a multi-module configuration to provide high voltage suitable for C&I (Commercial & Industrial) applications and compatible HV inverters from Deye.
Main features:

Energy capacity: 5.12 kWh
Rated voltage: 51.2 VDC
Capacity: 100 Ah
Rated charge/discharge current: 100 A
Peak discharge current: 120 A
Discharge operating temperature: from -20°C to +55°C
Charging temperature: from 0°C to +55°C
Dimensions: 440 × 585 × 133 mm
Weight: ~46 kg
Protection class: IP20

Battery Type:
High voltage module (High Voltage)
Designed for series connection - building HV systems with voltages from 220V to 819V, depending on the number of modules.
Installation configurations:

The batteries are installed in 19-inch rack-systems
5, 8, 12 or 16 modules can be installed in one rack according to the desired capacity and voltage
Possibility of up to 16 rack-systems in parallel

The batteries are compatible with Deye HV inverters and are connected via the HV control module BOS-G-PDU-2 (sold separately).
Price Note: The price is for 1 (one) BOS-G-Pack5.1(PRO) battery module.
To build a complete system, it is necessary to order several modules, depending on the configuration - e.g. 5, 8, 12 or 16 batteries in 1 stand.

Certifications:
UN38.3, CE, CE-EMC
IEC62040, CEC, VDE

Additional information
