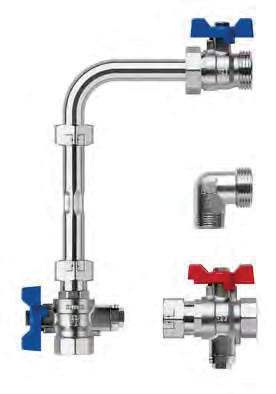

Heat meter connection set HSE 1962, angled

Heat‑meter connection set in an angle (Eck) version, suitable for DN20‑DN25 sizes.

• Body material: Brass CW617N, nickel‑plated
• Thread: external (AG) 2× 3/4" – 1" (DN20‑DN25)
• Pressure rating: PN 25
• Maximum temperature: up to +90 °C
• Pipe length: DN20 – 110 mm, DN25 – 130 mm
• Sensor socket: max Ø 5.6 mm
• Flat sealing

Suitable for heating systems and industrial applications with cold/warm water or water‑glycol mixtures.
