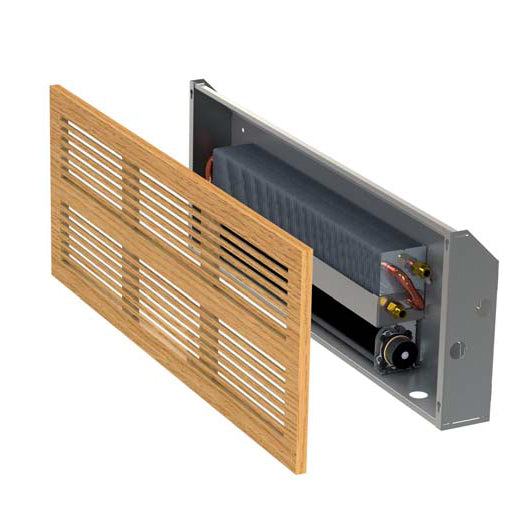

Wall Convector KZ 91

Built-in convector for installation in walls with face panel. For use in spaces with low build-in depth. Suitable for interiors with increased aesthetic demands. Provides increased user comfort.

CHARACTERISTIC

• high forced convection heating output
• quick response heating element
• low power consumption
• safe voltage 12 V DC

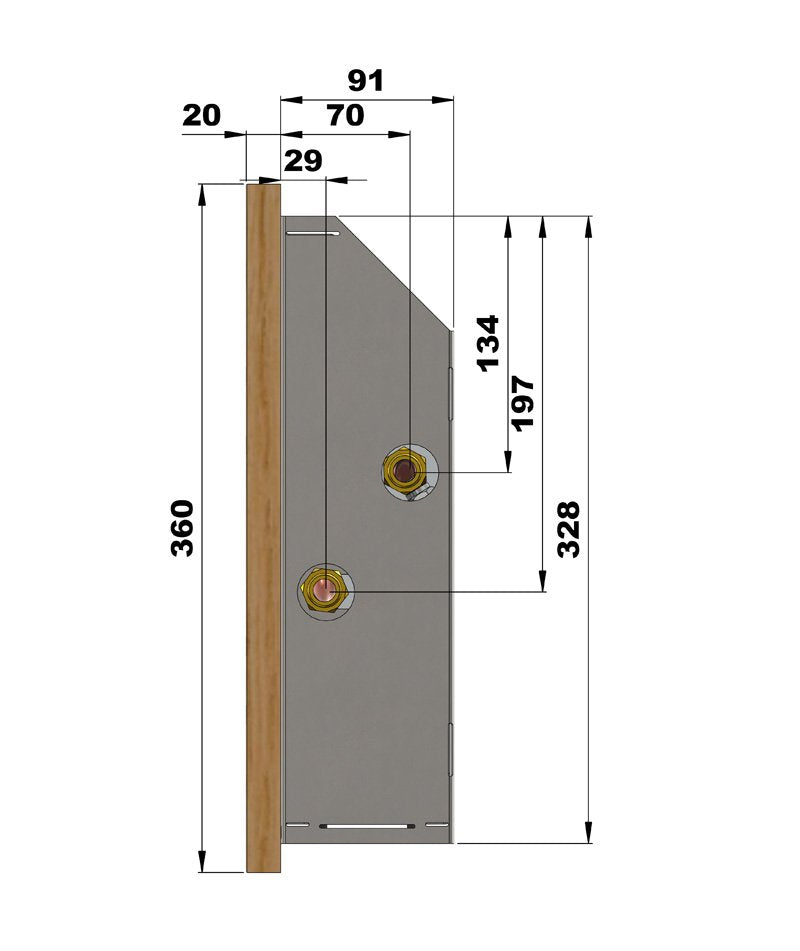

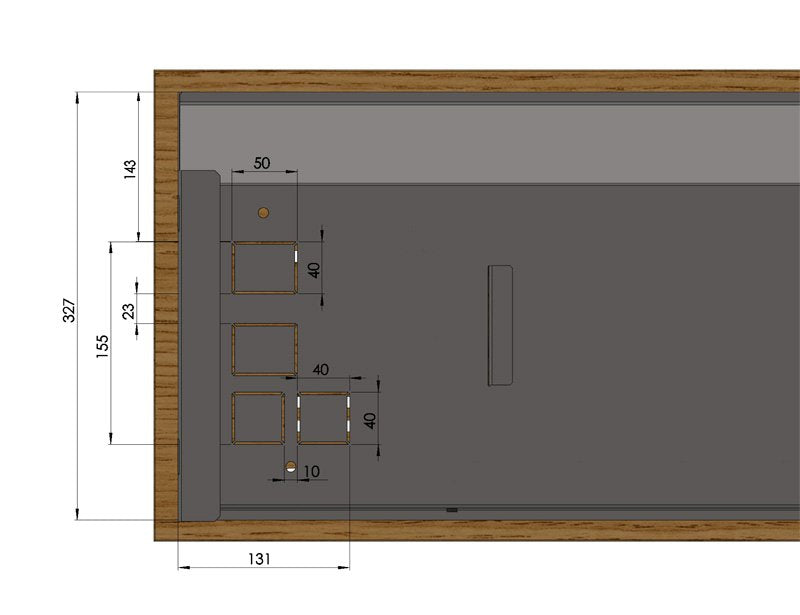

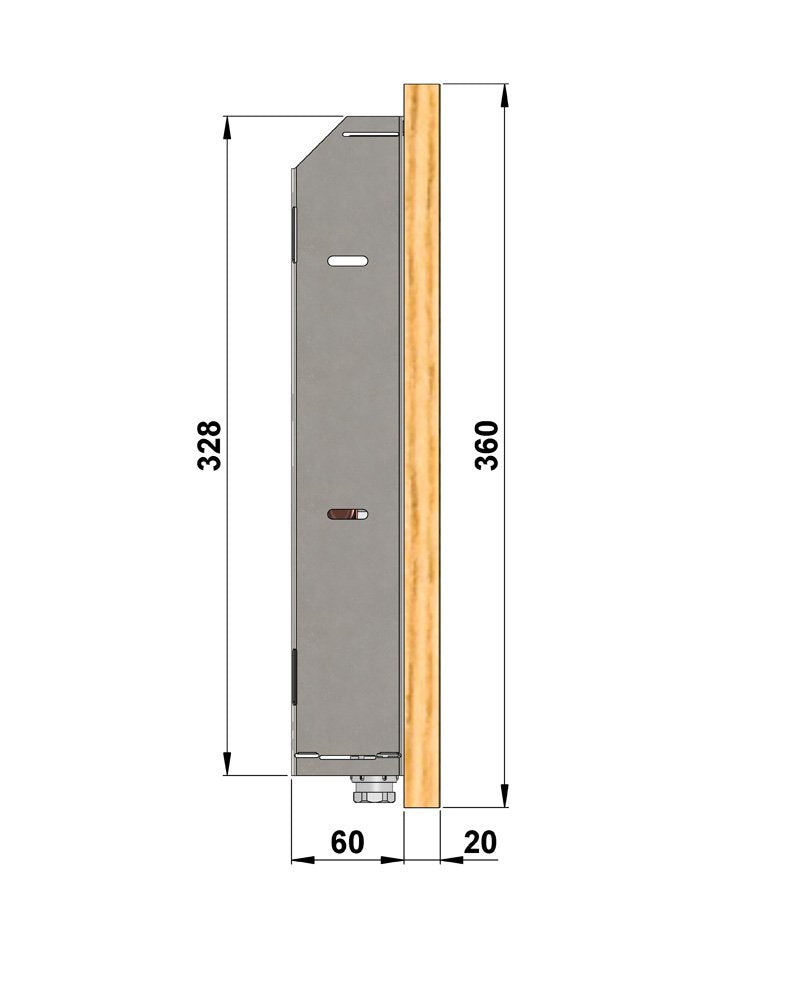

DIMENSIONS

• Width 60 mm
• Build height 360 mm
• Length 900 - 2000 mm

• COIL KZ 91	900	1000	1250	1500	1750	2000	length (mm)
  1st fan speed; 75/65/20 °C	1082	1262	1713	2164	2615	3066	heating power (W)
  2nd fan speed; 75/65/20 °C	1164	1358	1842	2327	2812	3297	heating power (W)
  3rd fan speed; 75/65/20 °C	1406	1640	1225	2811	3397	3982	heating power (W)

  COIL KZ 91 - DC MOTOR	900	1000	1250	1500	1750	2000	length (mm)
  	12	12	24	24	24	36	power input (VA)
