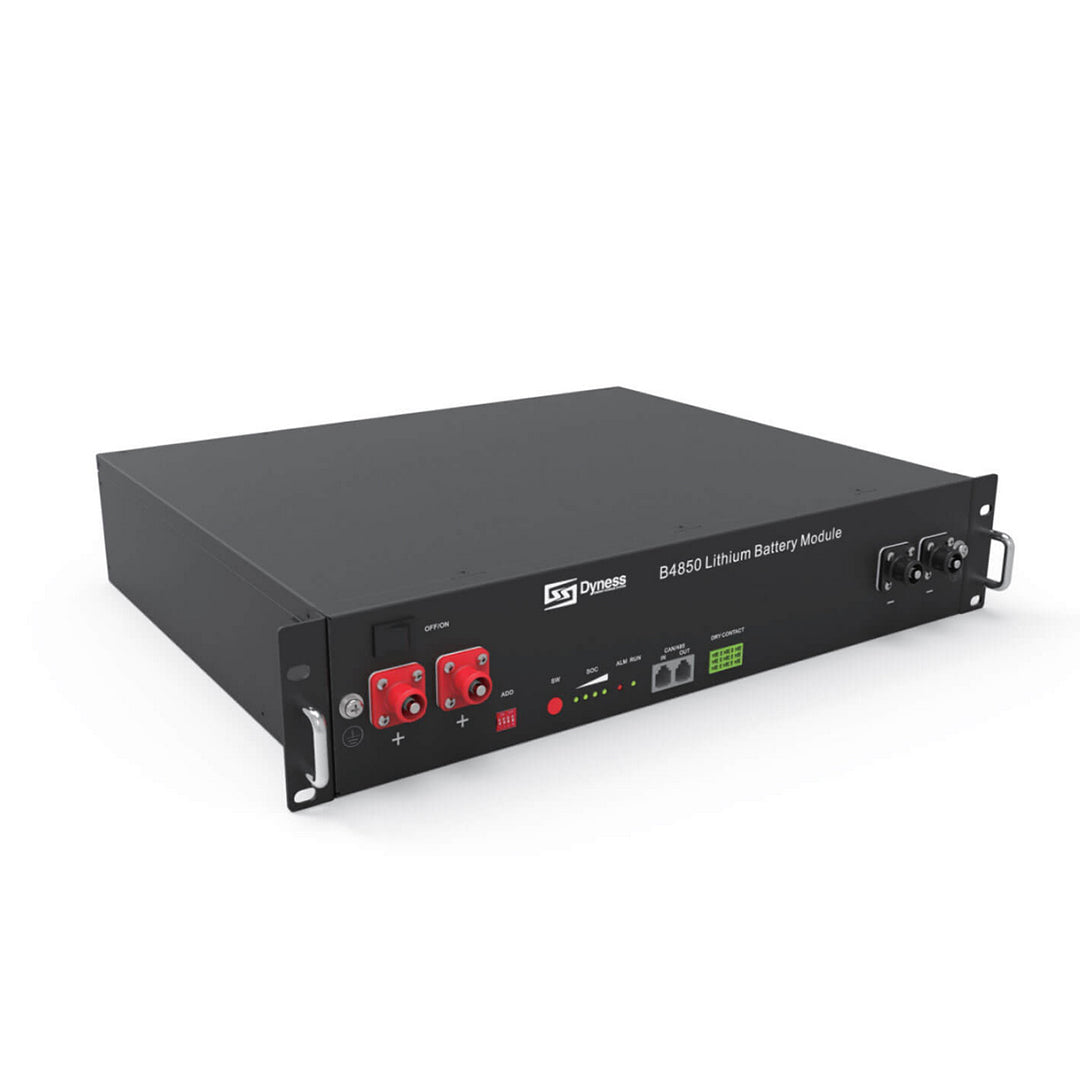

The LV Dyness B4850G battery

Dyness B4850G - Compact and expandable energy storage system

Dyness B4850G islow voltagelithium iron phosphate (LiFePO4) battery designed forhome and hybrid energy systems. Thanks toits modular design, it providespossibility to connect up to 40 parallel modules, offering a capacity of2.4 kWh to 96 kWh, which makes it exceptionalflexible and efficient.

Main advantages

✅ Flexible extension

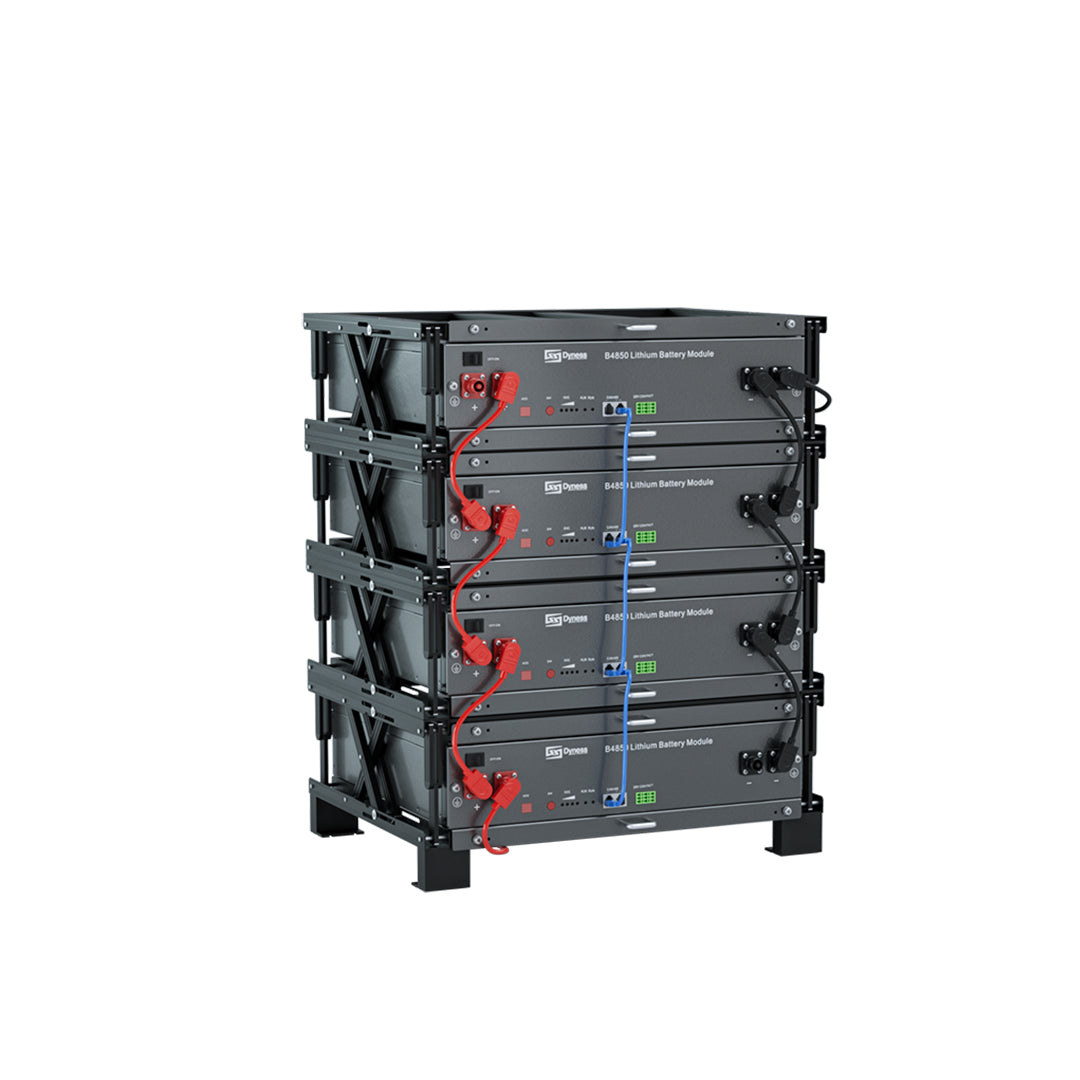

• Up to 40 modules in parallel, providing a capacity of2.4 kWh to 96 kWh
• Suitable forhome, off-grid and hybrid systems

✅ Easy installation and compact design

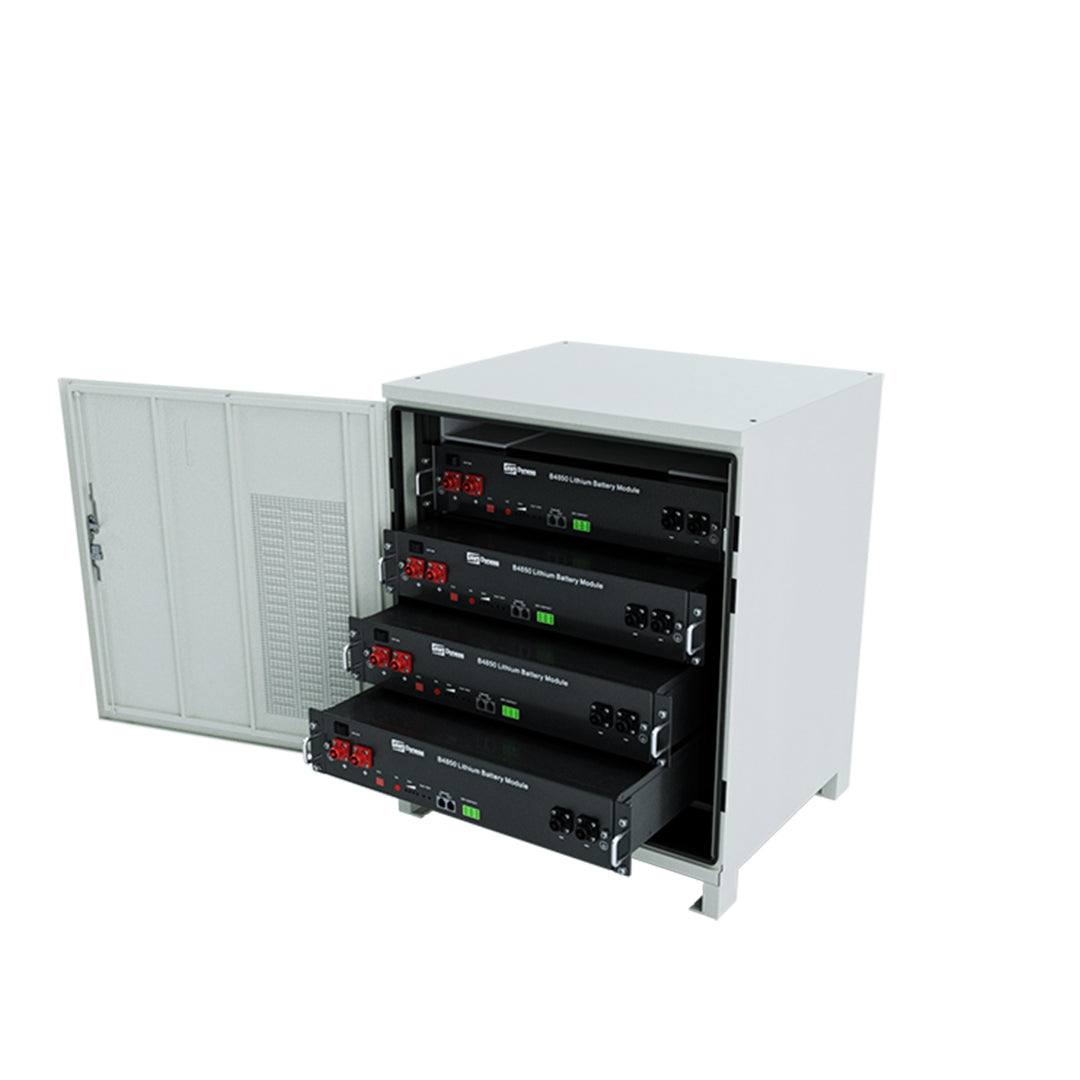

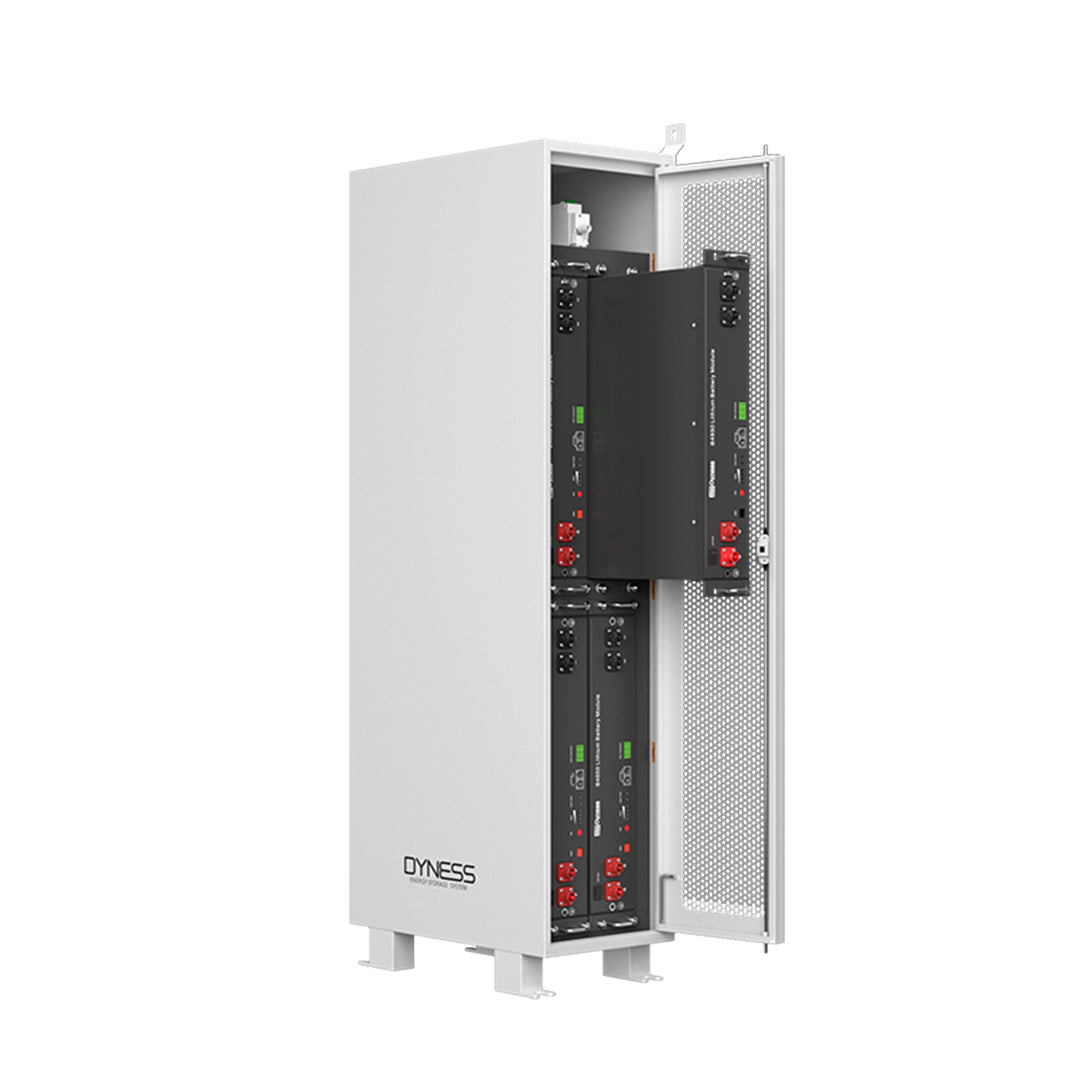

• Standardized 19-inch 2U enclosure, facilitating installation
• Easy installation fromonly one person

✅ Optimal efficiency and safety

• Balance between modules, even atdifferently charged batteries (0% – 100%)
• Defend againstshort circuit, overvoltage and other electrical hazards

✅ Compatible with leading inverter systems

• Works withSMA, Schneider, Victron Energy, Ingeteam, Solis, GoodWe, Growatt, Deye and others

Technical characteristics

• Battery Type: LiFePO4
• Capacity: 2.4 kWh
• Rated voltage: 48V
• Operating voltage: 42V – 54.75V
• Rated capacity: 50Ah
• Maximum charge/discharge: 50A
• Peak Charge/Discharge:55A (protection)
• Depth of Discharge (DOD): 90%
• Dimensions:480 × 360 × 90 mm
• Weight:22 kg
• Temperature range:
  • Loading: 0°C – 55°C
  • Discharge: -20°C – 55°C
• Communication: CAN / RS485
• Cycle life:≥6000 cycles
• Protection level: IP20

Dyness B4850G isdurable and reliable solutionfor home energy management, providinghigh efficiency, scalability and security.
