Battery Dyness Tower LiFePO4 High Voltage Batteries Dyness Tower T10

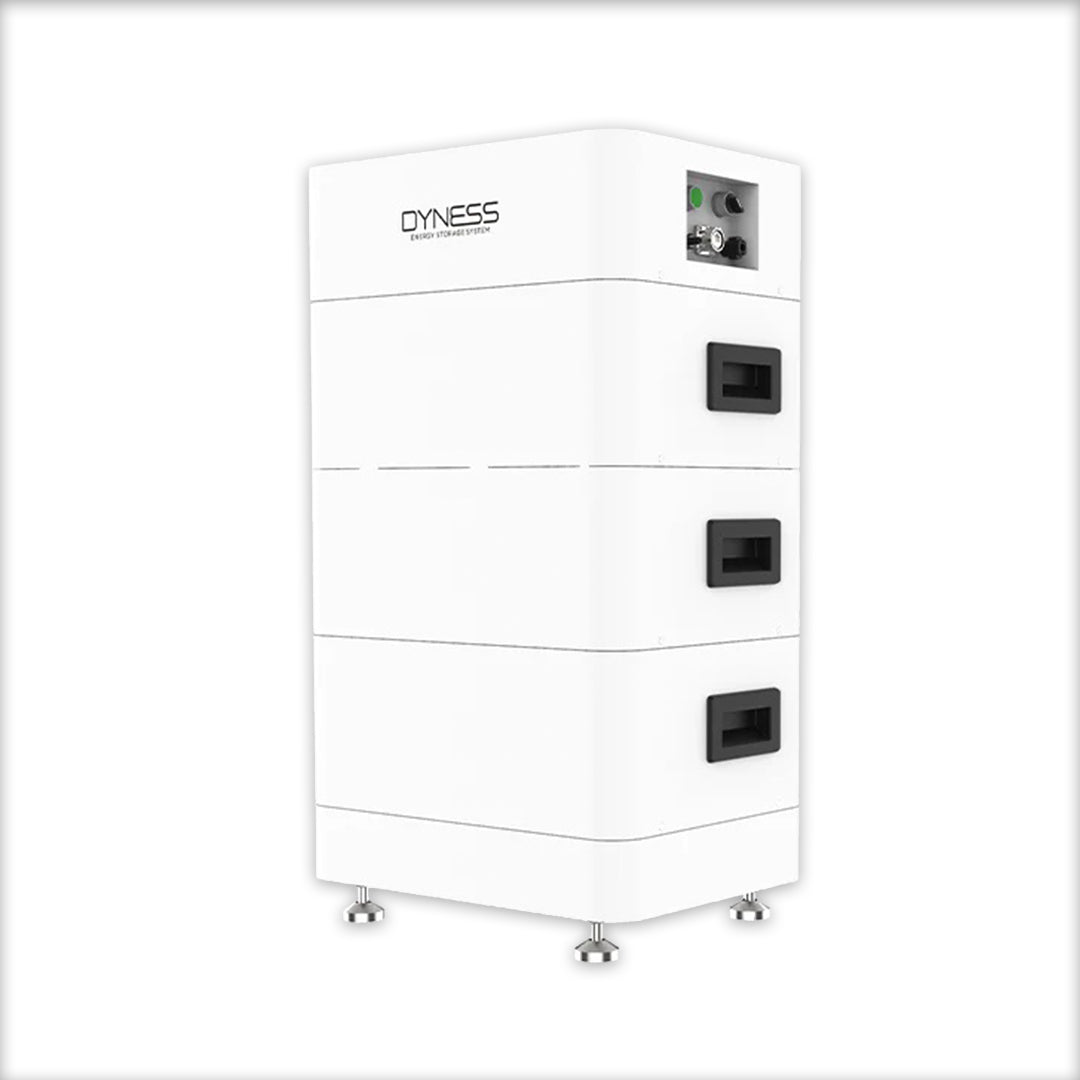

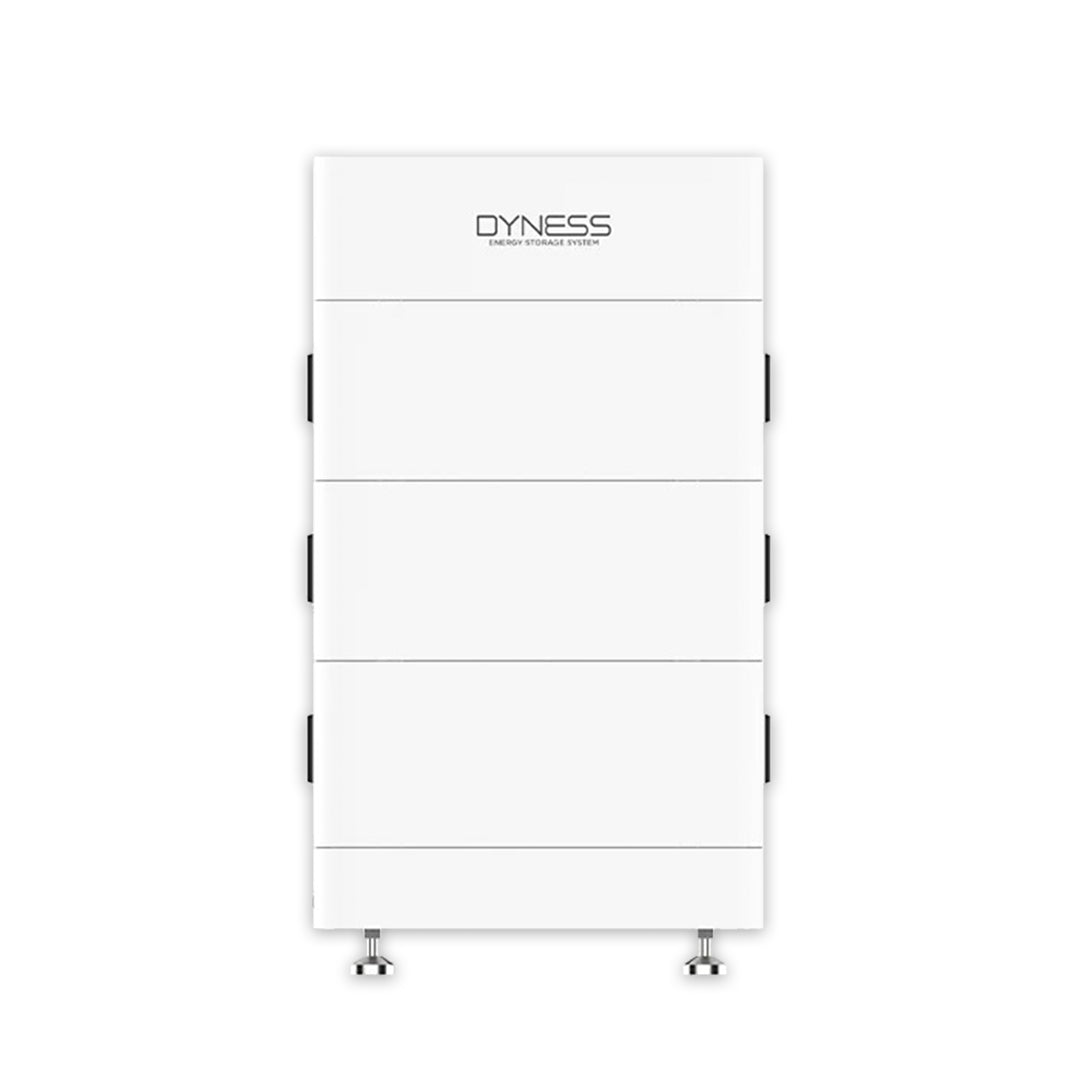

The Dyness Tower T10 is a high-voltage, modular battery system designed for large residential applications. With a capacity of 10.66 kWh and usable energy of 10.127 kWh, it provides reliable energy storage for your home.

Main features:

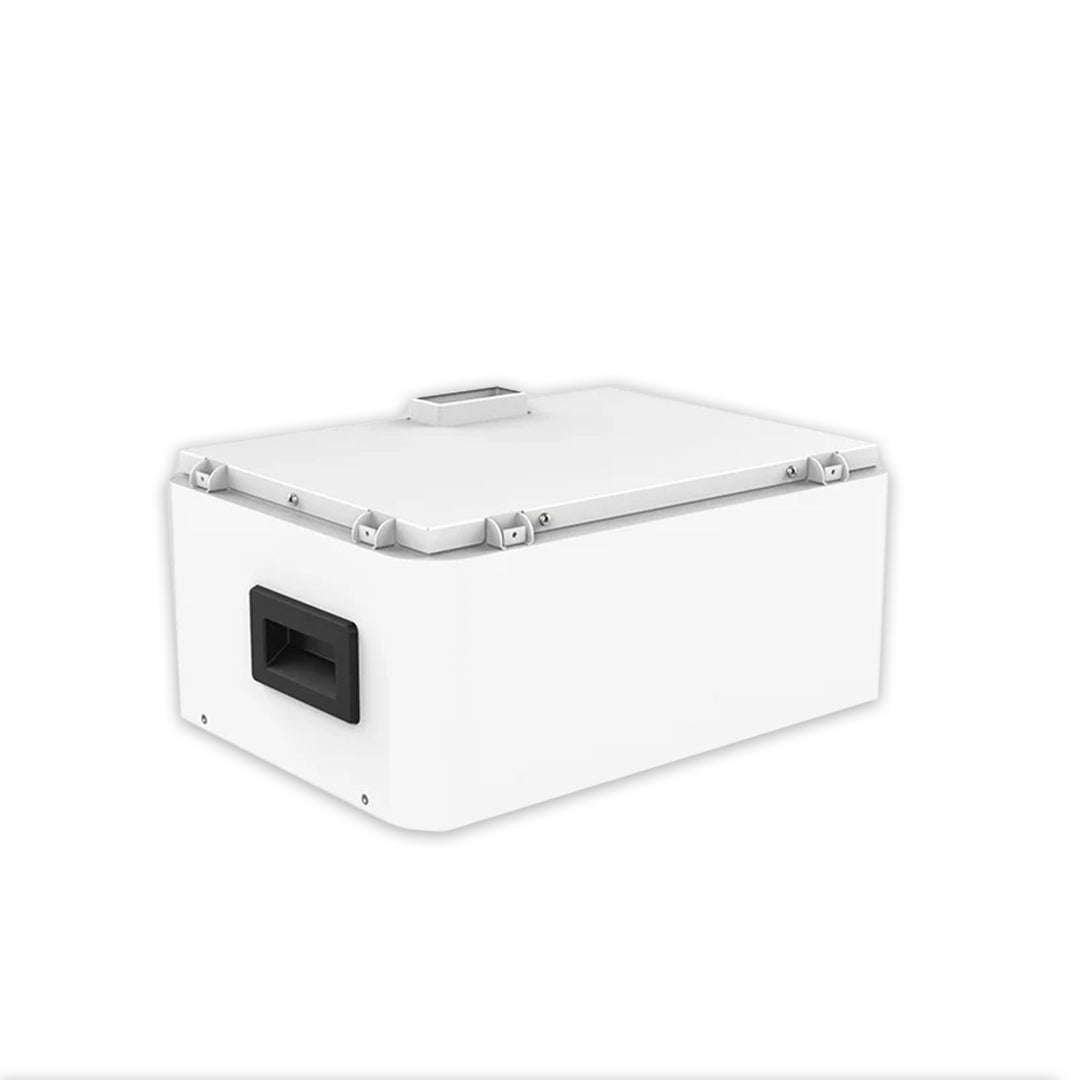

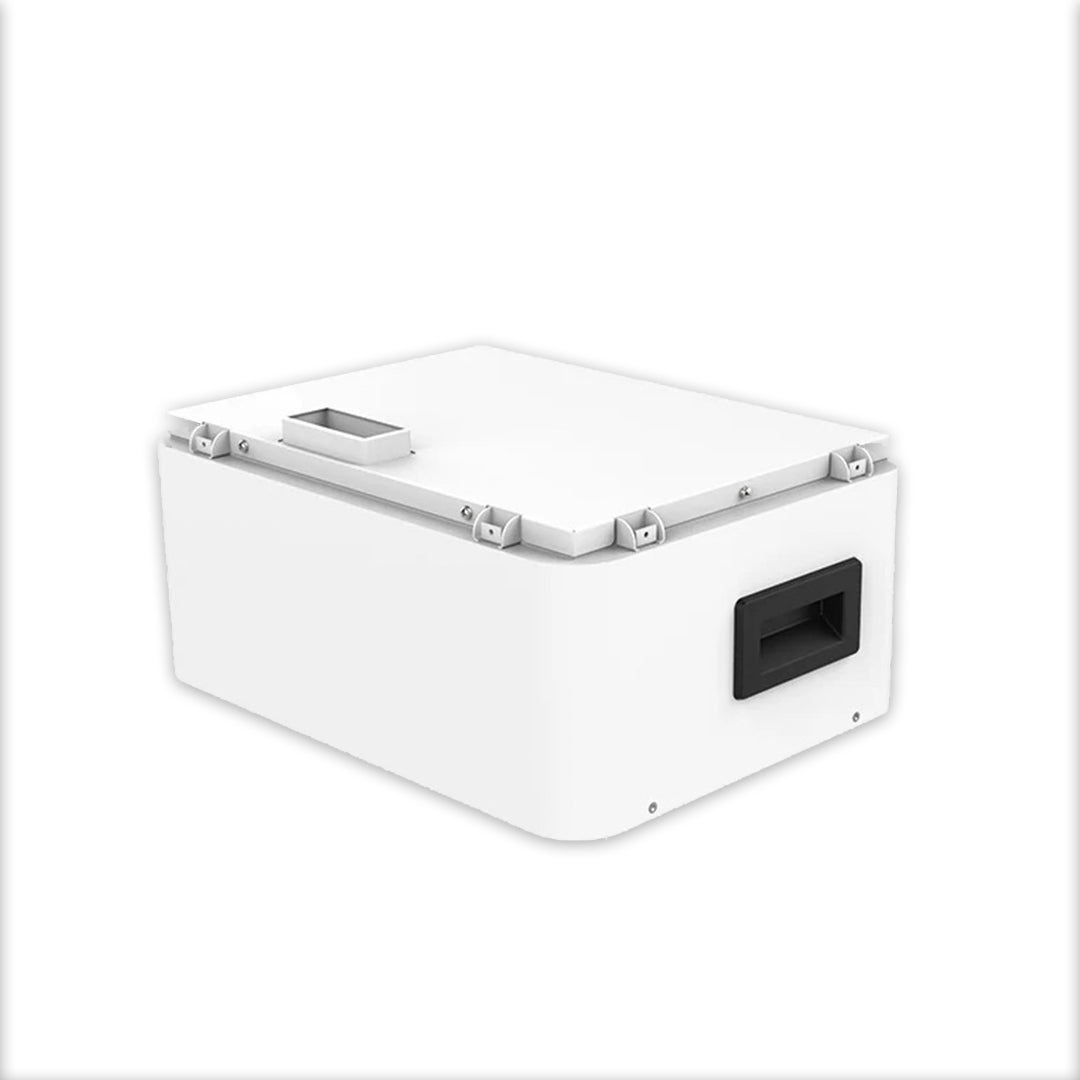

Modular design: The system allows for easy expansion by adding additional modules, supporting up to 6 modules for a total capacity of up to 21.31 kWh.
Wide compatibility: Compatible with leading inverters such as Ingeteam, Kostal, Goodwe, Solis, SAJ, Sinexcel, Atess, Deye, Sunways and Ecactus, making it flexible for different systems.
High protection: With protection level IP54, the battery is suitable for indoor and outdoor installation, ensuring resistance to dust and water splashes.
Long life: With over 6000 charge and discharge cycles, it guarantees long-lasting and reliable operation.
Easy Installation: The stackable design and wireless connection make it easy to install and configure the system.

Technical specifications:
Rated voltage: 288V
Nominal capacity: 37Ah
Maximum continuous charge/discharge power: 6.39 kW
Dimensions (WW): 504380900 mm
Weight: 146 kg
Charging temperature range: 0~50°C
Discharge temperature range: -10~50°C
Communication: CAN/RS485/RS232
Recommended Depth of Discharge (DOD): 95%

Dyness Tower T10 is the ideal solution for efficient and reliable energy storage in your home, ensuring energy independence and sustainability.

Compatibility - DynesscompatiblelistHV241118

datasheet / technical characteristics – DynessTowerdatasheetchangguibanEN

We inform you that, despite our efforts, we cannot guarantee that the published information and photos do not contain inaccuracies or errors that cannot be a legal basis for claims.

Documentation

• Съвместимост – DynesscampatiblelistHV241118
• datasheet / технически характеристики – DynessTowerdatasheetchangguibanEN
