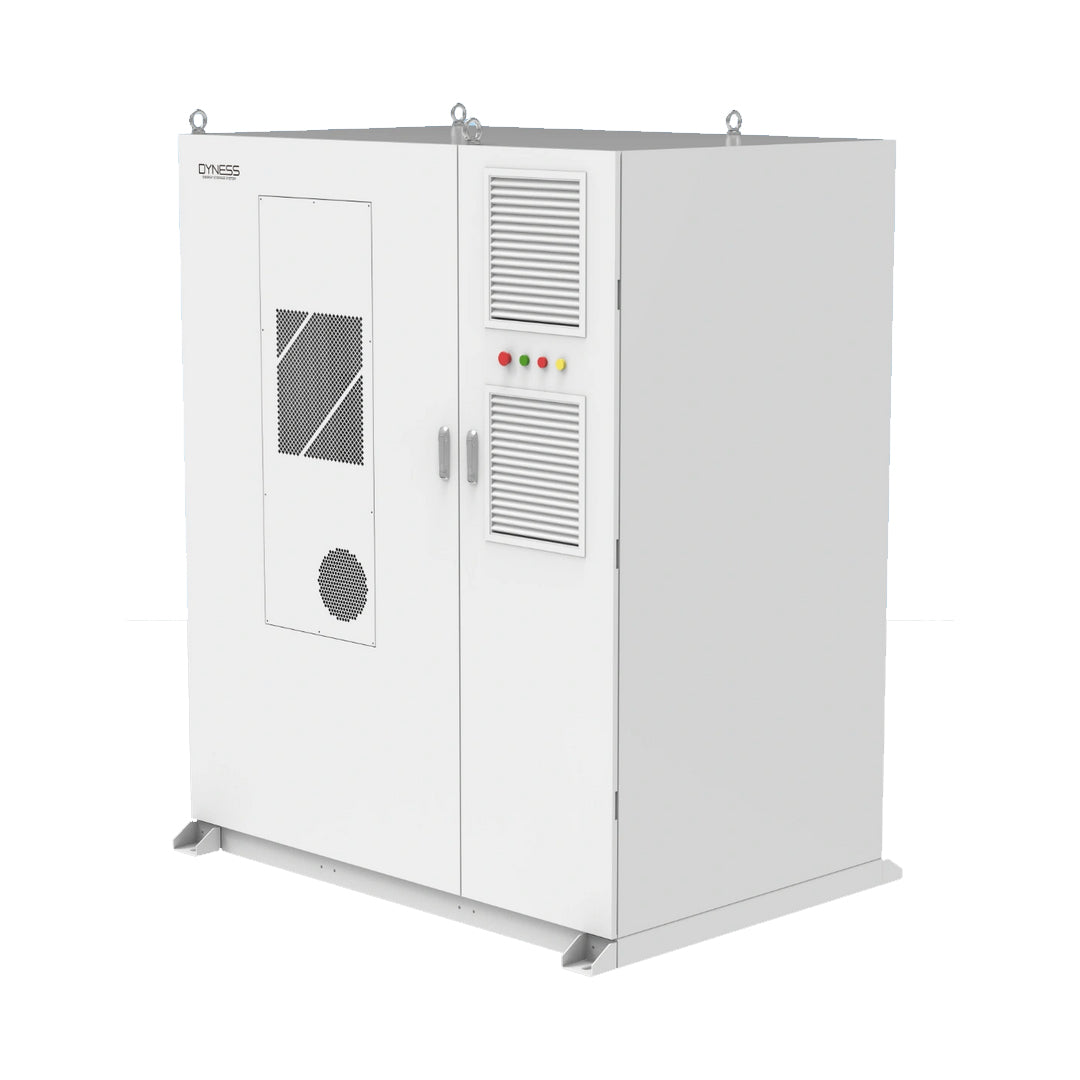

High Voltage Energy Storage System - DYNESS All-in-one DH200F S000L00

DYNESS All-in-one DH200F S00L00 - High Voltage Energy Storage System

DYNESS All-in-one DH200F S000L00 ismultipurpose high voltage (HV) energy storage system, intended forindustrial, commercial and large energy projects. With an integrated design, it supportsGrid Connected, providing215 kWhcapacity and400V rated voltage.

Main advantages

✅ High capacity and expandability

• 215 kWhbattery capacity
• 280 Ahnominal capacity
• 400V rated voltage
• Opportunity forexpansion with up to 12 parallel devices, reaching2.58 MWh

✅ Reliability and security

• High degree of protection IP55, resistant to external conditions
• Advanced fire protectionwith multi-layer detection and EMS control
• Intelligent switching systembetween grid and off-grid mode forless than 20ms

✅ Modern construction and innovation

• Effective air circulationfor better cooling and optimal performance
• Low noise levels (≤75 dB)
• Touch displayfor management and monitoring

Technical characteristics

• Battery Type: LiFePO4
• Battery capacity: 280 Ah
• Rated capacity: 215 kWh
• Rated voltage: 400V
• Maximum input current: 100A
• Maximum output current: 167A
• Temperature range:-20°C to 50°C
• Cooling:Aerial
• Protection level: IP55
• Weight: 2800 ± 100 kg
• Dimensions: 1850 × 1265 × 2250 mm
• Communication: Ethernet, 4G, RS485
• Certifications: CQC, CE, TUV

DYNESS All-in-one DH200F S000L00 isan extremely effective and reliable solutionforenergy storage and management, which providesflexibility, security and optimal performancein various industrial and commercial scenarios
