High-voltage energy storage system - DYNESS All-in-one DH200F S100L01

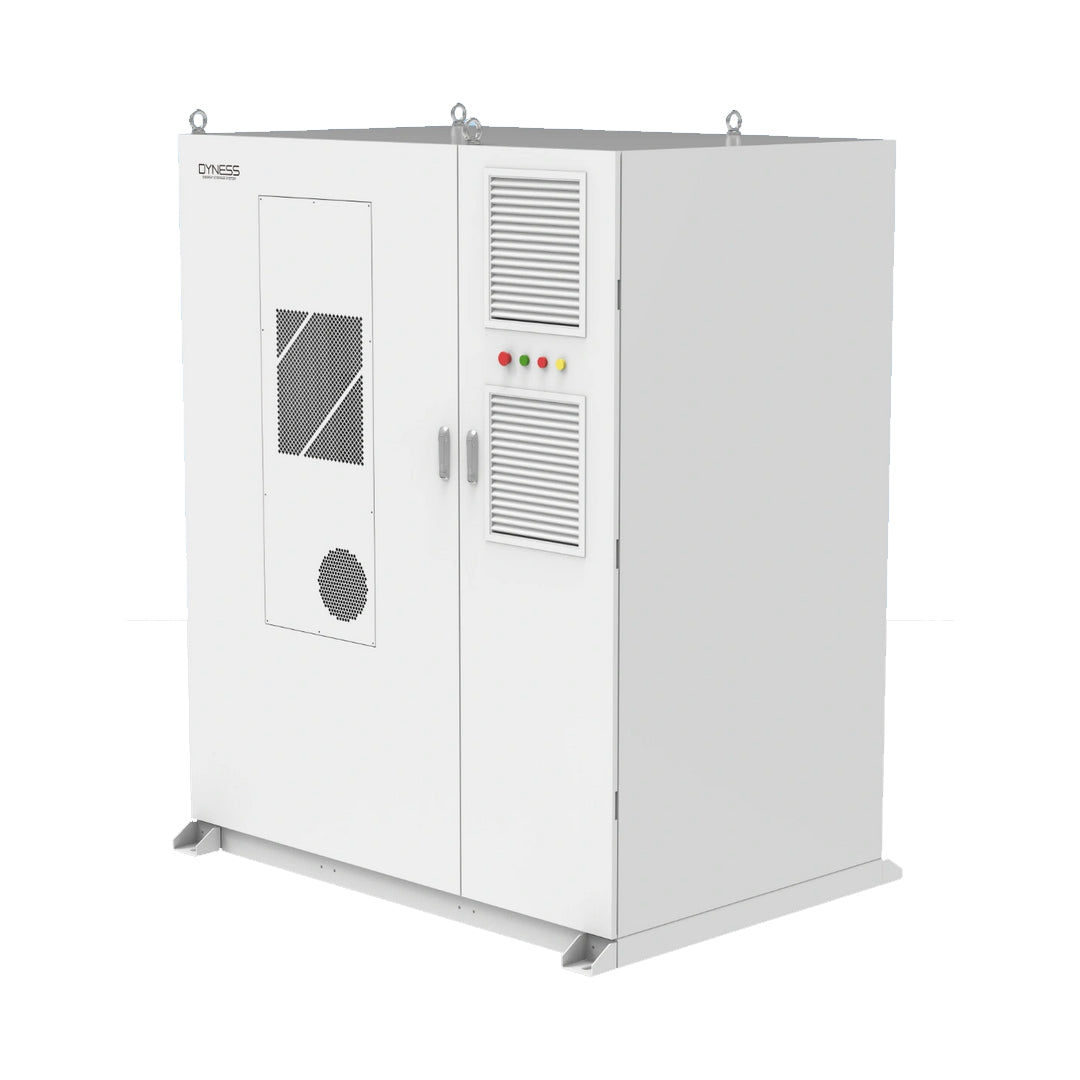

DYNESS All-in-one DH200F S100L01 – High Voltage Ongrid/Offgrid System with 2 MPPT Controllers

DYNESS All-in-one DH200F S100L01 isintelligent high voltage (HV) energy storage system, intended as forboth ongrid and offgridapplications. S215 kWh capacity, 400V nominal voltageandtwo MPPT controllers, this system offersmaximum efficiency and reliability for solar energy solutions.

Main advantages

✅ High capacity and expandability

• 215 kWhbattery capacity
• 280 Ahnominal capacity
• 400V rated voltage
• Expandable with up to 12 parallel modules, reaching2.58 MWh

✅ Smart PV charging with 2 MPPT controllers

• Photovoltaic charging optimizationthroughtwo independent MPPT controllers
• Maximum input power: 50kW
• Input operating voltage: 200V – 670V

✅ Flexible control and quick switching

• Supports both ongrid and offgrid modes
• Automatic switching between grid and off-grid in less than 20ms
• Intelligent energy management system with low losses

✅ High reliability and safety

• IP55 protection, resistant to atmospheric influences
• Advanced fire protectionwith multi-layer detection and EMS control
• Low harmonic coefficient THDi (< 3%), ensuring stability of the electrical grid

✅ Optimized design and performance

• Touch displayfor monitoring and control in real time
• Effective air cooling
• Low noise levels (≤75 dB), suitable for different environments

Technical characteristics

• Battery Type: LiFePO4
• Battery capacity: 280 Ah
• Rated capacity: 215 kWh
• Rated voltage: 400V
• Maximum input current: 100A
• Maximum output current: 167A
• MPPT controllers: 2 pieces
• Maximum input power: 50kW
• Input voltage: 200V – 670V
• Temperature range:-20°C to 50°C
• Cooling:Aerial
• Protection level: IP55
• Weight: 2800 ± 100 kg
• Dimensions: 1850 × 1265 × 2250 mm
• Communication: Ethernet, 4G, RS485
• Certifications: CQC, CE, TUV

DYNESS All-in-one DH200F S100L01 offersintelligent and reliable energy management, asoptimizes charging from photovoltaic systems, guaranteeingstability, scalability and high efficiency​

DATASHEET / Technical characteristics – DH200FdatasheetEN2024.12.26
Installation Manual - dyness-dh200f-manual

We inform you that, despite our efforts, we cannot guarantee that the published information and photos do not contain inaccuracies or errors that cannot be a legal basis for claims.
