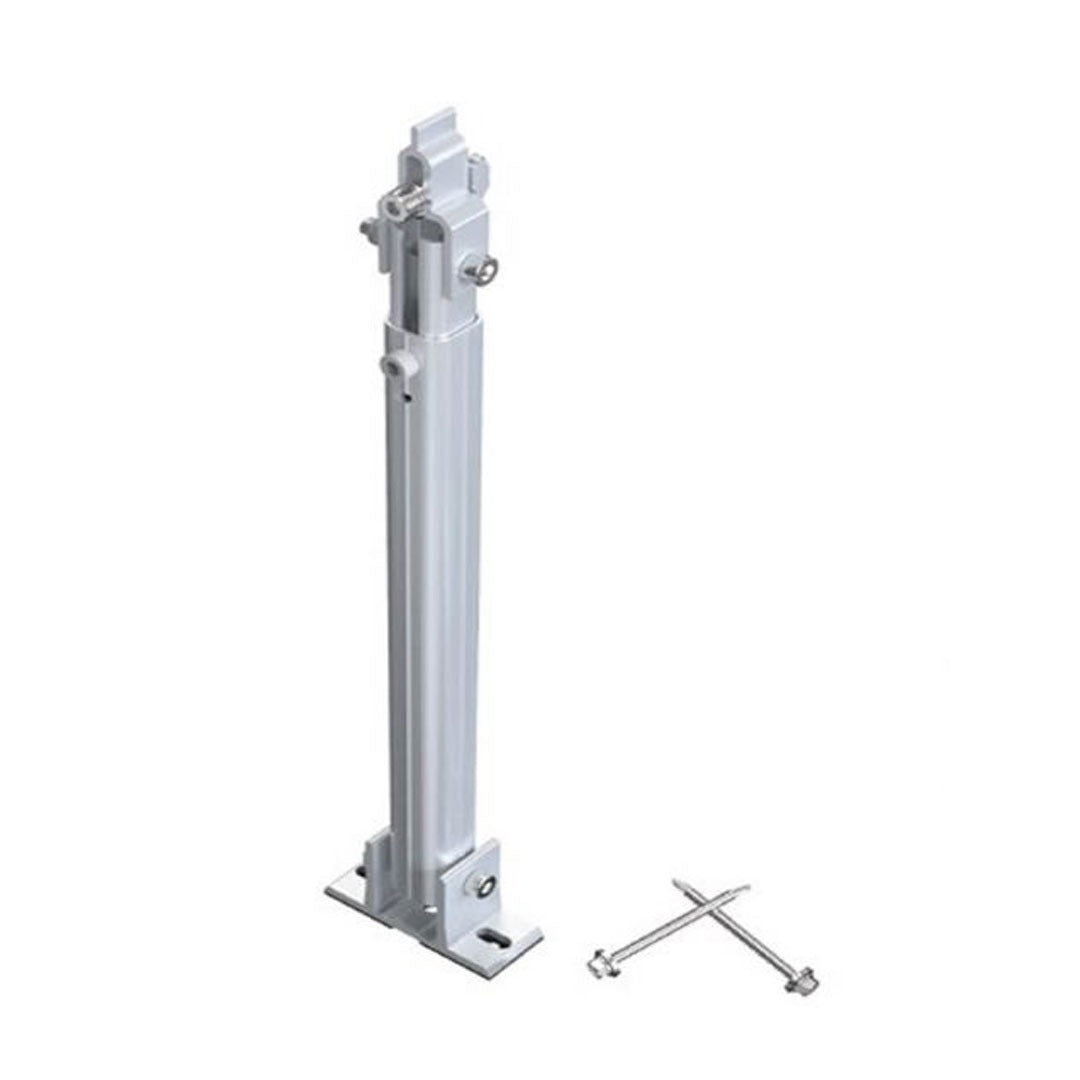

Back leg with adjustable tilt ARL-15-30

Rear mounting element with telescopic construction and the ability to precisely adjust the inclination of solar panels. Suitable for installation on flat surfaces in ground or rooftop photovoltaic systems.

The set includes:

• 1 × Rear Leg ARL-15-30

• 2 × Stainless mounting screws

• 1 × Bolt mounting kit with washer

Advantages:

• Precise angle adjustment according to latitude

• Increased strength under strong wind loads

• Quick installation without the need for additional tools

• Suitable for all weather conditions

• We inform you that, despite our efforts, we cannot guarantee that the published information and photos do not contain inaccuracies or errors that cannot be a legal basis for claims.

Main features:

✅ Adjustable tilt:15° to 30°
✅ Compatibility:Universal – works with most profile systems
✅ Construction:Telescopic body for easy height adjustment
✅ Material:Aluminum AL6005-T5 – anodized for corrosion protection
✅ Fastening:SUS304 stainless steel - bolts and screws included
✅ Surface mounting:With screw holes on concrete, metal or wood
✅ Temperature resistance:-40°C to +85°C
✅ Durability:UV, moisture, snow and wind
✅ Height (adjustable):about 450–800 mm (depending on position)
✅ Load capacity:Suitable for areas with loads up to 5.4kN/m²
