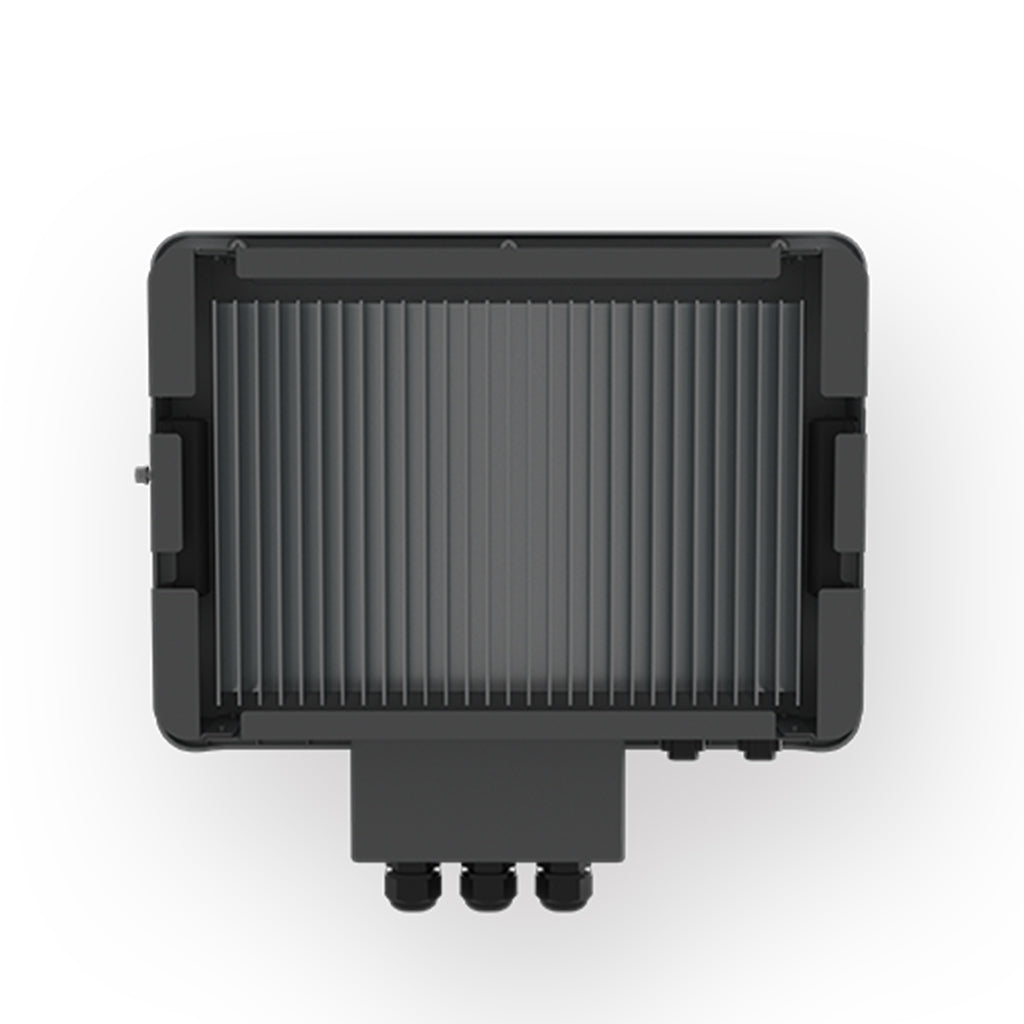

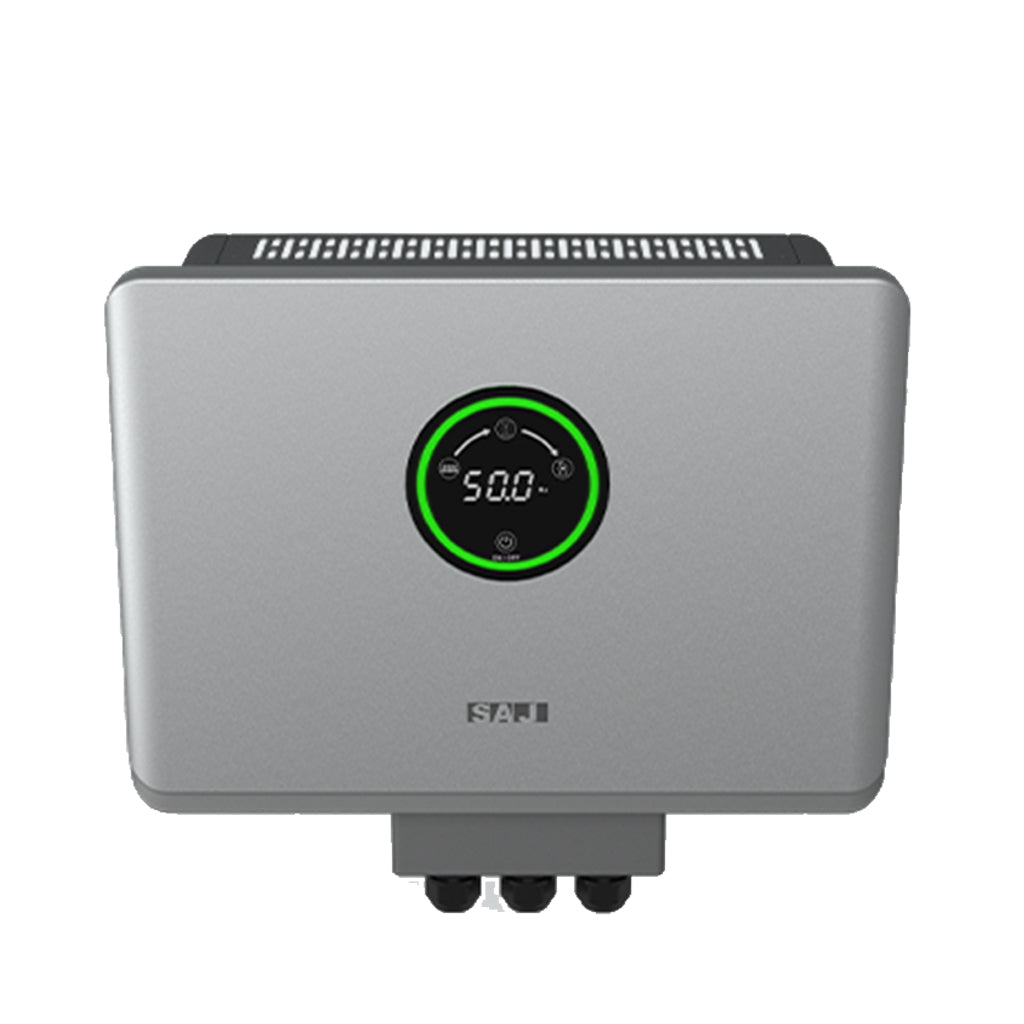

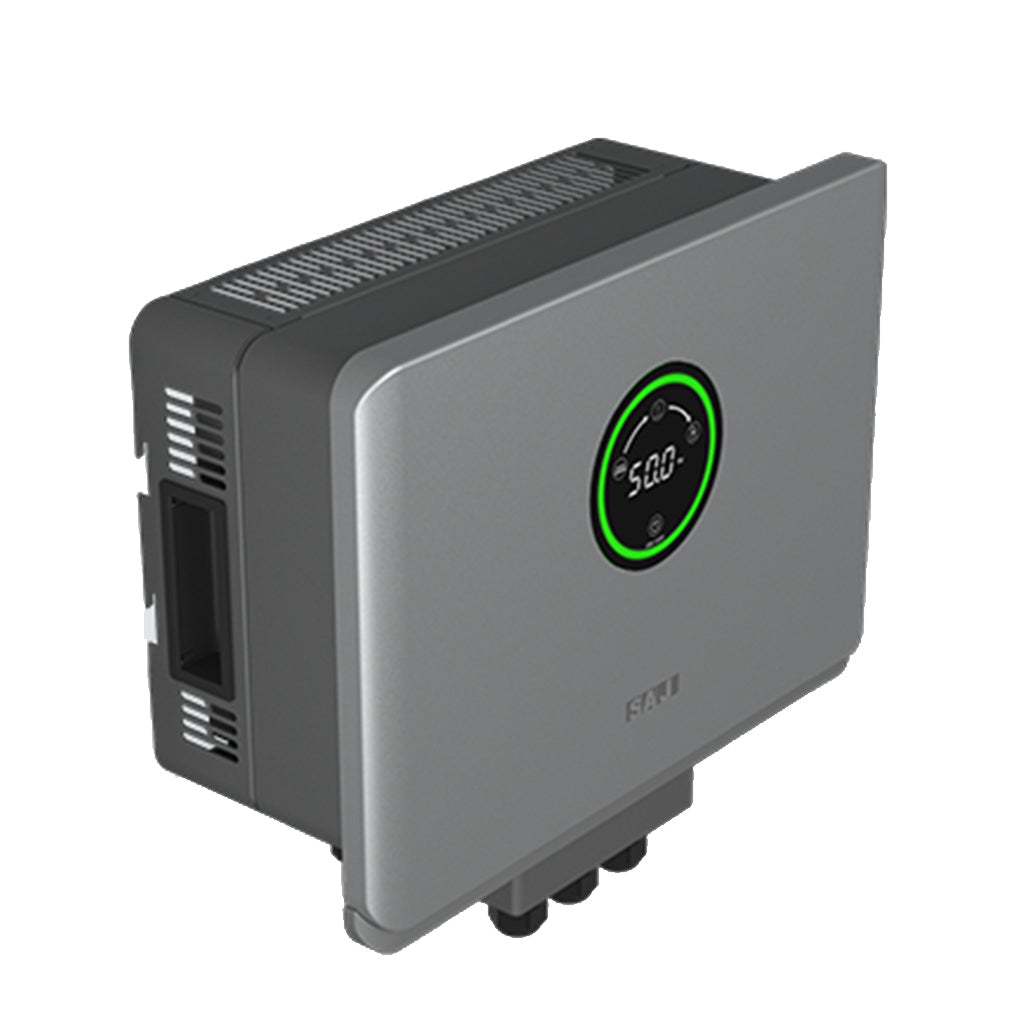

Solar pump controller, Three-phase, 7.5kw, IP65 SAJ
Solar pump controller, Three-phase, 7.5kw, IP65 SAJ
Solar pump controller, Three-phase, 7.5kw, IP65 SAJ
Solar pump controller, Three-phase, 7.5kw, IP65 SAJ
Solar pump controller, Three-phase, 7.5kw, IP65 SAJ
Solar pump controller, Three-phase, 7.5kw, IP65 SAJ
SAJ

Solar pump controller, Three-phase, 7.5kw, IP65 SAJ

Available:
Only 0 item in stock
0 item in stock
In stock
Pre-order
Out of stock
Price on request
Ask for price
Изпрати ми съобщение, когато има наличност
Ще получите имейл, когато продукта е наличен.
  • Description
  • Shipping & Returns

The solar pump controller SAJ PDS51-4T7R5-E is specially designed to control three-phase solar pumps with a power of up to 7.5kw. It has a built-in MPPT control for more efficient use of solar energy, as well as a built-in protection mechanism that protects the pump from overload, overheating and other electrical problems.

The controller can operate in a variety of modes, including manual mode, automatic mode, and time-controlled. Additionally, it is equipped with an LCD display for easy programming and system status monitoring.

The SAJ PDS51-4T7R5-E is a highly reliable and efficient solar pump controller that can be used successfully in a variety of applications for water supply, field irrigation, wastewater treatment, and more.

Technical Specifications – DATASHEEET- SAJ Solar Pumping Controller-20221209052239631
Installation Manual - PDS51 Solar Pump Controller User Manual-20220908033305484

Solar pump controller, Three-phase, 5.5kw, IP65 SAJ PDS51-4T5R5-E

  • Max. Input voltage [V] 900
  • Starting voltage [V] 220
  • Min. Input voltage [V] 200
  • MPPT Voltage Range [V] 400-750
  • Recommended input operating voltage [V] 560
  • no. of DC input [MC4 connection] 2
  • Output power [kW] 7.5
  • Rated current [A] 17
  • Degree of ingress protection IP65
  • Communication interface 4G/2G GPRS DTU
  • External interface – External LED keyboard
  • Cooling mode - natural convection
  • Ambient operating temperature – -20℃～60℃ (>45℃, rated power will be reduced by 1% for each additional 1℃)
  • Operating altitude - <3000m recommended (rated power will be reduced by 1% for each additional 100m when altitude is ≥ 2000m)
  • Size [H*W*D] [mm] 315*430*186
  • Weight [kg] – 12
