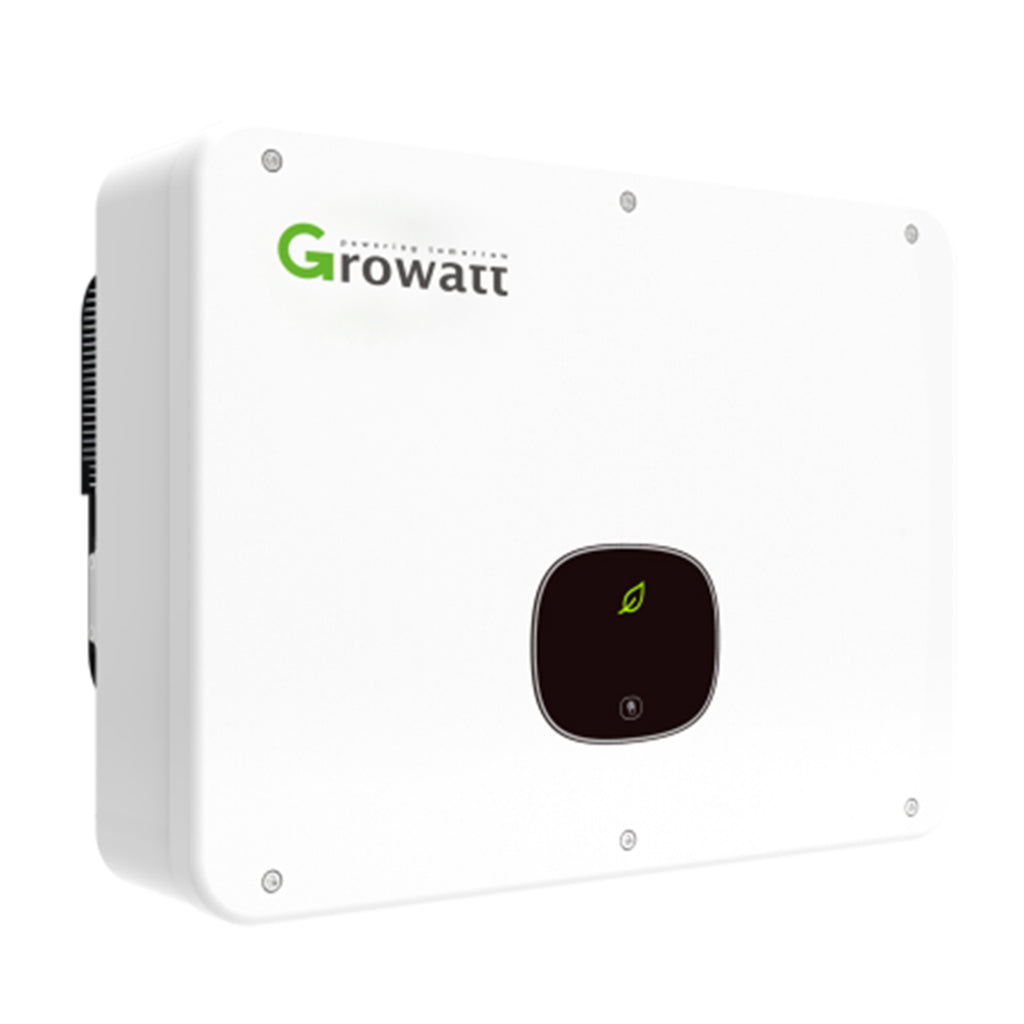

Three-phase grid inverter Growatt 20KW, MID 20 KTL3-X (with AFCI, type II SPD), 2MPPT

Growatt MID 20KTL3-Xhas a total DC power of 26,000 Wp and AC power of 20,000 W. The inverter is specially designed for commercial PV installations and has a maximum efficiency of 98.75%. As a result, maximum energy yield is achieved with your solar panel system. This inverter has a lighter design and extremely compact dimensions. This makes it easy and convenient to transport, and its installation can be done even by just one person. Features dual MPR trackers and a transformerless design. This ensures low operating noise levels and makes this inverter a perfect choice for use in homes and office buildings. In addition, this type of design provides natural cooling of the inverter so that no fan or transformer is required. In addition, it has an IP65 protection level, which allows you to mount it without any problems, both outside and inside.

Growatt MID 20KTL3-Xit has a touch button and an OLED display that make it even easier to configure and control. It is possible to connect the inverter via WiFi, including USB port and RS48.

• Technical Specifications - Datasheet Growatt MID20KTL3-X
• User manual - MID 17-40KTL3-X user manual
• Certificates – MID 25-40KTL3-X CE LVD

Additional information

Documentation

• Technical Specifications - Datasheet Growatt MID20KTL3-X
• User manual - MID 17-40KTL3-X user manual
• Certificates – MID 25-40KTL3-X CE LVD
