Three-phase mains inverter Growatt 40KW MID 40 KTL3-X (AFCI), Type II SPD, 4MPPT

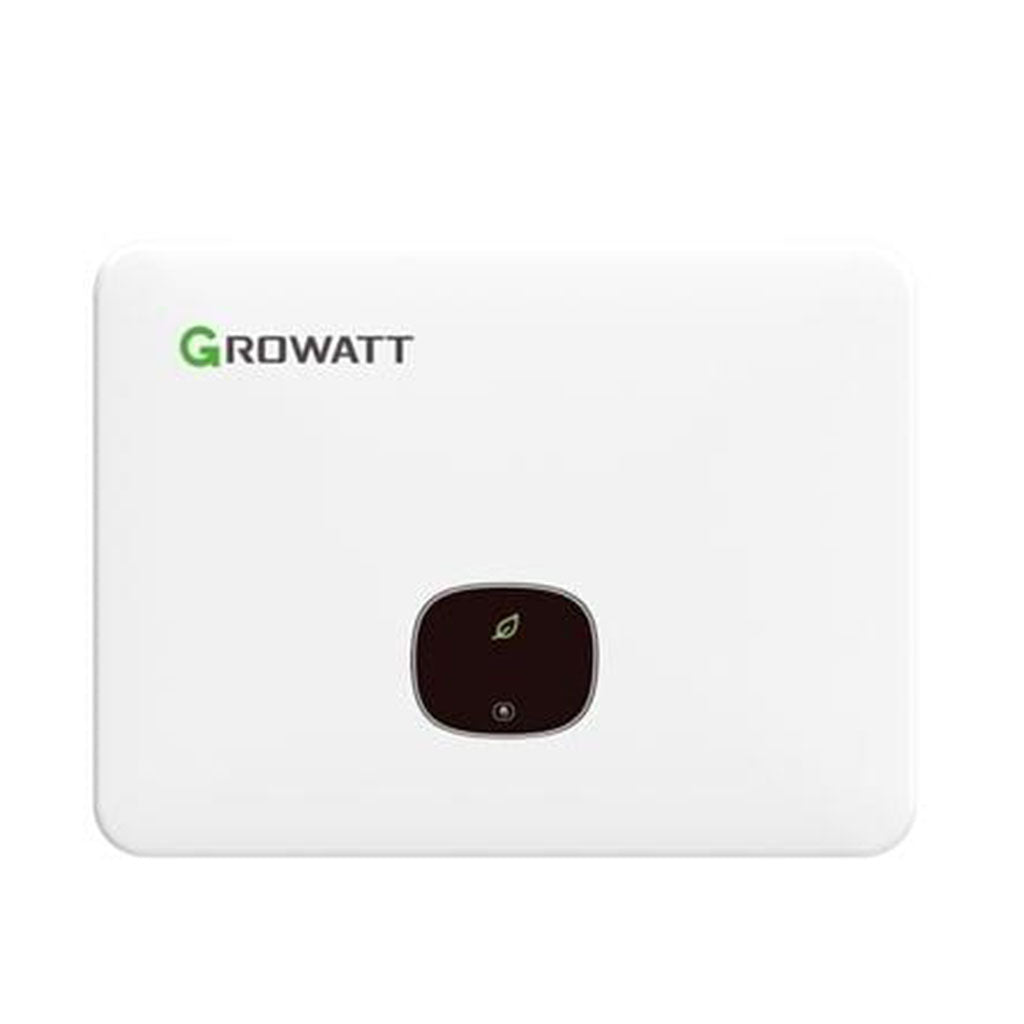

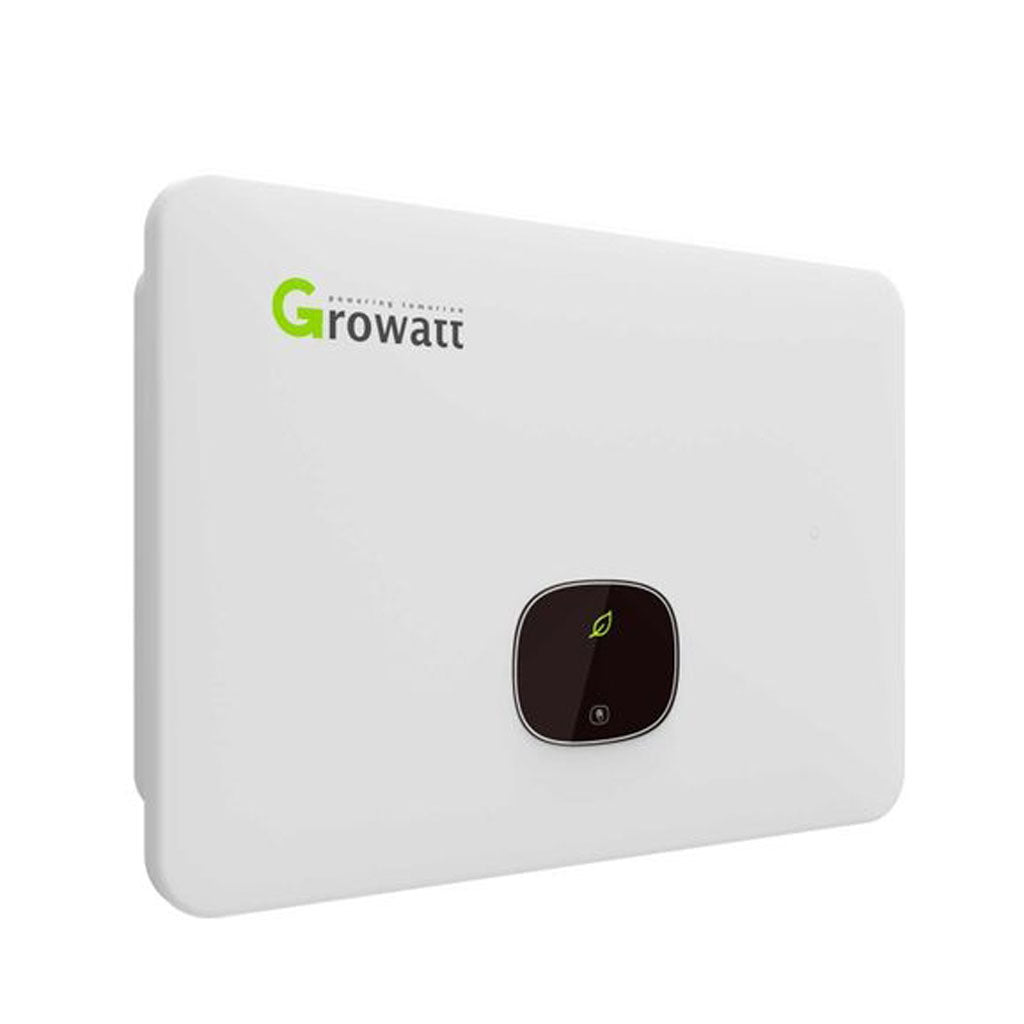

Growatt MID 40KTL3-X (with AFCI, type II SPD) Three Phase On Grid Inverter

The Growatt MID 40KTL3-X is a high-quality inverter that allows you to improve the efficiency and productivity of your photovoltaic system. It has a maximum efficiency of 98.8%. As a result, maximum energy yield is achieved with your solar panel system. In addition, it has Type 2 overvoltage protection (AC and DC side. It has self-consumption monitoring and an optional AFCI function, it also has a touch button and OLED display that make it even easier to configure and control. Operating temperature -25 °C – +60 °C

Safety and reliability
– Type II SPD on DC and AC sides
– Degree of protection IP66
– AFCI function optional

Technical Specifications - Datasheet - Growatt MID 25~40KTL3-X Datasheet
Installation guide MID 17-40KTL3-X user manual
Certificates: MID 25-40KTL3-X CE VDE 0126-1-1 (1);
MID 25-40KTL3-X CE LVD;
MID 25-40KTL3-X CE LVD

• Connection type – three-phase
• Efficiency – 98.8% max. efficiency, 98.5% European efficiency
• Power W- 60,000 W
• Indicators – OLED+LED
• Type of cooling – Smart air cooling
• Operating temperature -25 °C – +60 °C
• Interface – RS485, USB; Optional: WiFi, GPRS, RF, LAN
• Dimensions (W, L, H), mm – 580 x 435 x 230 mm
• Weight, kg – 30.5 kg
• Degree of protection – IP66

Additional information

Documentation

• Growatt MID 25~40KTL3-X Datasheet
• MID 17-40KTL3-X user manual
• MID 25-40KTL3-X CE VDE 0126-1-1 (1)
• MID 25-40KTL3-X CE LVD
• MID 25-40KTL3-X CE LVD
