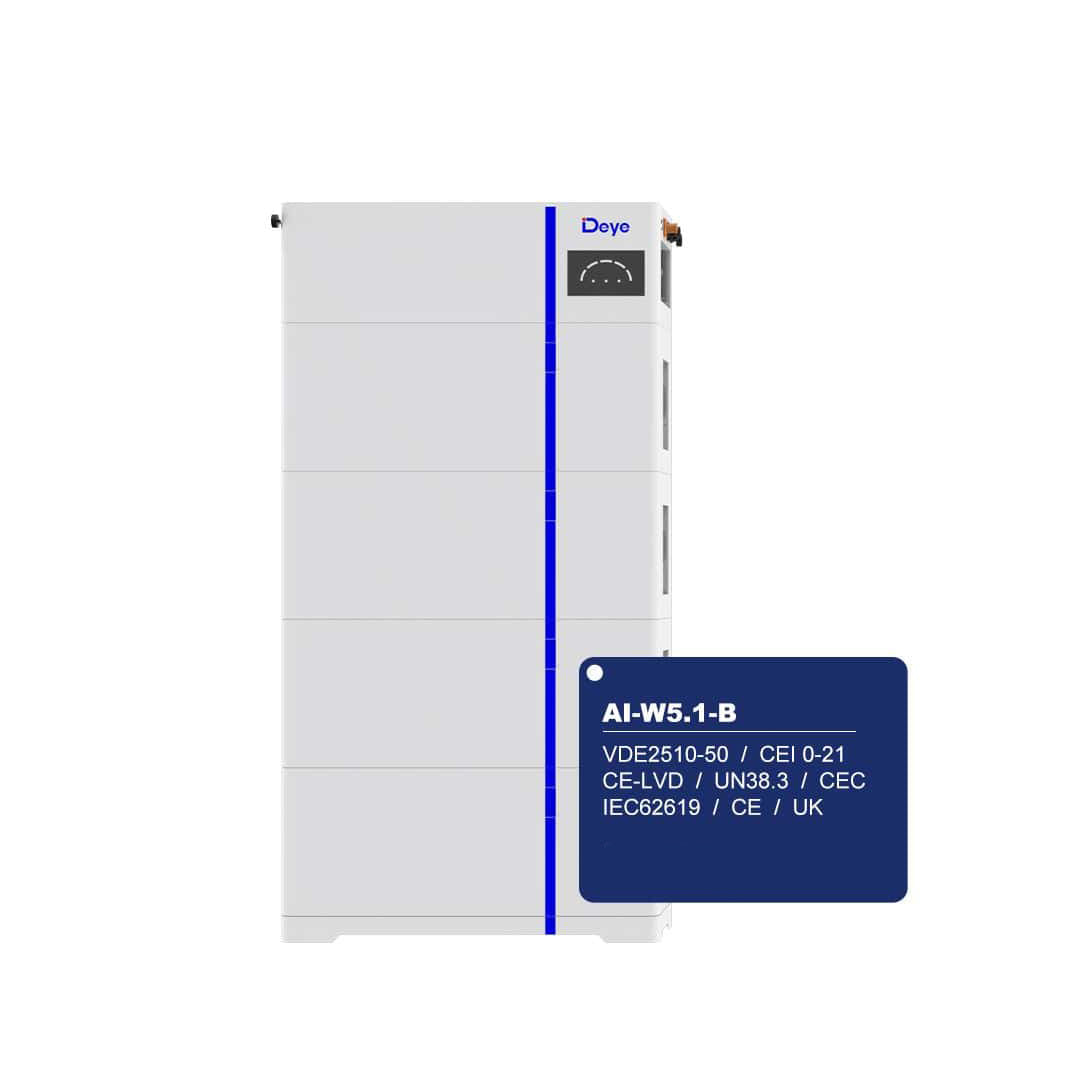

DEYE AI-W5.1-B - Energy storage battery 5.12 kWh (low voltage, with cables)

AI-W5.1-Bis an innovative and modular lithium-iron-phosphate (LiFePO4) battery designed for home and commercial photovoltaic systems. Suitable for low-voltage solutions, it combines high reliability, scalability and exceptional safety. Includescommunication and power cablefor direct integration.

Main Specifications:

• Capacity: 5.12 kWh nominal, 4.6 kWh usable (up to 90% DoD)

• Tension: Nominal – 51.2V; Operating range – 44.8V to 57.6V

• Rated power: 2.5 kW (continuous), peak – 100A for 10 sec.

• Life cycle: above6000 cyclesup to 70% residual capacity

• Dimensions: 720 × 255 × 300 mm |Weight: 55 kg

• IP rating: IP65 – dust and water resistant, suitable for outdoor installation

Eco and safe choice:

• ✅ Battery without cobalt -non-toxic, sustainable and fully recyclable

• ✅ Supports an environmentally friendly way of storing energy without harmful compounds

Smart Features:

• Built-in BMS (Battery Management System)monitors, protects and extends battery life

• ️ Reliable operation in a temperature range of-20°C to +55°C

• Opportunity forparallel connection of up to 6 modules– capacity up to 30.72 kWh

• ️ Support ofremote monitoringandfirmware updates

Why choose the AI-W5.1-B model?

• Flexible configuration – you expand the capacity according to your needs

• Suitable forconnecting to hybrid inverters and solar systems

• High reliability in autonomous and backup power systems

• Suitable for bothhome use, and forlarger installations

Warranty:

10 year warranty, providing a long-term investment with high returns

 Product code: AI-W5.1-B 10100102000012
 Category: Energy Storage Batteries (ESS), Low Voltage (LV) Series
Includes:Communication cable + Power cable
