DEYE High Voltage Energy Storage System – 80KW Three Phase Hybrid Inverter + LiFePO₄ HV Battery BOS-A + PDU Control Module + Rack11 Mounting System

DEYE High Voltage Energy Storage System – 80KW Hybrid energy system with LiFePO₄ battery and PDU control module

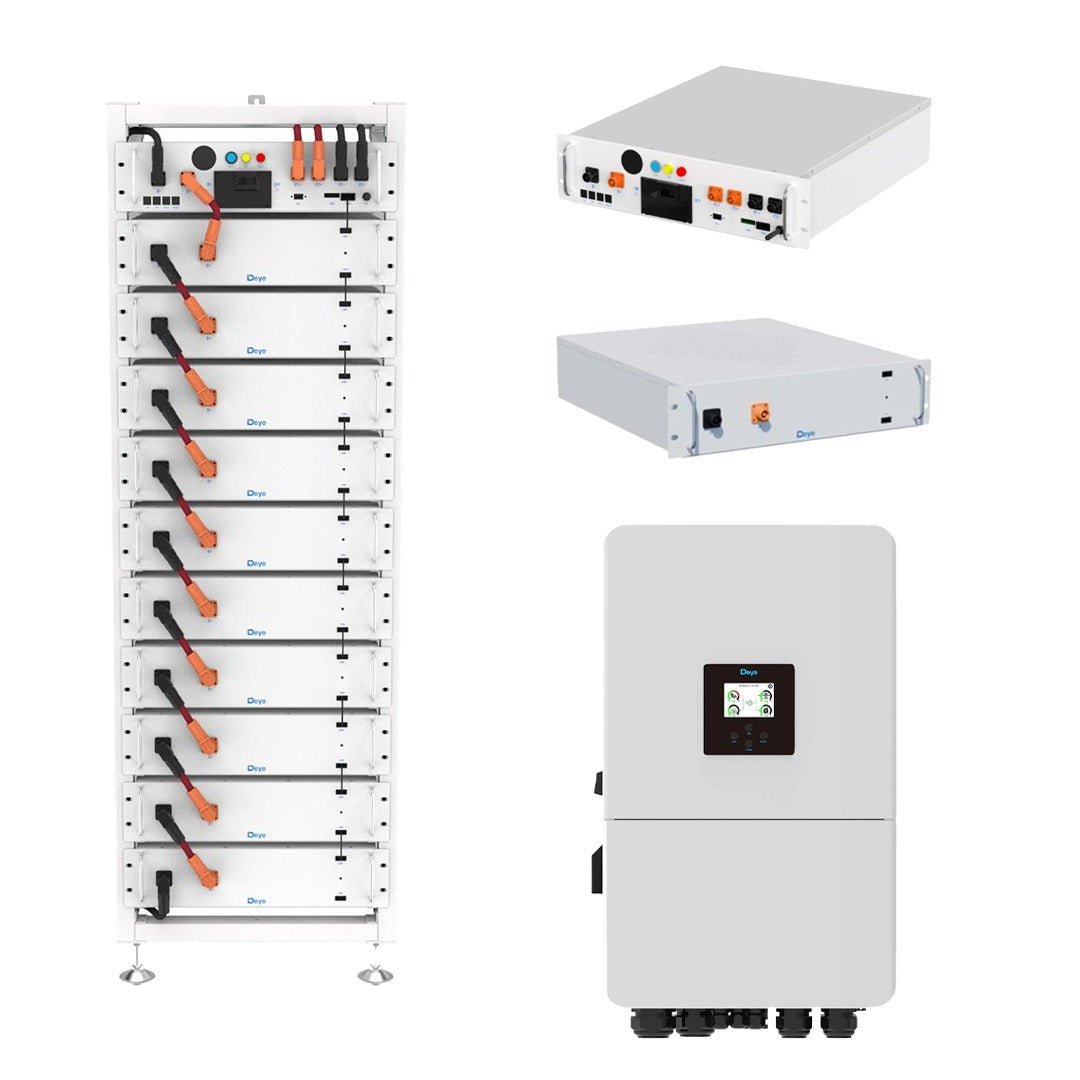

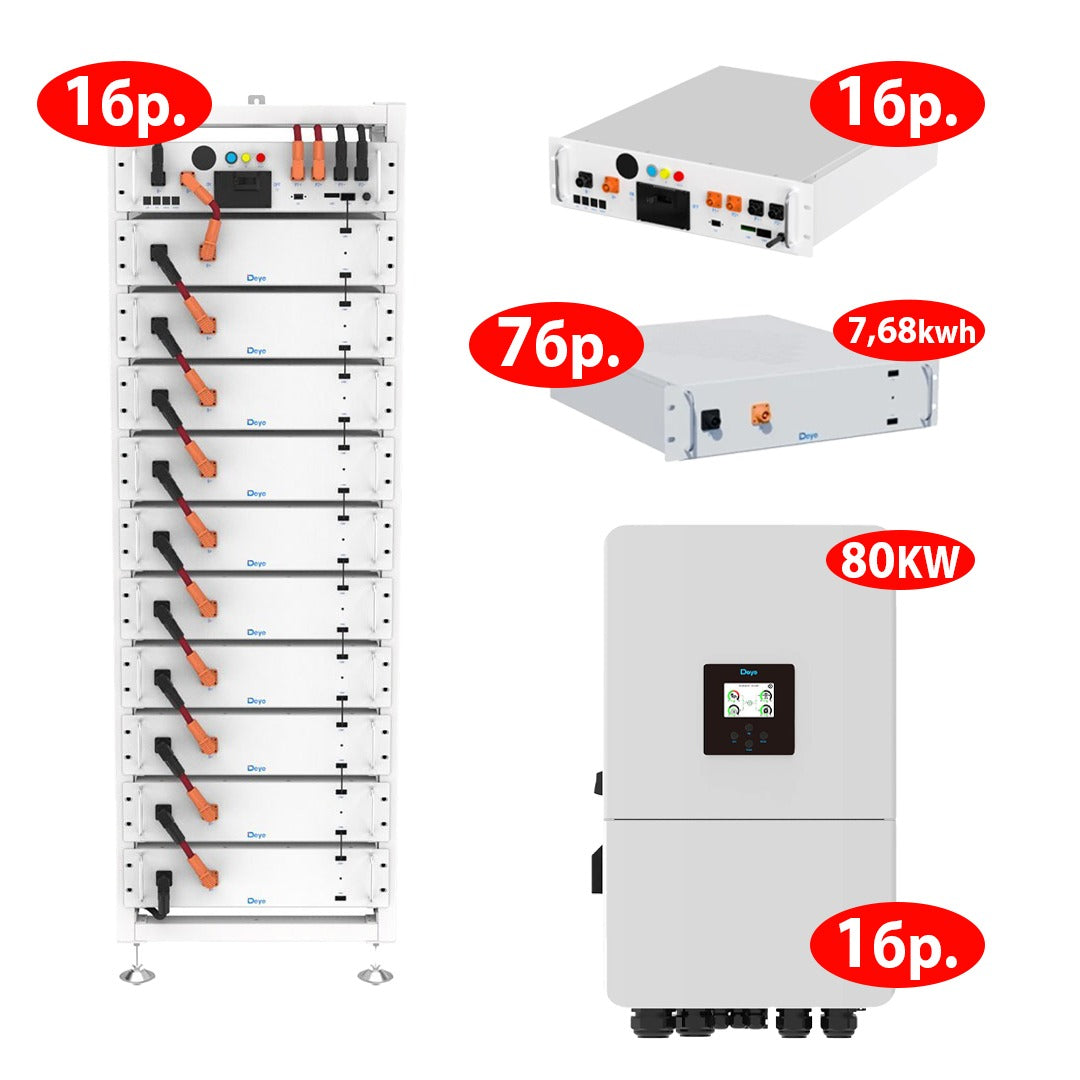

The set includes:

1️⃣ DEYE Three Phase Hybrid Inverter – 80KW | High Voltage | Wi-Fi | AFCI | 10-year warranty - 1 pc.
2️⃣ DEYE BOS-A LiFePO₄ HV Battery Module – 7.68 kWh | 51.2 V| 1.5C | 6000 cycles – 7 pcs.
3️⃣ DEYE BOS-A PDU (Power Distribution Unit) – Control Module | 1000V | 160A – 1 pc.
4️⃣ DEYE BOS-A Rack11 - Battery rack for HV system - 1pc.

1️⃣ DEYE Three Phase Hybrid Inverter – 80KW | High Voltage | Wi-Fi | AFCI | 10 year warranty

Technical parameters

• Model: SUN-80K-SG01HP3-EU-BM3 | High Voltage Hybrid Inverter

• AC output power: 80 000 W

• Maximum PV Power:up to 104,000 W

• MPPT trackers:4 independent MPPT channels

• Input voltage PV: 180 – 1000 V

• Rated DC Voltage: 620 V

• Maximum Input Current / MPPT: 36 A / 44 A

• Battery Type:LiFePO₄ HV (only compatible with BOS-A HV batteries)

• Battery voltage range: 200 – 800 V

• Maximum charge/discharge current: 160 A

• Efficiency:up to 98.6%

• Operating temperature:-25°C to +60°C

• Degree of protection:IP65 (for outdoor installation)

• Communications: RS485 / CAN / WiFi / LAN / DRM / Dry Contact

Functions

• AFCI protection (Arc Fault Circuit Interrupter)

• Zero Export and Smart Load Control support

• Parallel operation of up to 16 inverters (up to 1.28 MW in total)

• Power priority management (Battery / Grid / Load)

• 7″ color touch display + online monitoring via Deye Cloud App

2️⃣ DEYE BOS-A LiFePO₄ HV Battery Module – 7.68 kWh | 51.2 V| 1.5C | 6000 cycles

Technical parameters

• Type:High voltage lithium iron phosphate battery (LiFePO₄)

• Model: BOS-A Pack 7.68kWh

• Rated capacity: 7.68 kWh

• Rated voltage: 48V

• Max. charge/discharge rate: 1.5C

• Cell configuration: 15S LiFePO₄

• Life:over 6000 cycles at 90% DOD

• Efficiency: ≥ 95%

• Temperature range:

  • Charge: 0°C ~ +55°C

  • Discharge: –20°C ~ +60°C

• Dimensions: 480 × 620 × 160 mm

• Weight: ~65 kg

• Interface: CAN / RS485

• Degree of protection: IP20

• Installation:vertical in BOS-A Rack system

Extensibility

• Up to 4 systems in parallel → up to 337.9 kWh in total

Warranty:10 years

3️⃣ DEYE BOS-A PDU (Power Distribution Unit) – Control Module | 1000V | 160A

Functions and parameters

• Input voltage:up to 1000 V DC

• Rated current: 160 A

• Purpose:Control, protection and communication between the HV battery modules and the inverter

• Built-in protections:DC breaker, fuses, contactor, BMS communication

• Degree of protection: IP20

• Interfaces: CAN / RS485

• Installation:at the top of the battery rack

• Temperature range:-20°C to +60°C

• Warranty:5 years

4️⃣ DEYE BOS-A Rack11 – Battery rack for HV system

Parameters

• Capacity:Up to 11 BOS-A battery modules (up to 84.48 kWh)

• Construction:Steel frame, anti-corrosion coating

• Integration:Compatible with BOS-A PDU and DEYE HV inverters

• Installation:modular, vertical type

• Dimensions: ~2000 × 700 × 600 mm

• Cooling:passive (natural convection)

Key benefits of the system

• Intelligent high voltage architecture (HV 1000V/160A)– minimal losses and high efficiency.

• Modular structure– flexibility in upgrading to megawatt systems.

• High safety– LiFePO₄ cells with multi-level protection against overvoltage, short circuit and overheating.

• Intelligent energy management– automatic balancing between PV, battery and grid.

• Zero Export and Smart Load Control– dynamic load control and power supply priority.

• WiFi and LAN monitoring– full online control via Deye Cloud App.

• Parallel work– for commercial and industrial applications.

• High system efficiency:up to 97% (AC–DC–AC).

Guarantees

• Inverter:10 years

• Battery:10 years or ≥6000 cycles

• PDU and Rack:5 years

Certificates

• CE / IEC 62619 / IEC 62040 / IEC 60730 / UN38.3

• ISO 9001 / ISO 14001 / ISO 45001

• TÜV, RoHS, MSDS

DEYE High Voltage Energy Storage Systemisa smart, scalable and reliable solutionforhigh voltage energy storage.
Thanks to80KW three phase hybrid inverter, LiFePO₄ HV batteries BOS-AandPDU control module, the system providesmaximum efficiency, safety and stabilitywhen working inindustrial, commercial and large photovoltaic installations.

We inform you that, despite our efforts, we cannot guarantee that the published information and photos do not contain inaccuracies or errors that cannot be a legal basis for claims.

System composition

✅ Inverter:DEYE 80KW three-phase high-voltage hybrid inverter - 1pc.
✅ Battery:DEYE BOS-A LiFePO₄ HV Battery Pack – 7.68kWh (expandable) – 7 pcs.
✅ Control module:BOS-A PDU (Power Distribution Unit) – 1000V / 160A – 1 pc.
✅ Cancer system:BOS-A Rack11 – for safe and stable mounting of the HV battery modules – 1pc.
