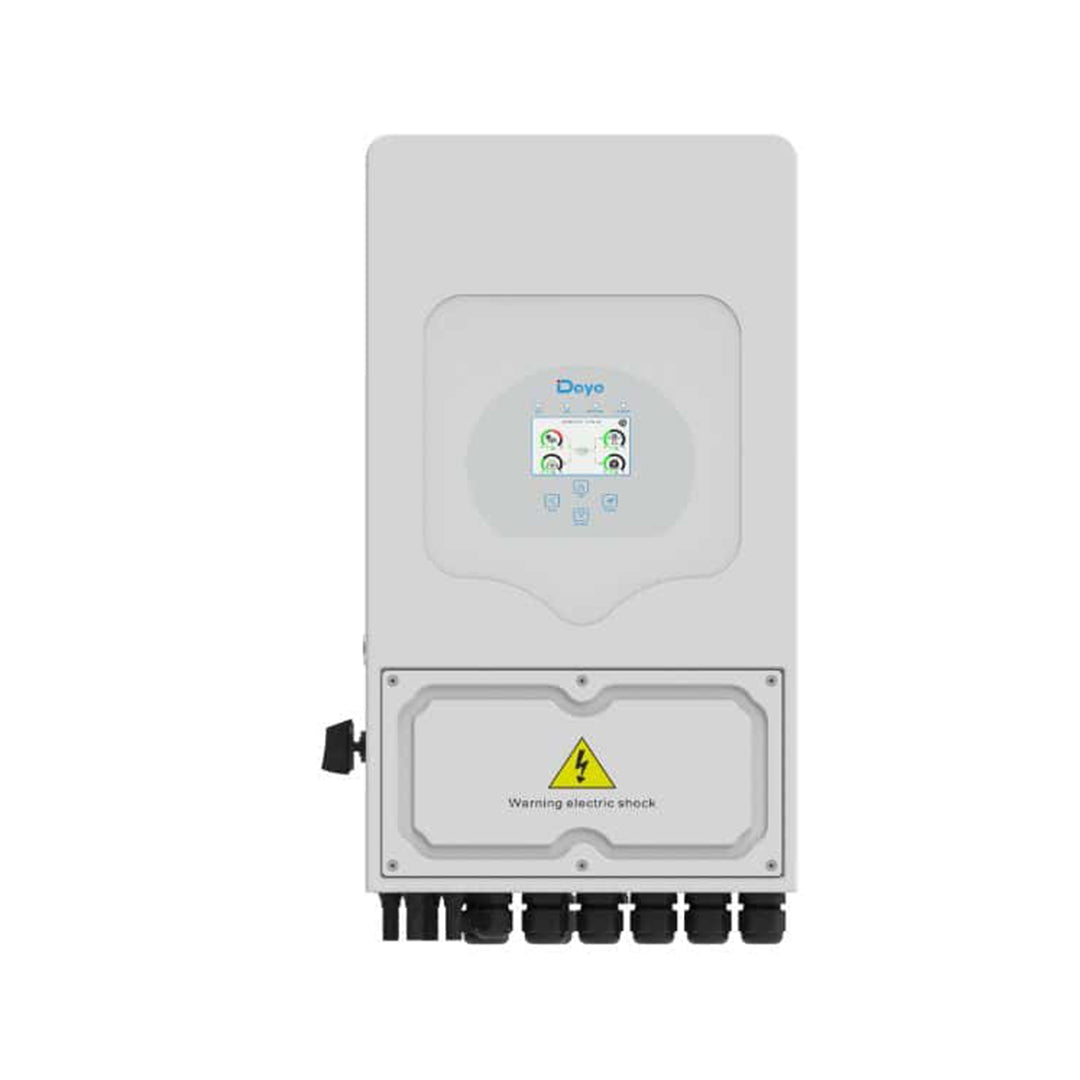

DEYE SUN-5K-SG05LP1-EU-AM2-P – Hybrid Single Phase Inverter | 5 kW | 48V Low Voltage | 2 MPPT | Wi-Fi | 10 year warranty

DEYE SUN-5K-SG05LP1-EU-AM2-Pis a single-phase low-voltage hybrid inverter designed for modern home systems with a 48V battery. It combines operation with PV panels, grid, battery and generator, providing optimal energy control around the clock.

Thanks tothe two independent MPPT trackers, the wide PV range and the high power of 10 kW PV input, the inverter achieves excellent performance even in complex roof configurations.

The intelligent management platform, the large charging current, the AC-coupling functionality and the possibility ofup to 16 parallel invertersmake the model suitable for both new installations and upgrading existing systems.

IP65 housing, low noise, built-in protections and an extended 10-year warranty guarantee a long and reliable service life.

Construction and interfaces

Degree of protection:IP65 (suitable for outdoor installation)
Dimensions: 330 × 580 × 232 mm
Weight: 24.9 kg
Cooling:Intelligent air cooling
Operating temperature:–40°C ~ +60°C (derating above +45°C)
Humidity: 0–100 %
Installation height:up to 2500 m
Noise: <30 dB
Topology:Non-isolated inverter
Communications: RS485 / RS232 / CAN
Monitoring:WiFi / GPRS / Bluetooth / 4G / LAN (optional)

Key benefits

Color touch LCD display
IP65 housing – resistant to external conditions
AC-coupling – suitable for upgrading existing systems
Support of up to 16 inverters in parallel (on-grid and off-grid)
Support for multiple parallel batteries
Maximum charge/discharge current: 120 A
6 programmable charge/discharge periods
Ability to work with a diesel generator
Smart Load / Backup power supply

Protect

DC Reverse Polarity Protection
AC Output Overcurrent Protection
AC Output Overvoltage Protection
AC Short-Circuit Protection
Thermal Protection
DC Component Monitoring
Arc Fault Circuit Interrupter (option)
Anti-islanding
Insulation Resistance Monitoring
Residual Current Detection (RCD)
Built-in DC Switch
SPD Type II (AC & DC)

Summary

Power: 5 kW
MPPT: 2
PV input: 10 kW
Battery: 48V Low Voltage (120 A charge/discharge)
Monitoring:WiFi on
Parallel operation:up to 16 inverters
Warranty:10 years

Efficiency

Maximum efficiency: 97.6 %
European efficiency: 96.5 %
MPPT efficiency: >99 %
DC injection current: <0.5 %

We inform you that, despite our efforts, we cannot guarantee that the published information and photos do not contain inaccuracies or errors that cannot be a legal basis for claims.

Technical characteristics

PV parameters

✅ Maximum PV Power: 10 000 W
✅ Maximum PV Voltage: 500 V
✅ Starting voltage: 125 V
✅ MPPT operating range: 150 – 425 V
✅ Nominal PV voltage: 370 V
✅ MPPT trackers: 2
✅ PV inputs: 2 + 2
✅ Maximum PV Current (per MPPT): 25 A / 25 A
✅ Maximum Short Circuit Current (Isc): 27 A + 27 A

Battery (48V – Low Voltage)

✅ Battery Type: Li-ion / Lead-acid
✅ Operating voltage: 40 – 60 V
✅ Maximum charging current: 120 A
✅ Maximum discharge current: 120 A
✅ BMS communication: RS485 / CAN
✅ Automatic adaptation to Li-ion BMS
✅ Number of battery inputs: 1

AC parameters

✅ Rated AC power: 5 000 W
✅ Maximum hardware power: 5 500 VA
✅ Rated AC current: 25 / 23.9 A
✅ Maximum AC current: 22.7 / 21.7 A
✅ Maximum AC bypass (mains → load): 35 A
✅ Peak off-grid load:2× rated power for 10 sec
