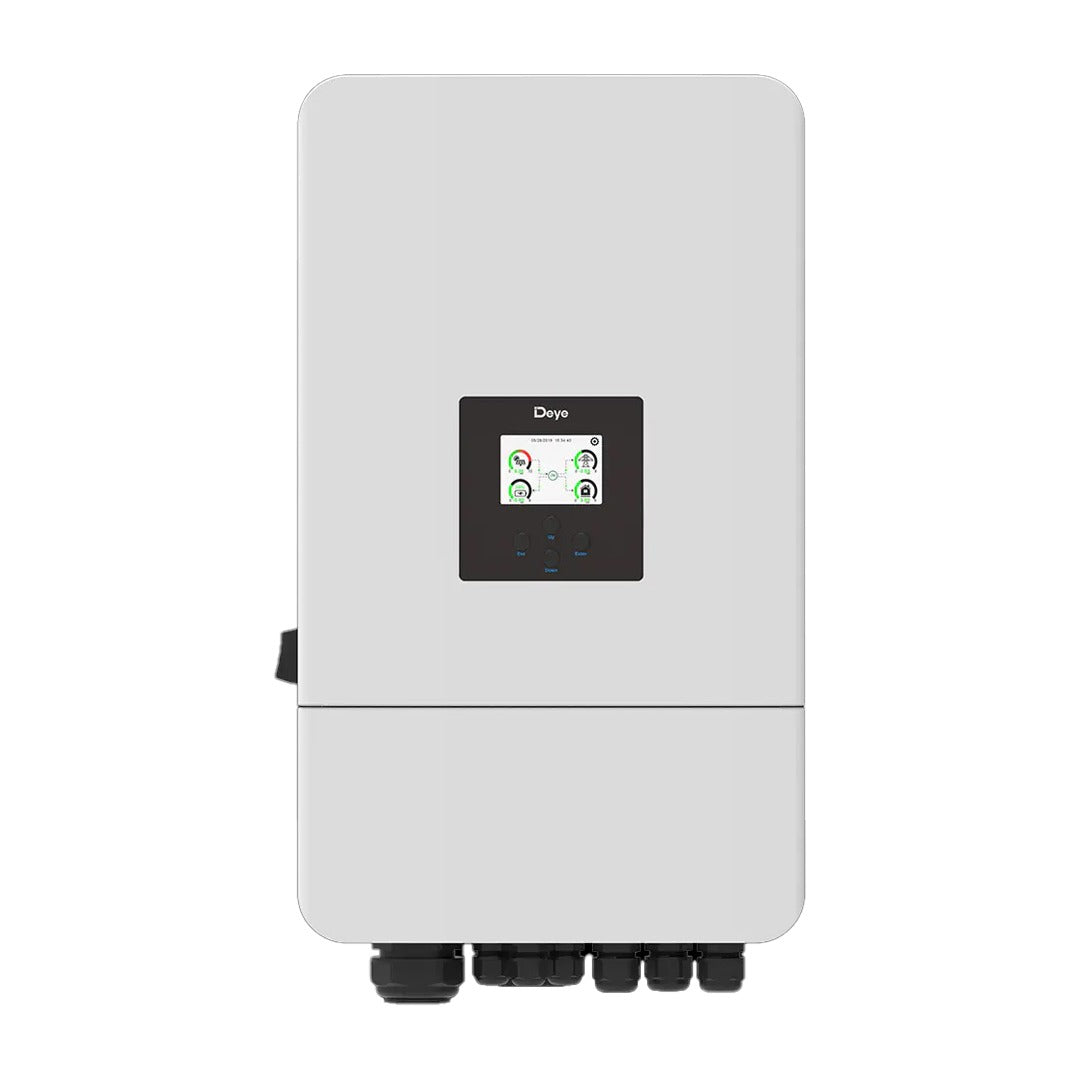

DEYE SUN-8K-SG05LP1-EU – Hybrid Single Phase Inverter | 8 kW | Low Voltage 48V | 2 MPPT | Wi-Fi | 10 year warranty

DEYE SUN-8K-SG05LP1-EUis a highly efficient single-phase hybrid inverter designed for modern solar systems with48V low voltage batteries. Thanks to the powerful hybrid architecture, the device simultaneously manages the energy fromThe PV panels, the grid, the battery and the generator, providing maximum flexibility and reliability.

The two highly efficient MPPT trackers guarantee optimal yield in all conditions, and the Zero Export function allows limiting excess energy to the grid.
The inverter supports parallel operation of up to 16 devices, making it suitable for systems from small to large capacities.

With a durable IP65 housing, intelligent air cooling and built-in WiFi monitoring, the model guarantees long-term and trouble-free operation.

Construction and design

Body:Aluminum + non-flammable ABS protection
Degree of protection:IP65 – suitable for outdoor installation
Cooling:Intelligent air cooling
Display:4.3” color LCD
Communications:WiFi (included), USB, RS485, CAN
Dimensions: 330 × 580 × 232 mm
Weight: 24.9 kg

Key benefits

Hybrid operation: PV + Grid + Battery + Generator
Zero Export mode
Parallel operation of up to 16 inverters (up to 128 kW)
UPS function - switching under 10 ms
AC-Coupling for compatibility with existing systems
6 programmable charge/discharge periods
Smart Load management
High efficiency up to 97.6 %
Low noise below 30dB

️ Protection and safety

 DC & AC SPD Type II
AFCI (option)
Overload protection
Reverse polarity protection
 Anti-Islanding
Built-in temperature and RCD protection

Guarantees

✅ 10 year warranty
✅ CE • IEC • EMC certification

Summary

✅ Power: 8 kW
✅ Battery: 48V Low Voltage
✅ MPPT:2 high performance trackers
✅ Features: Zero Export, Smart Load, UPS
✅ Monitoring:WiFi on
✅ Warranty:10 years

These are just some of the main features of the Hybrid Single Phase InverterDEYE SUN-8K-SG05LP1-EU. Before deciding to purchase this product, we recommend that you conduct additional research and consultation with solar professionals to ensure that it meets your specific needs and requirements.

We inform you that, despite our efforts, we cannot guarantee that the published information and photos do not contain inaccuracies or errors that cannot be a legal basis for claims.

Technical characteristics:

PV parameters

✅ Input Type:Solar (PV)
✅ Maximum PV Power: 16 000 W
✅ MPPT trackers: 2
✅ PV inputs:4 (2 per MPPT)
✅ Maximum PV Voltage: 550 V
✅ MPPT operating range: 150 – 425 V
✅ Nominal PV voltage: 370 V
✅ MPPT Maximum Current: 26 A + 26 A
✅ Maximum Short Circuit Current (Isc): 34 A + 34 A

Battery (48V – Low Voltage)

✅ Battery Type: LiFePO₄ / AGM / GEL
✅ Rated voltage: 48 V
✅ Operating voltage: 40 – 60 V
✅ Maximum charging current: 190 A
✅ Maximum discharge current: 190 A
✅ Communication with BMS: RS485 / CAN
✅ Automatic battery detection

AC parameters

✅ Rated AC power: 8 000 W
✅ Maximum hardware power: 8 800 VA
✅ Rated AC current: 36.4 A
✅ Maximum AC current: 38.3 A
✅ Output voltage: 220/230 V (1Ph)
✅ Frequency: 50 / 60 Hz
✅ AC bypass current:up to 40 A
