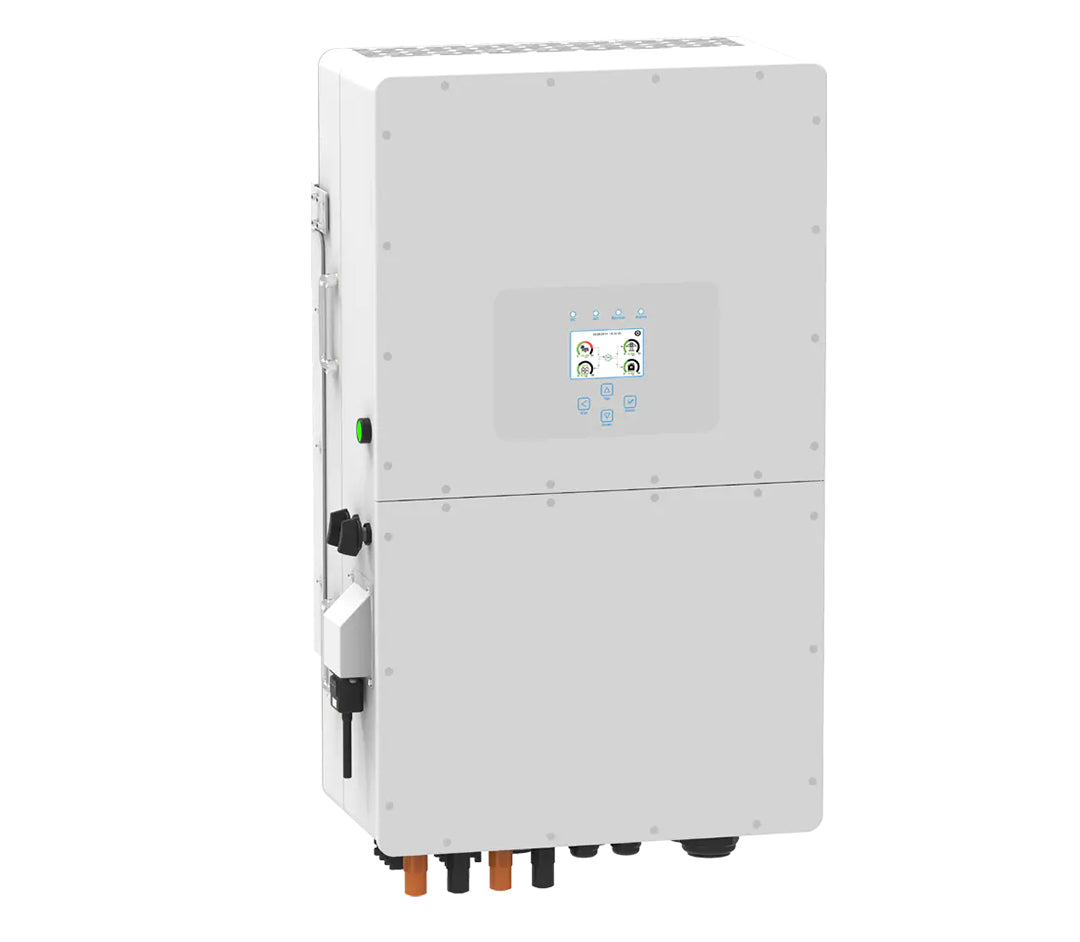

DEYE SUN-8K-SG05LP1-EU-AM2-P – Hybrid Single Phase Inverter | 8 kW | 48V Low Voltage | 2 MPPT | Wi-Fi | 10 year warranty

DEYE SUN-8K-SG05LP1-EU-AM2-Pis a powerful low-voltage single-phase hybrid inverter combining operation with PV panels, grid, battery and generator.
With two high-efficiency MPPT trackers, a wide PV range and a large charging current of190 A, the model offers high performance and maximum flexibility in energy management.

The inverter supportsZero Export, Smart Load, AC-coupling andup to 16 parallel devices, making it an excellent choice for both new hybrid systems and retrofitting existing ones.

With an IP65 housing, low noise, intelligent cooling and a 10-year warranty, the SUN-8K-SG05LP1-EU-AM2-P is a reliable solution for long-term operation in various climatic conditions.

Efficiency

Maximum efficiency: 97.6 %
European efficiency: 96.5 %
MPPT efficiency: >99 %
THDi: <3 %
DC injection current: <0.5 %

Construction and interfaces

Degree of protection:IP65 (for outdoor installation)
Dimensions: 330 × 580 × 232 mm
Weight: 24.9 kg
Cooling:Intelligent air cooling
Operating temperature:–40°C ~ +60°C (derating above +45°C)
Humidity: 0–100 %
Installation height:up to 2500 m
Noise: <30 dB
Topology:Non-isolated inverter
Communications: RS485 / RS232 / CAN
Monitoring:WiFi / GPRS / Bluetooth / 4G / LAN (optional)

Key benefits

Color touch LCD display
IP65 housing - weather resistant
AC-coupling – ideal for upgrading existing systems
Parallel work to16 inverters(on-grid and off-grid)
Support for multiple battery modules
High charge/discharge current:190 A
6 programmable charge/discharge periods
Ability to work with a diesel generator
Smart Load / Backup power supply

Protect

 DC Reverse Polarity Protection
 AC Output Overcurrent Protection
 AC Output Overvoltage Protection
 AC Short-Circuit Protection
 Thermal Protection
 DC Component Monitoring
Arc Fault Circuit Interrupter (option)
 Anti-islanding
 Insulation Resistance Monitoring
 Residual Current Detection
Built-in DC Switch
 SPD Type II (AC & DC)

Warranty

10 year warranty

We inform you that, despite our efforts, we cannot guarantee that the published information and photos do not contain inaccuracies or errors that cannot be a legal basis for claims.

Technical characteristics

PV parameters

✅ Maximum PV Power: 16 000 W
✅ Maximum PV Voltage: 500 V
✅ Starting voltage: 125 V
✅ MPPT operating range: 150 – 425 V
✅ Nominal PV voltage: 370 V
✅ MPPT trackers: 2
✅ PV inputs: 2 + 2
✅ Maximum PV Current (per MPPT): 26 A / 26 A
✅ Maximum Short Circuit Current (Isc): 34 A + 34 A

Battery (48V – Low Voltage)

✅ Battery Type: Li-ion / Lead-acid
✅ Operating voltage: 40 – 60 V
✅ Maximum charging current: 190 A
✅ Maximum discharge current: 190 A
✅ BMS communication: RS485 / CAN
✅ Automatic detection of Li-ion battery
✅ Number of battery inputs: 1

AC parameters

✅ Rated AC power: 8 000 W
✅ Maximum hardware power: 8 800 VA
✅ Rated AC current: 36.4 A
✅ Maximum AC current: 38.3 A
✅ Output voltage: 220/230 V (1Ph)
✅ Frequency: 50 / 60 Hz
✅ Maximum AC bypass (mains → load): 40 A
✅ Peak off-grid load:2× rated power for 10 sec
