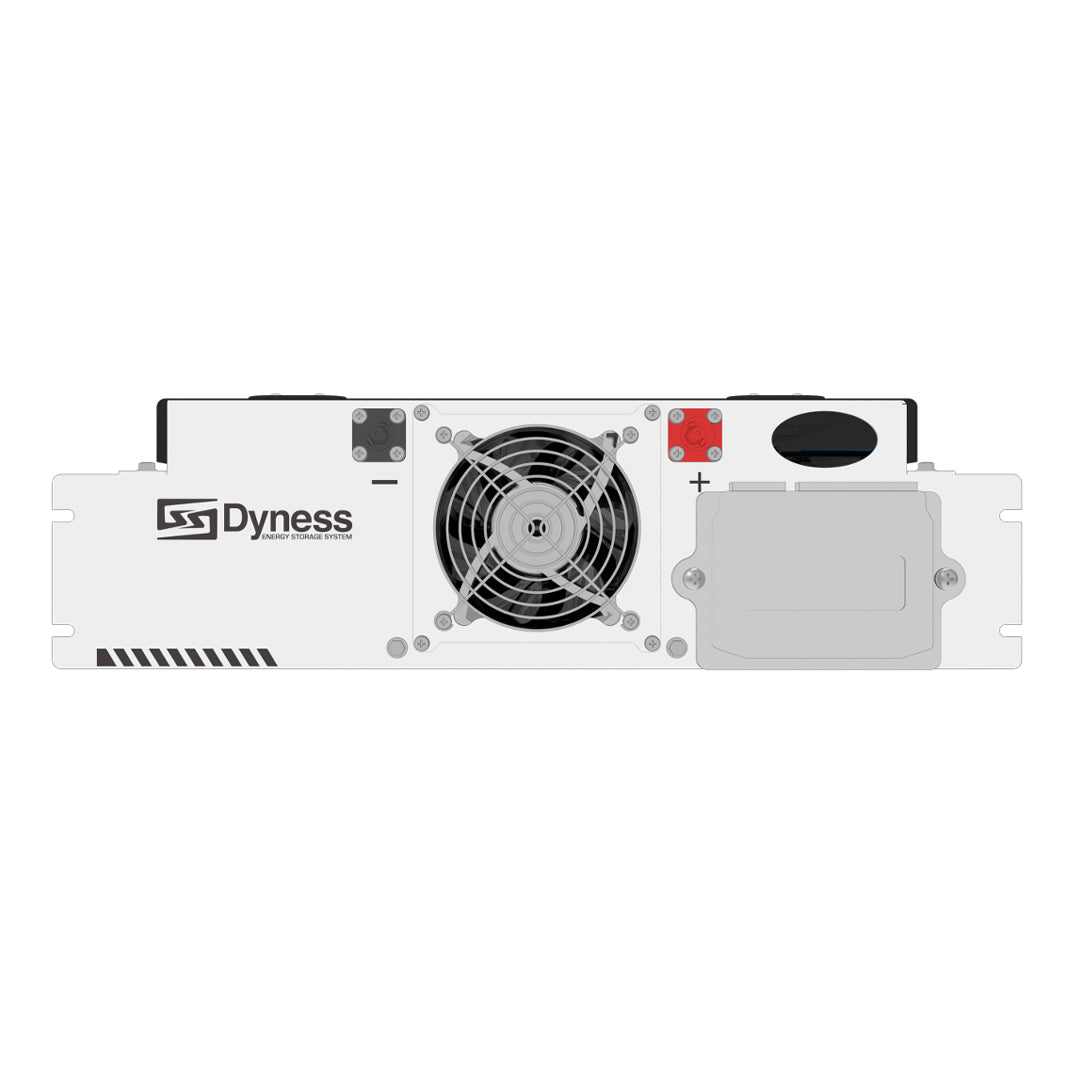

Dyness Battery module HV51100F HV, 51.2V 100AH, 5.12kWh

The Dyness HV51100F is a high voltage lithium iron phosphate (LiFePO4) battery module designed for use in energy storage systems. With a nominal voltage of 51.2V and a capacity of 100Ah, it provides an energy of 5.12 kWh.

Main features:

Nominal voltage: 51.2V
Capacity: 100Ah
Energy: 5.12 kWh
Maximum charge/discharge current: 100A (1C)
Dimensions: 548 x 554 x 152.8 mm
Weight: 47 kg
Communication: CAN/RS485
Degree of protection: IP20
Operating temperature when charging: 0°C to 55°C
Discharge operating temperature: -10°C to 55°C
Cycle life: over 6000 cycles at 95% depth of discharge

This module is compatible with BDU100 control module and can be configured in series of 7 to 15 modules, depending on system requirements. It is suitable for indoor use and is ideal for applications in commercial and industrial environments where reliable and efficient energy storage is required.
