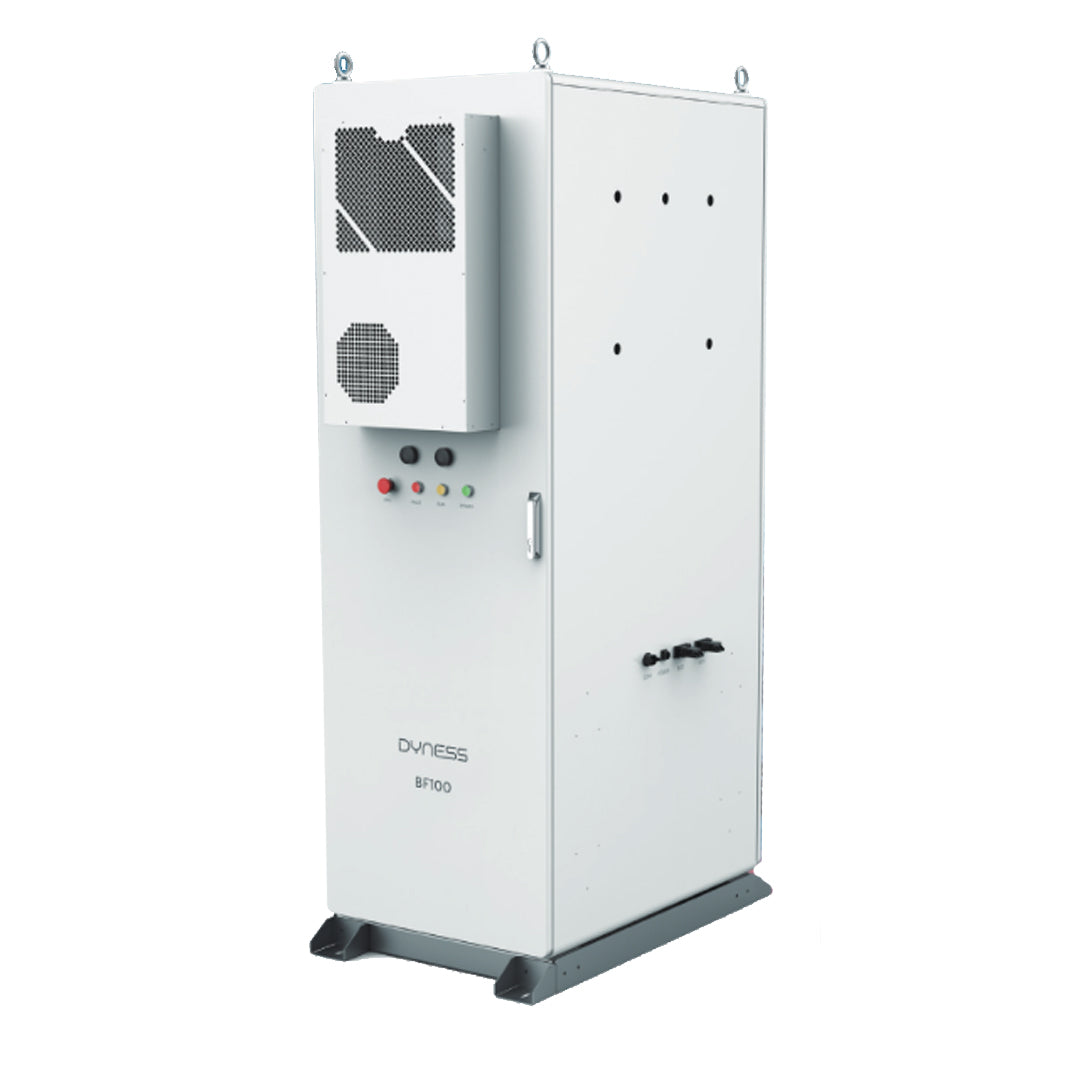

Dyness BF100-86kWh – High voltage energy storage system

Dyness BF100-86kWh ismodular high voltage battery system. With a capacity of86 kWhand rated voltage400V, it is ideal for industrial and commercial applications, providingbackup power, peak load management and solar energy storage.

Main features:

✔ Large capacity:86 kWh energy storage in one module
✔ Safety at the highest level:Built-in three-stage system forfire protectionandtemperature monitoring
✔ High efficiency: 93% efficiencythanks to intelligent charge and discharge management
✔ IP55 protection:Dust and moisture resistance for long-lasting use
✔ Flexibility and extensibility:Supports additional battery modules forincreasing capacity

Technical specifications:

• Battery Type:Lithium iron phosphate (LiFePO4)
• Battery capacity: 280 Ah
• Package Configuration: 1P16S
• Rated voltage: 400V
• Voltage Range: 278.4 – 345.6V
• Rated current: 140A (0.5C)
• Maximum current: 160A
• Dimensions (W x D x H): 725 × 1200 × 2258 mm
• Weight: ~1500 kg
• Cooling: Aerial
• Degree of protection: IP55
• Anti-corrosion protection: C3 (option for C5)
• Operating temperature: -20°C to +50°C
• Operating humidity: 0% – 95% (non-condensing)
• Noise level: <70 dB
• Altitude: Up to 3000 m (derating above 2000 m)
• Communication: Ethernet, RS485, CAN, USB
• Certifications: CE

Applications:

• Industrial and commercial enterprises– foroptimization of energy consumption
• Solar installations– forefficient energy storage
• Backup power supply– providescontinuity of operation during power outages
• Micro-grid solutions – flexible integration with renewable sources

The Dyness BF100-86kWh offers a reliable, highly efficient and safe energy storage solution that isdesigned for long-lasting performance and easy integrationin your energy system.
