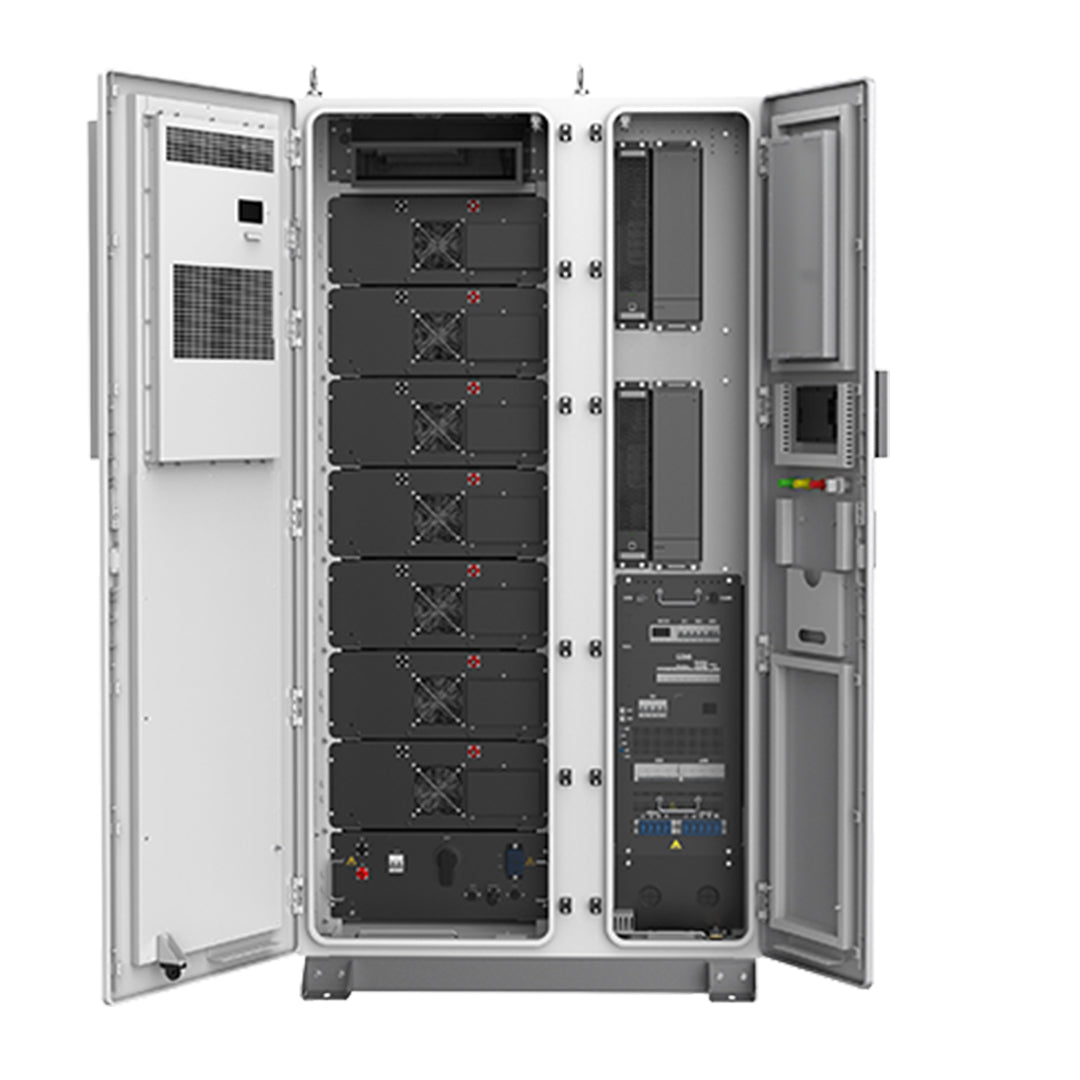

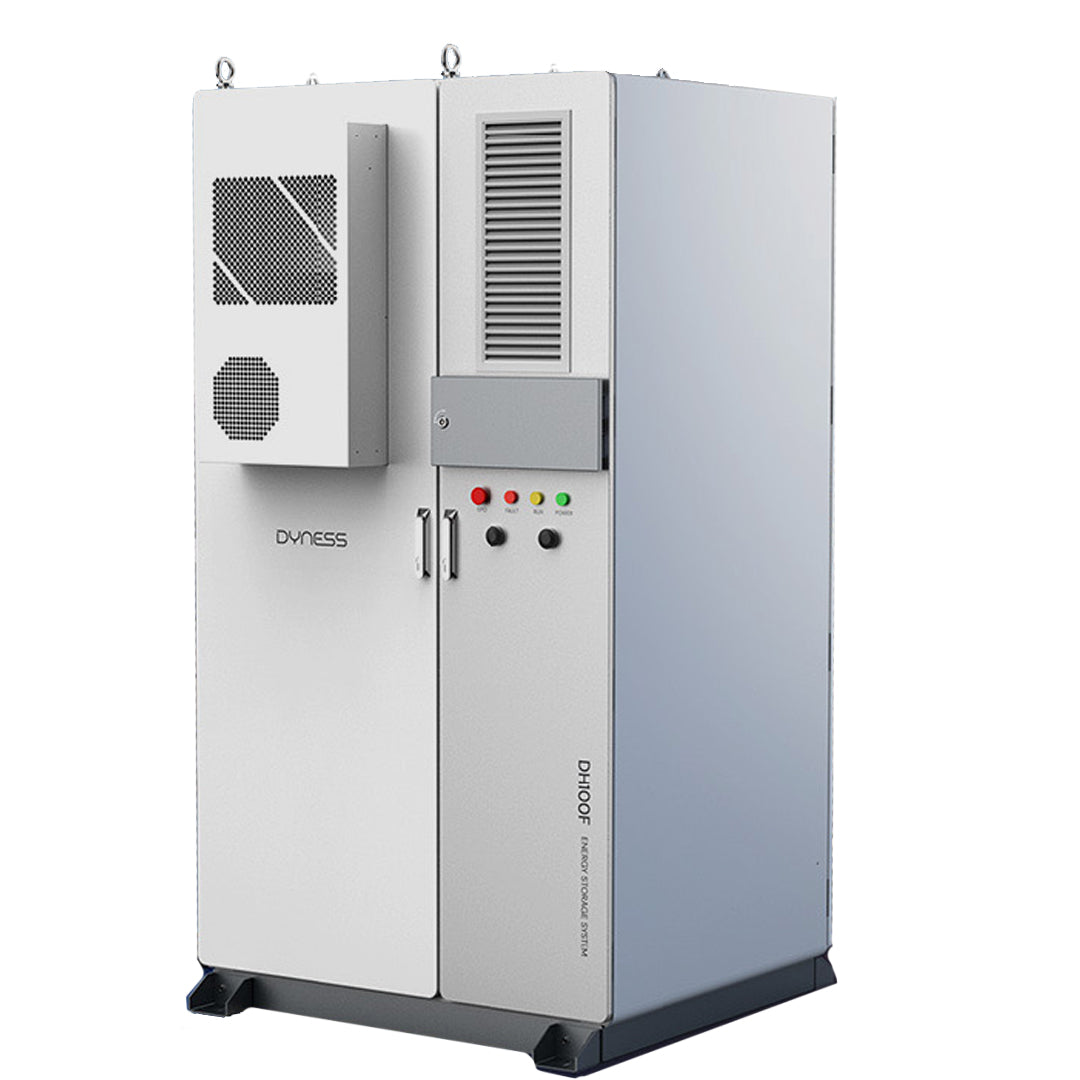

DYNESS DH100F-S00L01C100 – Highly reliable power system

DYNESS DH100F-S00L01C100 is a high performance integrated energy system designed for a variety of applications – from office parks and commercial buildings to charging stations and small industrial sites. It offers 100kWh capacity, 280Ah, 400V nominal voltage and IP55 degree of protection, which makes it resistant to external influences and suitable for working in different conditions.
Main features:

✅ Intelligent design - Supports access to photovoltaic (PV) systems and connection to the power grid (on-grid/off-grid switching).
✅ Flexible expansion – Supports parallel operation in both on-grid and off-grid modes.
✅ Safety and reliability - Three-level detection, active and passive explosion protection technology to prevent risks.
✅ Effective cooling - Equipped with fan cooling (Fan Cooling) for optimal operation and extended life of the system.
✅ Easy maintenance – Modular design that facilitates installation, maintenance and remote monitoring.
✅ Universal application – Covers the full spectrum of renewable energy scenarios, including PV systems, energy storage and diesel generator operation.
Technical specifications:

Battery: LiFePO₄ (Lithium Iron Phosphate)
Capacity: 100kWh
Discharge current: 140A (nominal), 160A (maximum)
Rated voltage: 400V
Operating temperature range: -20°C to 50°C
Cooling: Air cooling (Fan Cooling)
Degree of protection: IP55 – high resistance to dust and moisture
Communication: Ethernet / 4G / RS485
Certification: CE, TUV

Conclusion

DYNESS DH100F-S00L01C100 is the ideal solution for reliable and efficient management of energy resources. Thanks to its flexibility, scalability and safety, this system is an excellent choice for various applications, ensuring high efficiency and long battery life.

If you have additional questions or need specific information, don't hesitate to contact us!

We inform you that, despite our efforts, we cannot guarantee that the published information and photos do not contain inaccuracies or errors that cannot be a legal basis for claims.
DATASHEET/Technical characteristics DynessBF100SeriesdatasheetEN
Installation Manual DynessBF100UserManualV1.0202408ENxiudingban

DYNESS DH100F-S00L01C100 – Highly reliable fan-cooled power system

DYNESS DH100F-S00L01C100 is a high performance integrated energy system designed for a variety of applications – from office parks and commercial buildings to charging stations and small industrial sites.

Battery: LiFePO₄ (Lithium Iron Phosphate)
Capacity: 100kWh
Discharge current: 140A (nominal), 160A (maximum)
Rated voltage: 400V
Operating temperature range: -20°C to 50°C
Cooling: Air cooling (Fan Cooling)
Degree of protection: IP55 – high resistance to dust and moisture
Communication: Ethernet / 4G / RS485
Certification: CE, TUV
