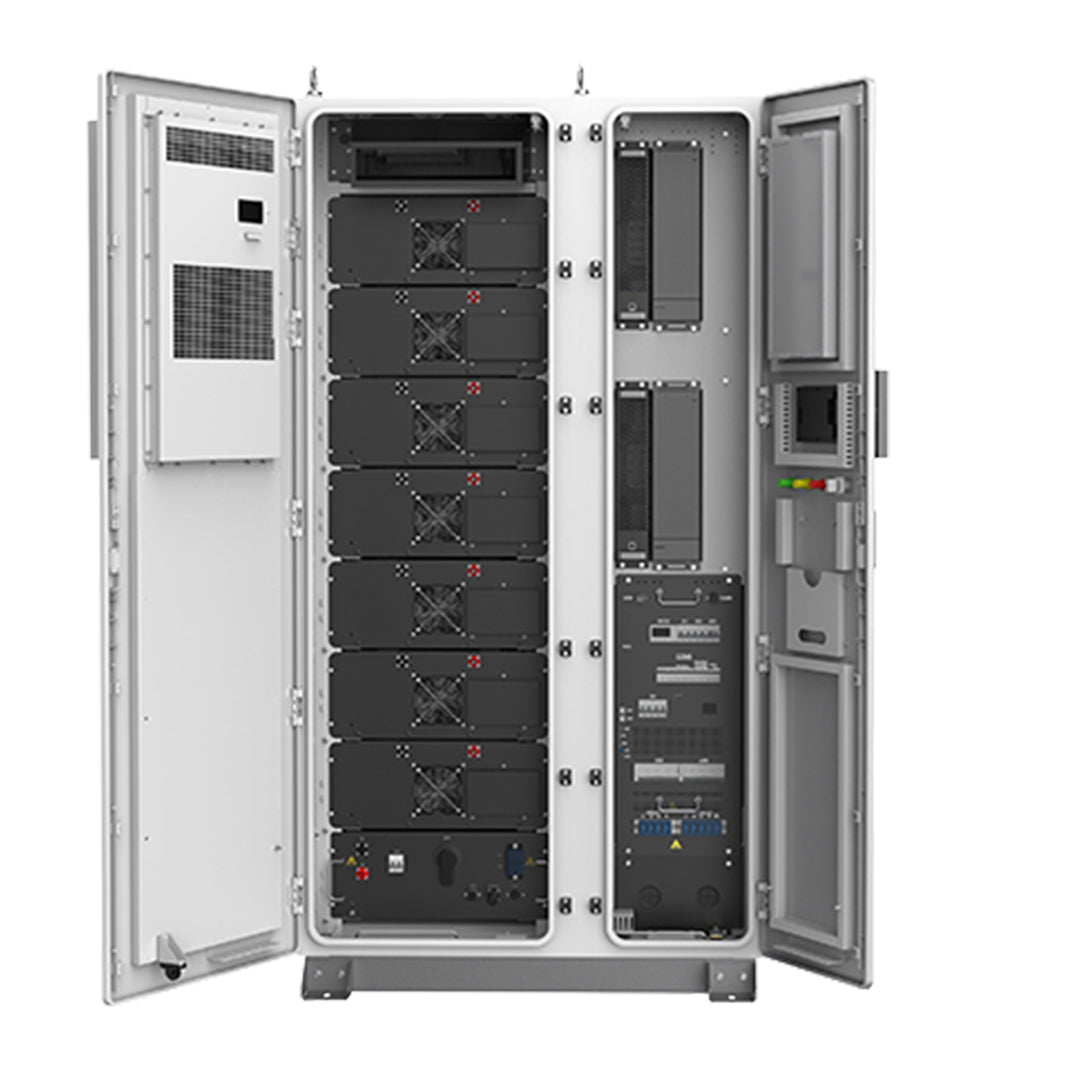

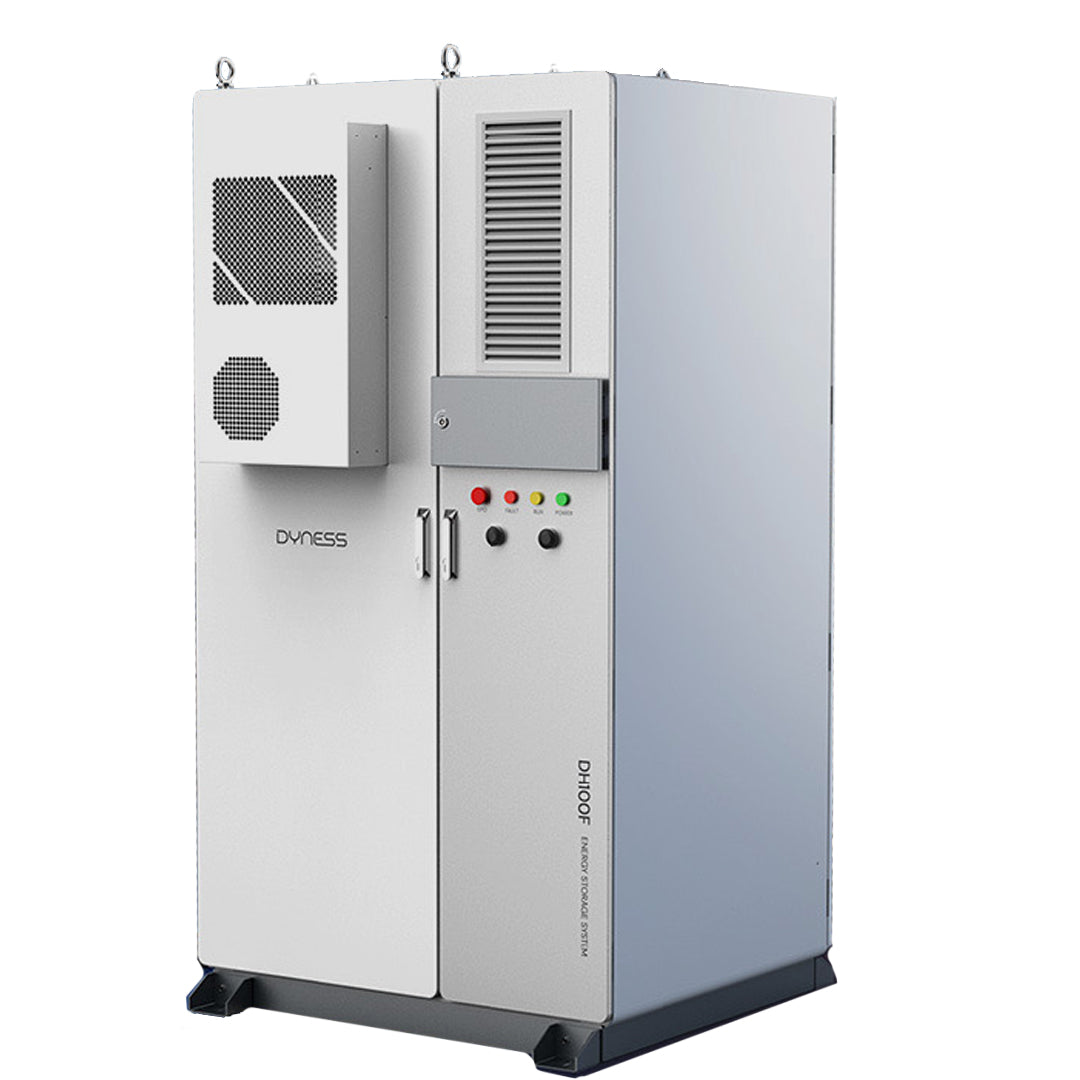

Dyness DH100F-S00L01C80 – Smart All-in-One Energy System without MPPT

The Dyness DH100F-S00L01C80 is a high voltage energy storage system (HV PV+ESS) designed for commercial and industrial applications including office buildings, manufacturing plants, charging stations and renewable energy systems.

With a capacity of 86 kWh, 280 Ah and 400V, this system provides flexible energy management in on-grid and off-grid modes. The model does not have MPPT for initial configuration, which allows adaptation to different energy sources and inverters

.
Main features:

✔ All-in-One solution – integrated energy storage without built-in MPPT
✔ Flexible management – ​​works in both on-grid (grid-tied) and off-grid (off-grid) modes
✔ IP55 protection – resistant to external conditions, dust and moisture
✔ Maximum safety – three-level fire protection and an intelligent cooling system
✔ Easy maintenance – modular design and the possibility of integration with different systems
Technical specifications
Battery

Battery type: Lithium iron phosphate (LiFePO4)
Battery capacity: 86 kWh
Pack Configuration: 6 PACK/Cluster
Rated voltage: 400V
Voltage range: 278.4 – 345.6V
Rated current: 140A
Maximum current: 160A

AC (On-Grid and Off-Grid)

Nominal power (on-grid): 40 kW
Rated power (off-grid): 40 kVA
Maximum current: 74A
Rated voltage: 400 Vac
Frequency: 50Hz/60Hz
Power factor: 0.8 (leading) – 0.8 (lagging)
THDI: <5%
THDv (off-grid): <3%

Solar Input (PV Input)

MPPT Inputs: No built-in MPPT for initial setup
Maximum voltage: 1000V
Input voltage range: 350 – 1000V
Starting voltage: 440V

System

Dimensions (W x D x H): 1200 x 1224 x 2258 mm
Weight: ~1600 kg
Maximum efficiency: 84%+
Cooling: Air (Fan Cooling)
Noise level: <70 dB
Operating temperature: -20°C to +50°C (derating above 45°C)
Operating humidity: 0 - 95% (non-condensing)
Degree of protection: IP55
Anti-corrosion protection: C3 (option for C5)
Communication: Ethernet, 4G, RS485
Certification: CE, TUV

Applications

Industrial and commercial facilities - energy independence and cost reduction
Photovoltaic systems – integration with external inverters and adaptation to different capacities
Charging stations for electric cars - efficient management of stored energy
Back-up power supply - protection against power outages

Conclusion

Dyness DH100F-S00L01C80 is a flexible, efficient and reliable energy storage system that ensures optimal management of energy resources. Thanks to IP55 protection, modular design and the possibility of integration with external inverters, it is a perfect solution for industrial, commercial and renewable energy applications.

We inform you that, despite our efforts, we cannot guarantee that the published information and photos do not contain inaccuracies or errors that cannot be a legal basis for claims.
DATASHEET/Technical characteristics DynessBF100SeriesdatasheetEN
Installation Manual DynessBF100UserManualV1.0202408ENxiudingban
