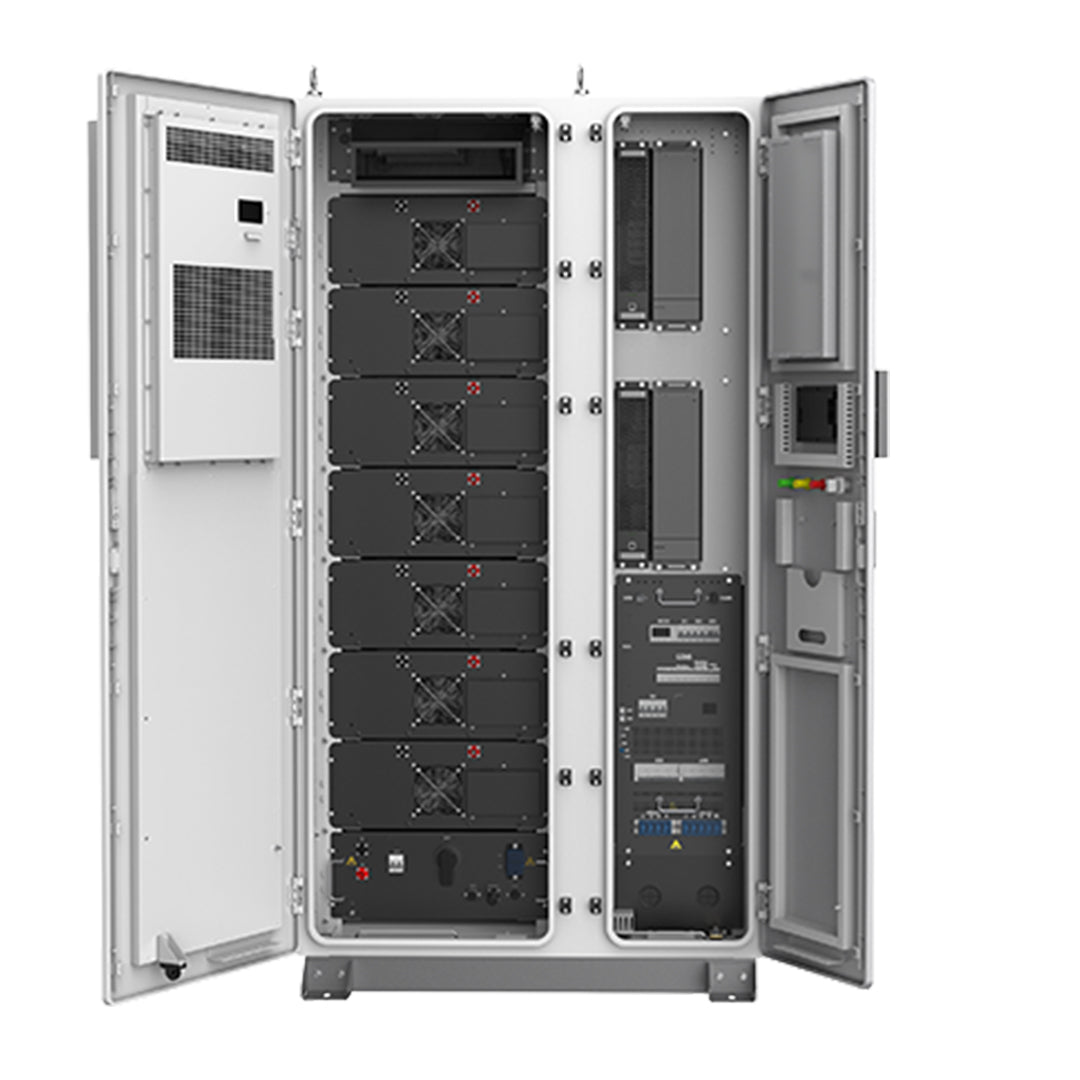

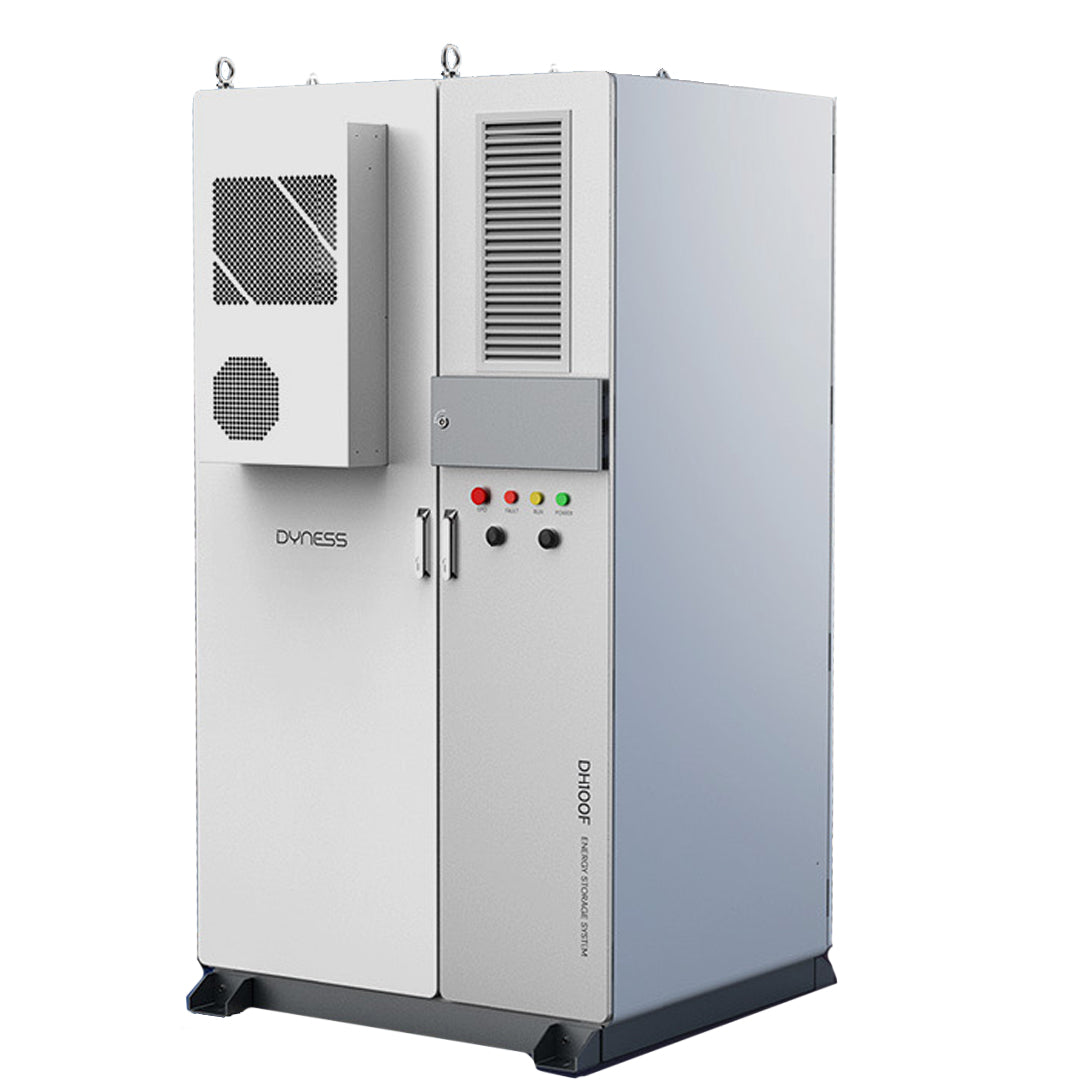

Dyness DH100F-S02L01C70 – Smart All-in-One Power System with 2 MPPT

Dyness DH100F-S02L01C70 is an integrated high voltage energy storage system (HV PV+ESS) designed for efficient solar power management and backup power. With a capacity of 71 kWh, 280 Ah and 400V, this system is ideal for industrial sites, commercial buildings, office parks and charging stations.

Its main advantage is the presence of 2 independent MPPT inputs (25 kW * 2), which ensure greater efficiency and optimal use of solar energy, even at different levels of illumination of the solar panels.

.
Main features:

✔ All-in-One solution – integrated energy storage with PV connection
✔ 2 MPPT inputs (25 kW * 2) – optimized solar energy efficiency
✔ Flexible management – ​​works in on-grid (grid-tied) and off-grid (off-grid) modes
✔ IP55 protection – resistant to external conditions and dust
✔ Maximum safety – three-level fire protection and an intelligent cooling system
✔ Modular design – easy maintenance and expandability
Technical specifications
Battery

Battery Type: Lithium Iron Phosphate (LiFePO4)
Battery capacity: 71 kWh
Pack Configuration: 5 PACK/Cluster
Rated voltage: 400V
Voltage range: 232 – 288V
Rated current: 140A
Maximum current: 160A

AC (On-Grid and Off-Grid)

Nominal power (on-grid): 35 kW
Rated power (off-grid): 35 kVA
Maximum current: 60A
Rated voltage: 400 Vac
Frequency: 50Hz/60Hz
Power factor: 0.8 (leading) – 0.8 (lagging)
THDI: <5%
THDv (off-grid): <3%

Solar Input (PV Input)

MPPT inputs: 2
Maximum input power: 50 kW (2 × 25 kW)
Maximum input current: 2 × 80A
Maximum voltage: 1000V
Input voltage range: 300 – 1000V
Starting voltage: 375V

System

Dimensions (W x D x H): 1200 x 1224 x 2258 mm
Weight: ~1500 kg
Maximum efficiency: 84%+
Cooling: Air (Fan Cooling)
Noise level: <70 dB
Operating temperature: -20°C to +50°C (derating above 45°C)
Operating humidity: 0 - 95% (non-condensing)
Degree of protection: IP55
Anti-corrosion protection: C3 (option for C5)
Communication: Ethernet, 4G, RS485
Certification: CE, TUV

Applications

Industrial and commercial facilities - energy independence and cost reduction
Photovoltaic systems - maximum efficient use and storage of solar energy
Charging stations for electric cars - intelligent energy management
Back-up power supply – uninterruptible power supply in case of interruptions

Conclusion

Dyness DH100F-S02L01C70 is a powerful and intelligent energy storage solution that combines off-grid and on-grid operation, high efficiency and security. With 2 MPPT inputs and optimized solar management, this system is a perfect choice for industrial, commercial and renewable energy applications.
