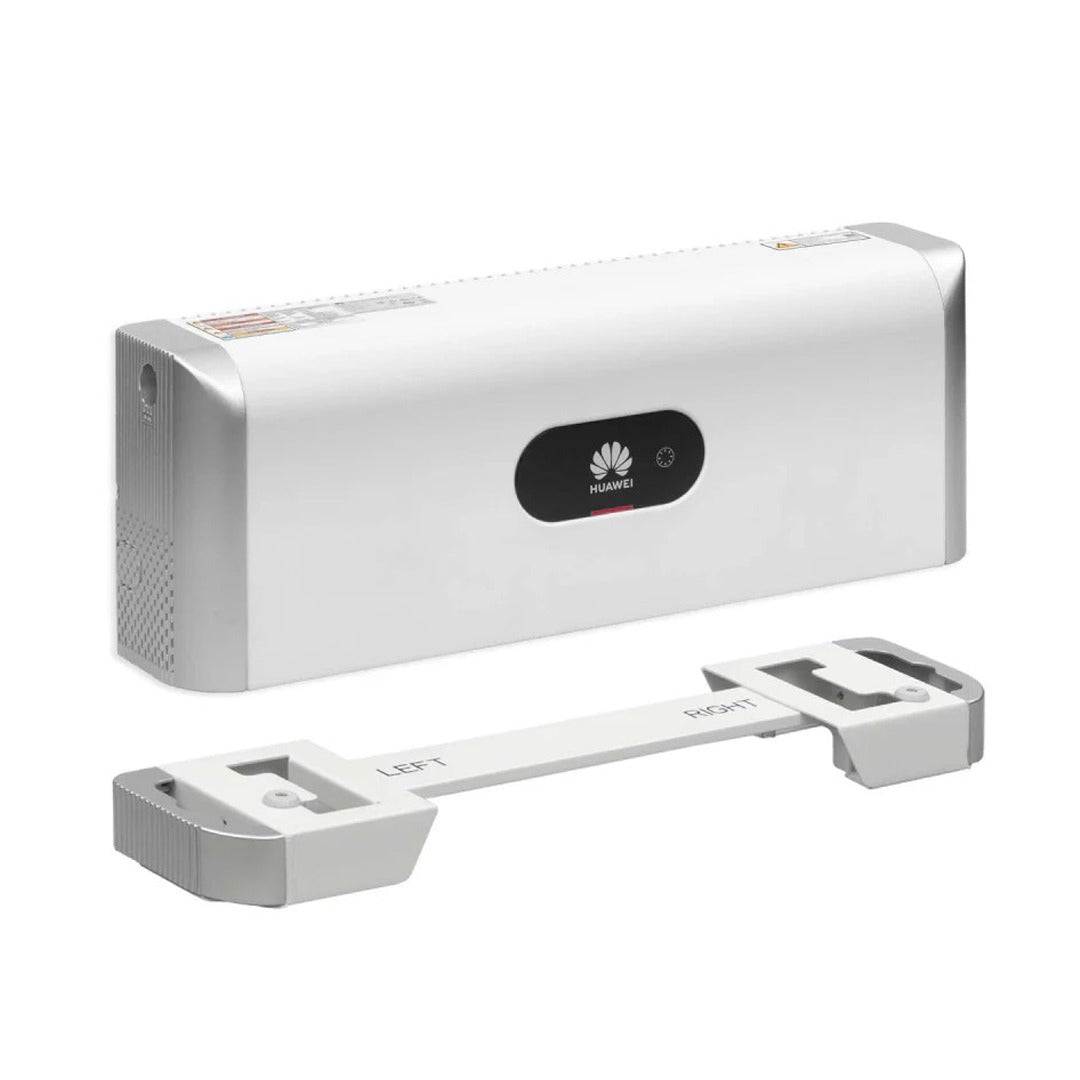

Huawei LUNA2000-5KW-C0 – DC/DC Power Module for Smart Power System | 5 kW | IP66 | Plug & Play

Huawei LUNA2000-5KW-C0isintelligent DC/DC Power Module, part of the modular battery systemSmart String Energy Storage System – LUNA2000.
It provides the connection between LUNA2000-5-E0 battery modules and Huawei series hybrid invertersL1 (single phase)andM1 (three-phase).
The module manages the charging and discharging of batteries, provides energy optimization and maximum efficiency in real time.

Key benefits

• Plug & Play design– easy installation and automatic detection via the FusionSolar App.

• High efficiency and energy optimization – 100 % Depth of Discharge (DoD).

• 5-layer protection system– for maximum security during operation

• Silent operation– < 29 dB, natural ventilation.

• High degree of protection IP66– suitable for external installation.

• Flexible scaling– option for up to 3 battery modules (up to 15 kWh capacity).

• Compatible with Huawei single-phase and three-phase inverters.

Compatible devices

• Batteries:LUNA2000-5-E0 (5 kWh LiFePO₄ modules)

• Inverters:

  • Single phase: SUN2000-2/3/3.68/4/4.6/5/6KTL-L1, SUN2000-8/10K-LC0

  • Three-phase: SUN2000-3/4/5/6/8/10KTL-M1, SUN2000-12/15/17/20/25K-MB0, SUN2000-5/6/8/10/12K-MAP0

Applications

• Home Hybrid Photovoltaic Systems

• Commercial and small industrial power plants

• Smart Grid solutions and Zero Export management

• Back-up power supply in case of mains failure

Warranty and support

• 10 year warranty from Huawei

• Support through Huawei FusionSolar Cloud and App

• Possibility to extend the warranty up to 15 years upon registration

Certificates and standards

• CE, RCM, CEC, VDE 2510-50, IEC 62619, IEC 60730, UN 38.3

• ISO 9001 / 14001 / 45001

• TÜV / RoHS / VDE

Huawei LUNA2000-5KW-C0is the heart of the LUNA2000 battery system – it provideshigh efficiency, safety and flexibility, suitable for all modern PV installations.
This Power Module guarantees intelligent energy management between panels, battery and grid - formaximum yield and minimum losses.

✅ Device Type: DC/DC Power Module
✅ Power: 5 kW
✅ Efficiency: ≥ 98 %
✅ Compatibility:LUNA2000 series / Huawei SUN2000 inverters
✅ Warranty:10 years

We inform you that, despite our efforts, we cannot guarantee that the published information and photos do not contain inaccuracies or errors that cannot be a legal basis for claims.

Technical characteristics

✅ Device Type:DC/DC power module for LUNA2000 Energy Storage System
✅ Rated power: 5 kW
✅ Peak Power: 3.5 kW (10 s)
✅ Rated voltage (1-phase system): 450 V
✅ Operating range (1-phase): 350 – 560 V
✅ Rated voltage (3-phase system): 600 V
✅ Operating range (3-phase): 600 – 980 V
✅ Communication:RS485 / CAN (parallel operation)
✅ Indication:LED – SOC and status indicator
✅ Dimensions (W×D×H): 670 × 150 × 240 mm (26.4 × 5.9 × 9.4 in.)
✅ Weight: 12 kg
✅ Cooling:Natural convection
✅ Noise: < 29 dB (@1 m)
✅ Operating temperature:-20 °C to +55 °C
✅ Relative humidity: 5 – 95 % RH
✅ Installation:Floor (standard) or wall (optional)
✅ Degree of protection: IP66
✅ Working height:up to 4000 m (derating above 2000 m)
✅ Certificates: CE, RCM, CEC, VDE 2510-50, IEC 62619, IEC 60730, UN38.3
✅ Warranty:10 years
