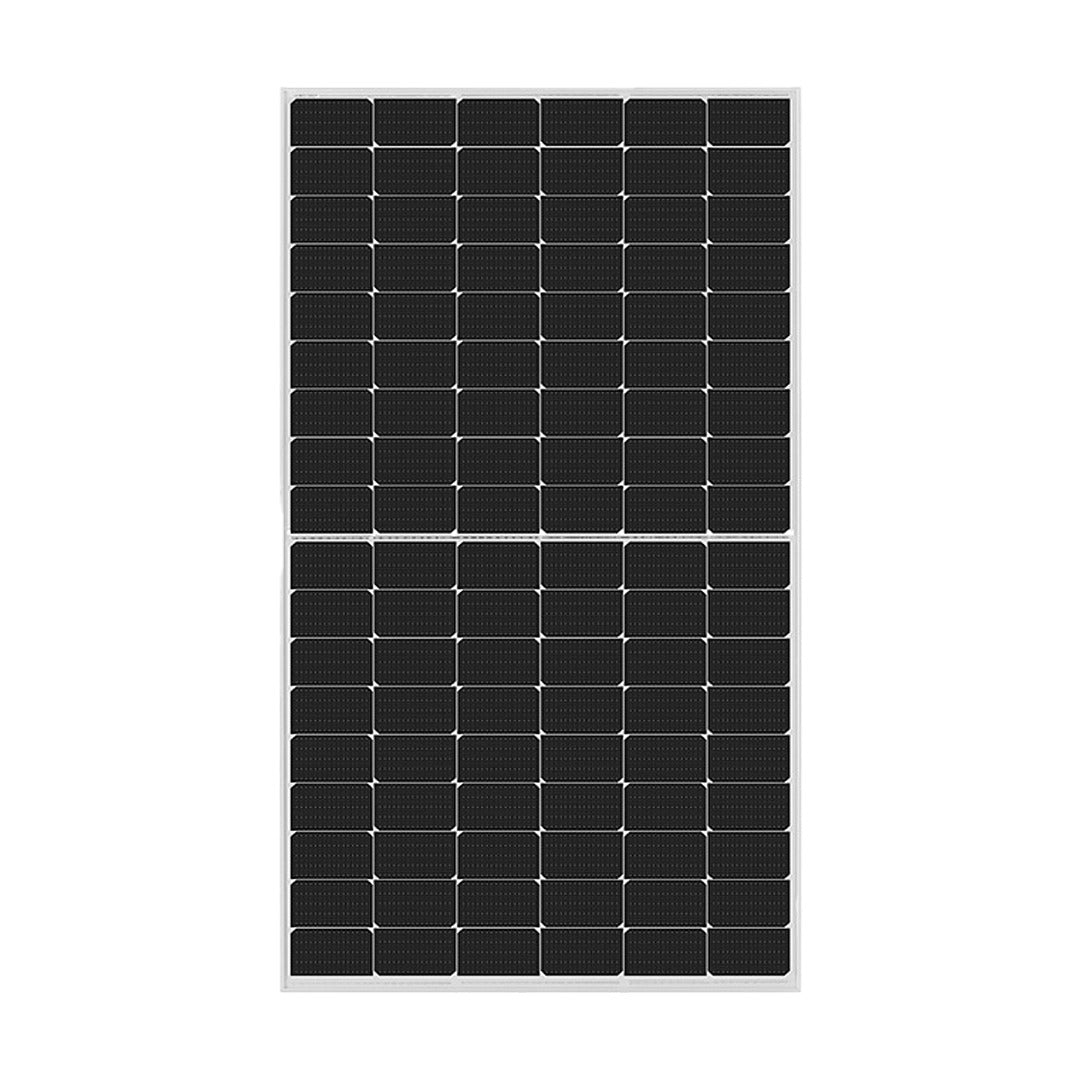

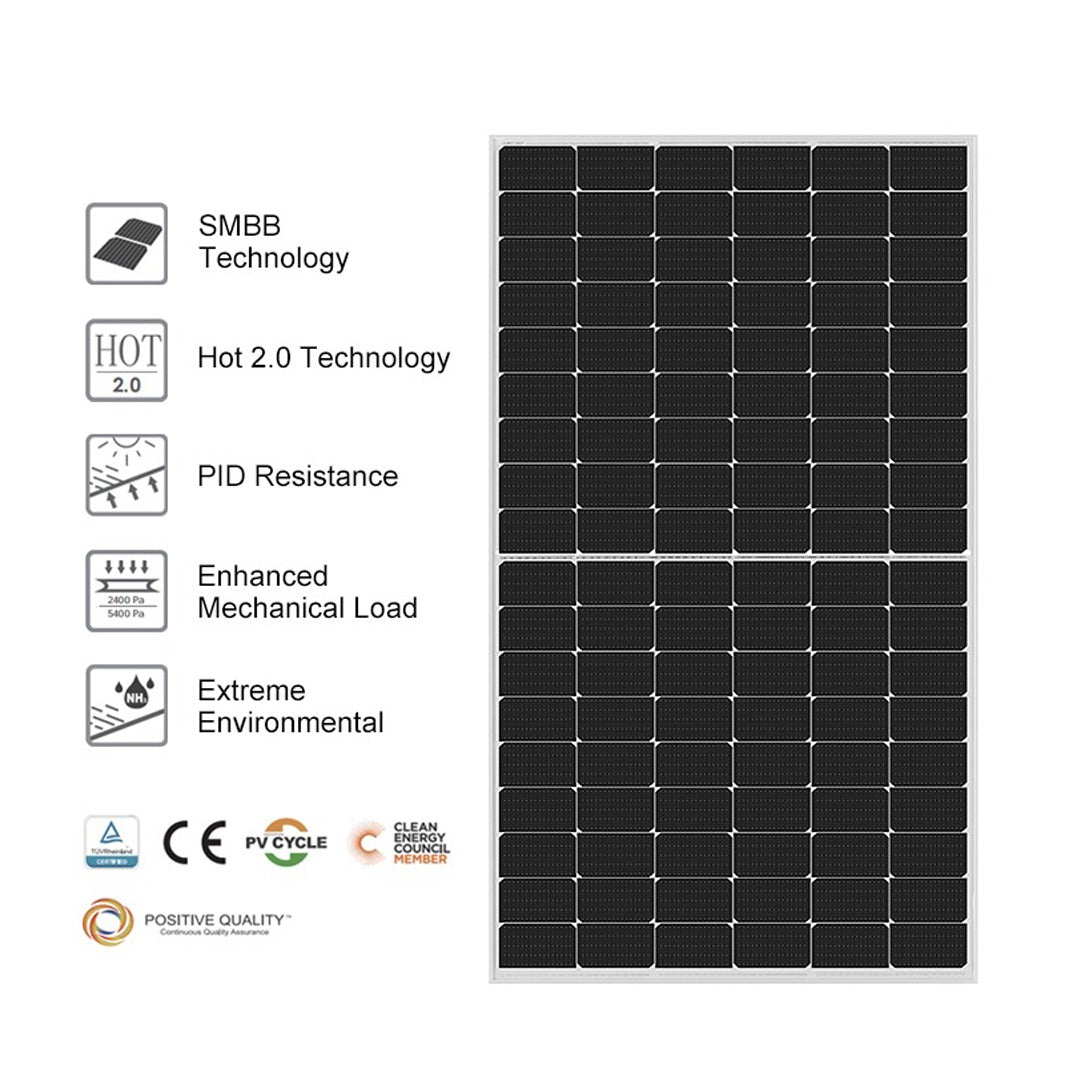

Jinko Tiger Neo 415W N-type | Monocrystalline Solar Panel |108 Cells | 30 years warranty

Jinko Tiger Neo JKM415N-54HL4-V is a new generation high efficiency solar panel based on N-type monocrystalline technology with Hot 2.0 improvements. The module offers superior PID robustness, low degradation, and excellent low-light and high-temperature performance. Perfect for residential and commercial applications, including harsher climates.

Electrical parameters (STC):
Voltage at maximum power (Vmp): 31.32 V
Current at maximum power (Imp): 13.25 A
Open Circuit Voltage (Voc): 37.92 V
Short-circuit current (Isc): 13.99 A
Temperature coefficient of Pmax: -0.29 %/°C
Temperature coefficient of Voc: -0.25 %/°C
Temperature coefficient of Isc: +0.045 %/°C
  NOCT: 45 ±2°C
Operating temperature: from -40°C to +85°C
Max. system voltage: 1000/1500V DC
Max. fuse current: 25 A
Power Tolerance: 0 ~ +3%

Sustainability and certifications:
Protection: IP68 junction box
Wind: up to 2400 Pa
Snow: up to 5400 Pa
High resistance to ammonia and salt spray
Certified by:
 • IEC61215 / IEC61730
 • ISO9001, ISO14001, ISO45001
 • CE, TÜV

Guarantees:
15 year product warranty
30 year linear performance warranty
• ≤1% loss first year
• ≤0.40% annual degradation
• ≥87.4% residual power after 30 years

Applications:
✔️ Residential and Commercial Photovoltaic Systems
✔️ Roof and ground installations
✔️ Suitable for long strings and compatible with modern inverters

Jinko Tiger Neo 415Wis a perfect choice for customers looking for reliability, high efficiency and long-term return on investment.

Number in pallet – 36 pcs.

We inform you that, despite our efforts, we cannot guarantee that the published information and photos do not contain inaccuracies or errors that cannot be a legal basis for claims.

Technical characteristics:
✅ Type of cells: N-type monocrystalline
✅ Configuration: 108 cells (6×18)
✅ Nominal power (Pmax): 415 W
✅ Efficiency: 21.25%
✅ Dimensions: 1722 × 1134 × 30 mm
✅ Weight: 22.0 kg
✅ Glass type: 3.2 mm tempered, anti-reflection
✅ Frame: Aluminum
✅ Connectors and cables: TUV certified, 4.0 mm², (+) 400 mm / (–) 200 mm
