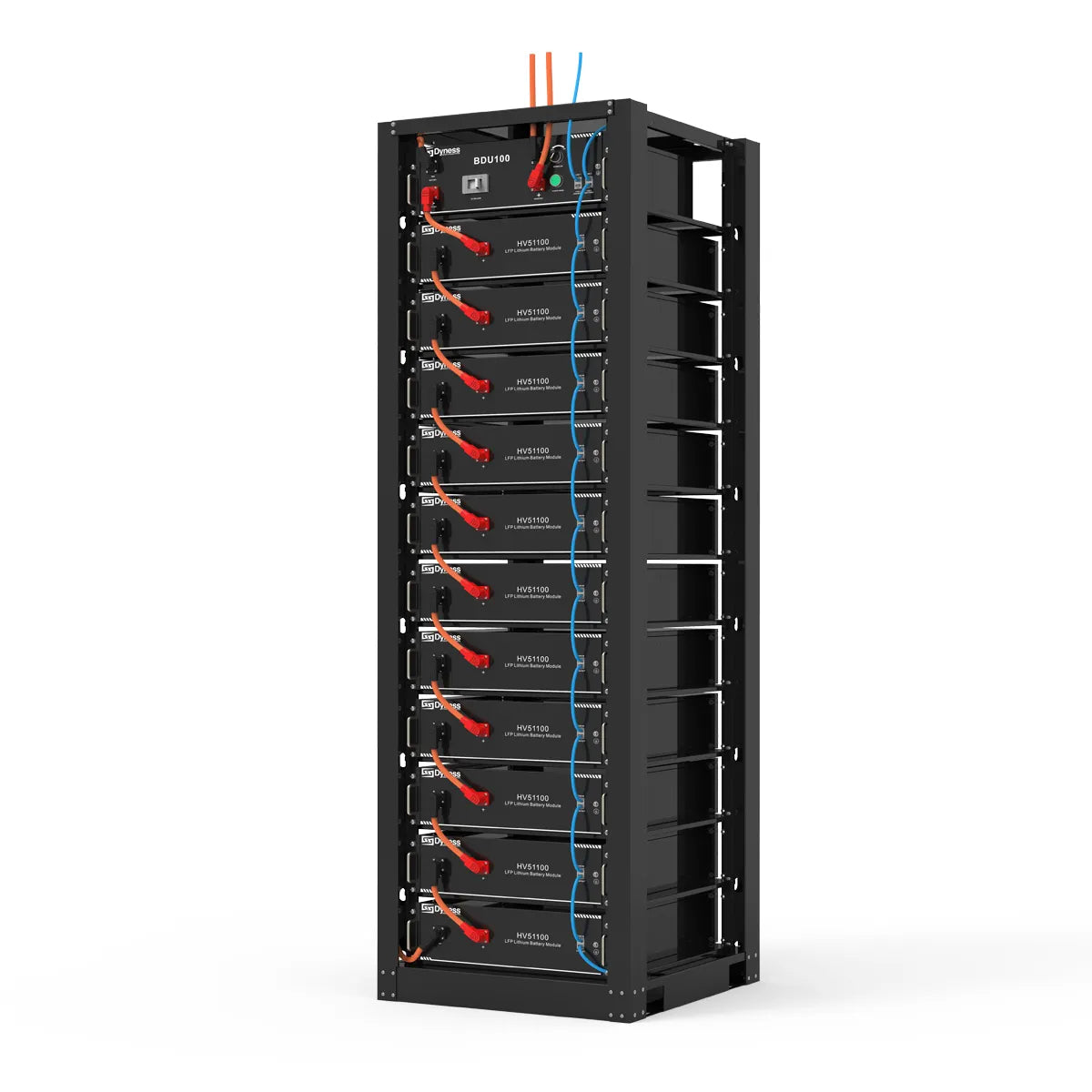

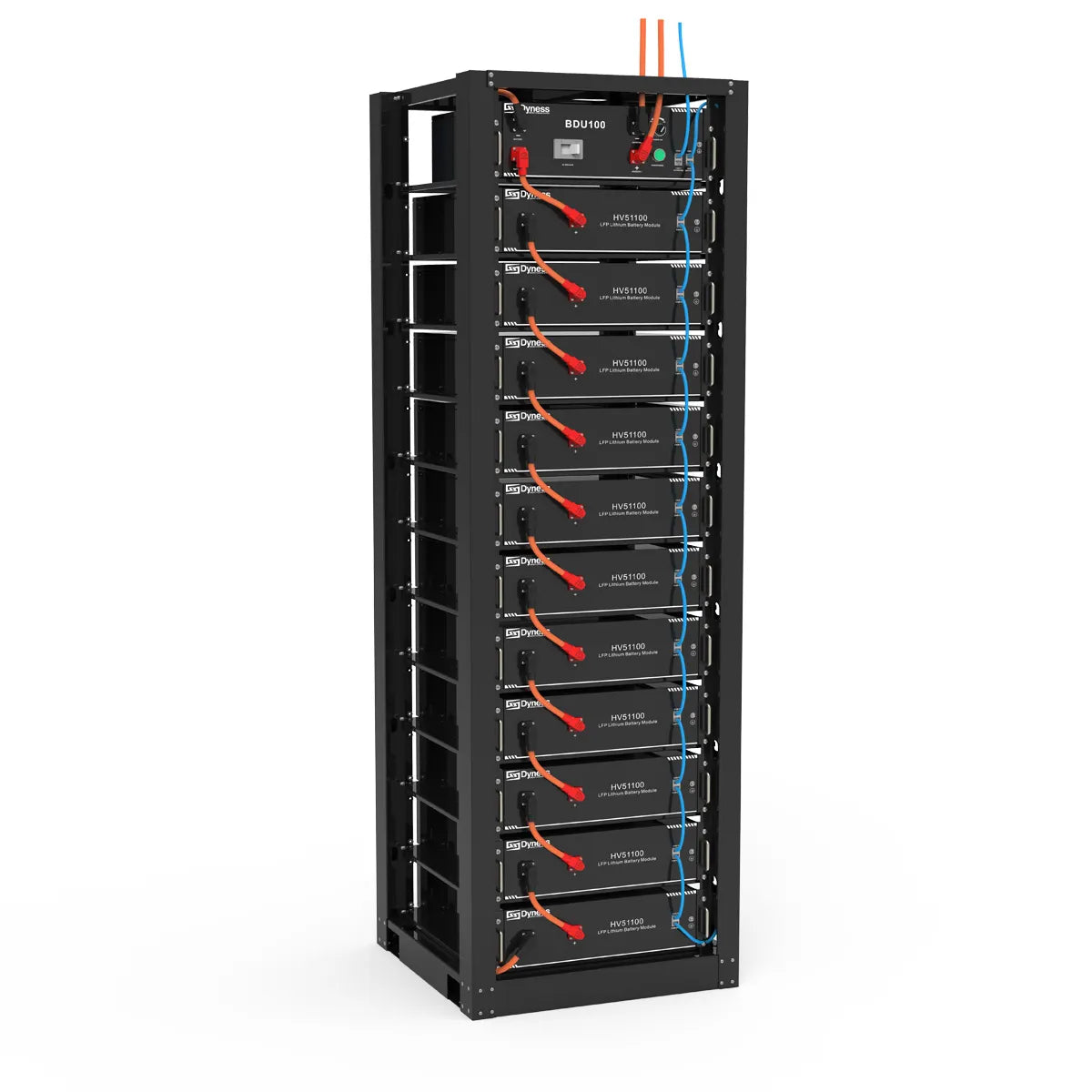

PowerRack HV4-11s Dyness - High Voltage (HV) Battery System

The PowerRack HV4-11s is a high voltage (HV) battery energy storage system designed for industrial and commercial applications. With a modular design, high efficiency and reliability, it offers optimized energy storage and management for large power systems.
Main features:

✅ Great energy output:

Nominal energy: 56.32 kWh
Nominal capacity: 100 Ah
Rated voltage: 563.2V

✅ Modular design and scalability:

Uses 11 HV51100 battery modules
Flexible architecture that allows for expansion
Compatibility with various industrial and commercial inverters

✅ High efficiency and safety:

LiFePO4 (lithium iron phosphate) battery technology
Intelligent BMS (Battery Management System)
Overvoltage, short circuit and overheating protection

✅ Durability and reliability:

Degree of protection: IP54 - suitable for industrial conditions

✅ Easy installation and management:

Compact modular design: 548 × 568 × 2012 mm
Weight: 646.5 kg
Remote control and monitoring option

✅ Advanced communication:

CAN/RS485 communication protocols
Integration with energy management systems

✅ Wide operating temperature range:

Charging: 0~55°C
Discharge: -20~55°C
Stable operation in different climatic conditions

✅ Safety certifications:

UN38.3, CE-EMC, IEC62040, IEC62619, GOST-R, UKCA, CEC Accredited, CEI-021

Advantages of PowerRack HV4-11s:

High capacity for commercial and industrial needs
Long battery life – over 6000 charge-discharge cycles
Scalable system to expand as needed
Compatible with multiple inverters
IP54 protection for safety and reliability
Applications:

Large industrial and commercial power systems
On-grid and off-grid energy storage solutions
Backup power for critical applications
Renewable energy management systems
Conclusion:

The PowerRack HV4-11s is a highly efficient and reliable battery system providing flexibility, scalability and security for industrial and commercial projects. With its large capacity and intelligent energy management, this system is ideal for optimizing costs and improving energy independence

Installation Guide PowerRack HV4F-8s_user manual
DATASHEETPowerRackHV4datasheetEN2024.12.26

Documentation

• PowerRack HV4F-8s_user manual
• PowerRackHV4datasheetEN2024.12.26
