Growatt ARK-2.5H-A1 high voltage lithium battery LiFePo4 battery

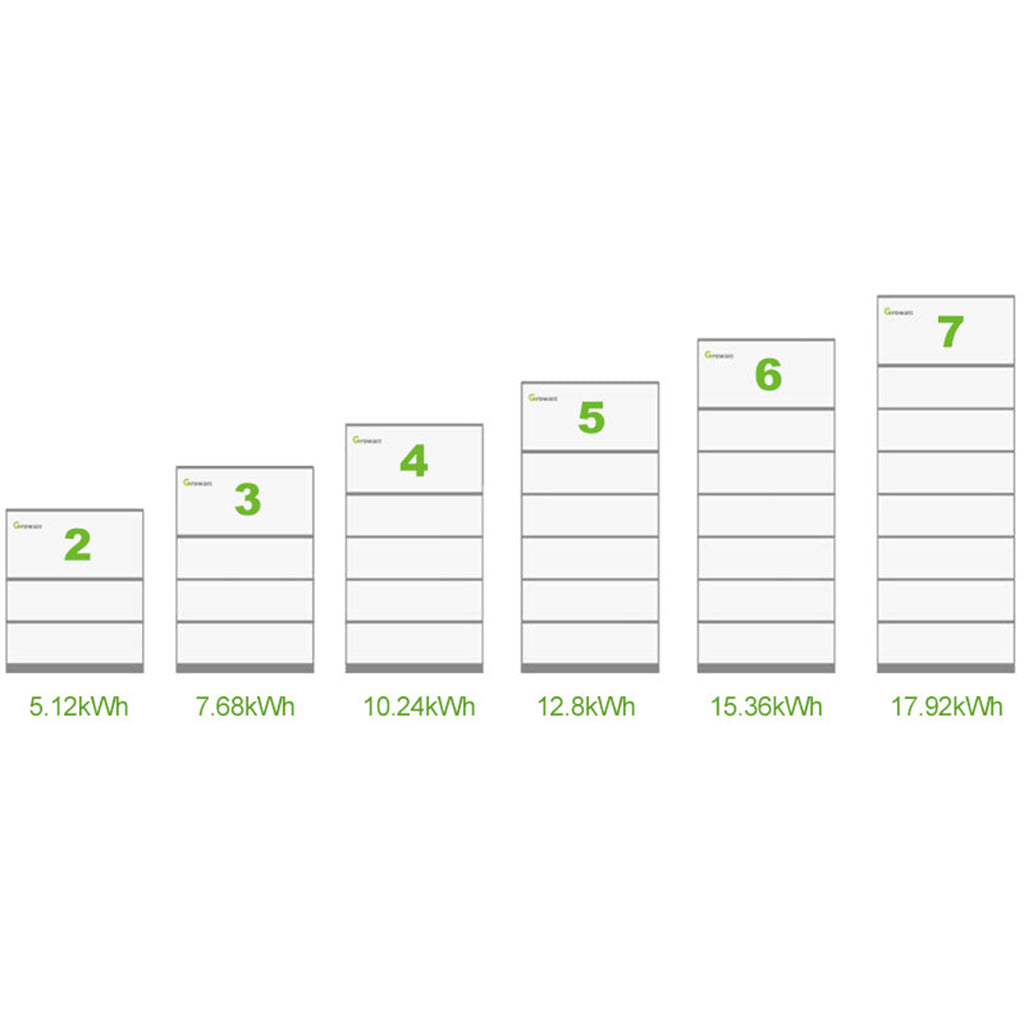

The Growatt ARK-2.5H-A1 2.56kWh high-voltage lithium battery suitable for Growatt self-consumption systems storing surplus production. The Growatt ARK high voltage lithium battery system has a modular design. Additional batteries can be stacked on top of each other. The ARK-2.5H-A1 has a capacity of 2.56kWh and a maximum (discharge) charging current of 25A. The nominal voltage is 51.2V and the operating voltage is between 47.2V and 56.8V. The lithium iron phosphate (LFP) battery does not contain cobalt, which for example results in a cheaper battery. The battery has a life cycle of over 6000.
Components of the Growatt Growatt ARK-2.5H-A1 Viscovolt Lithium Battery

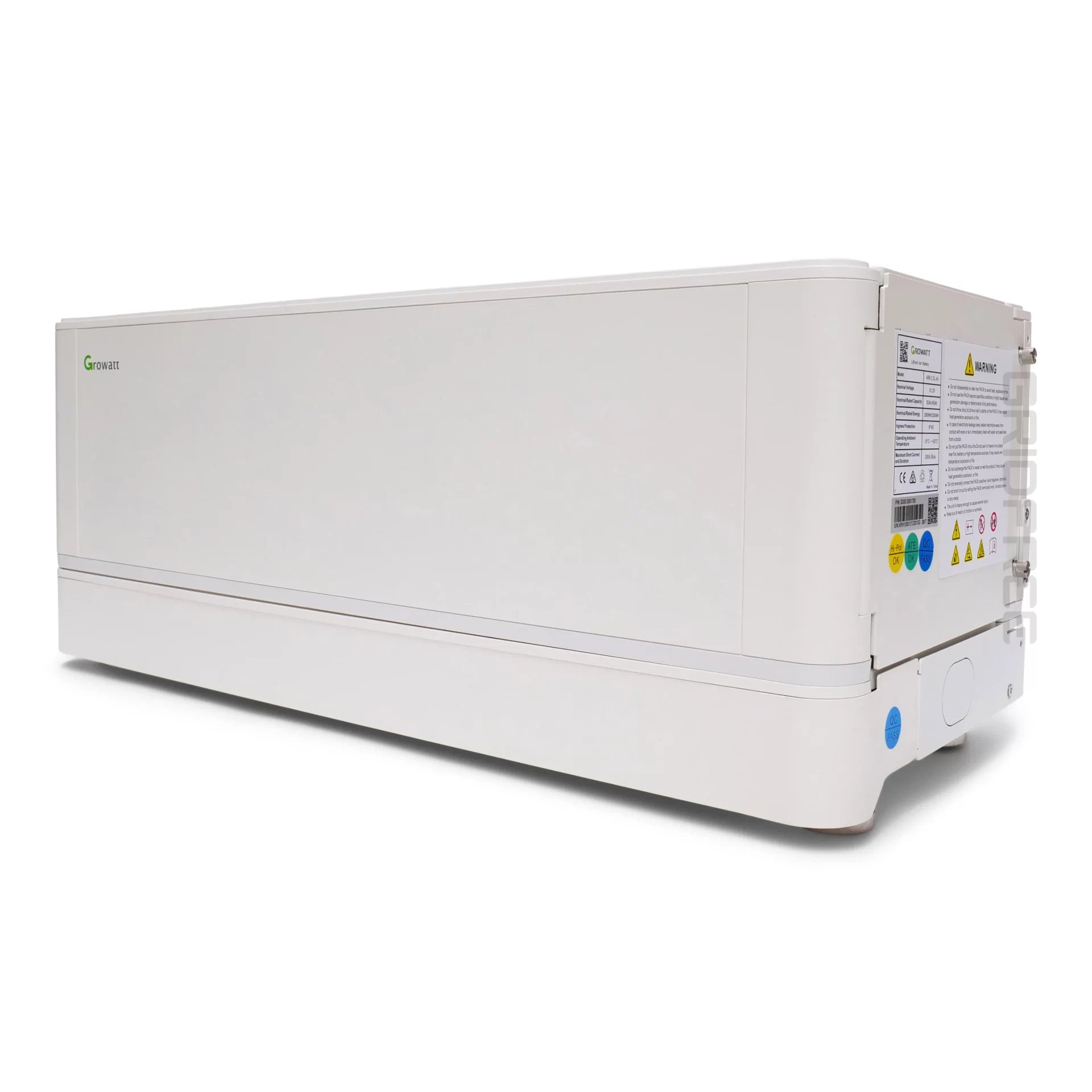

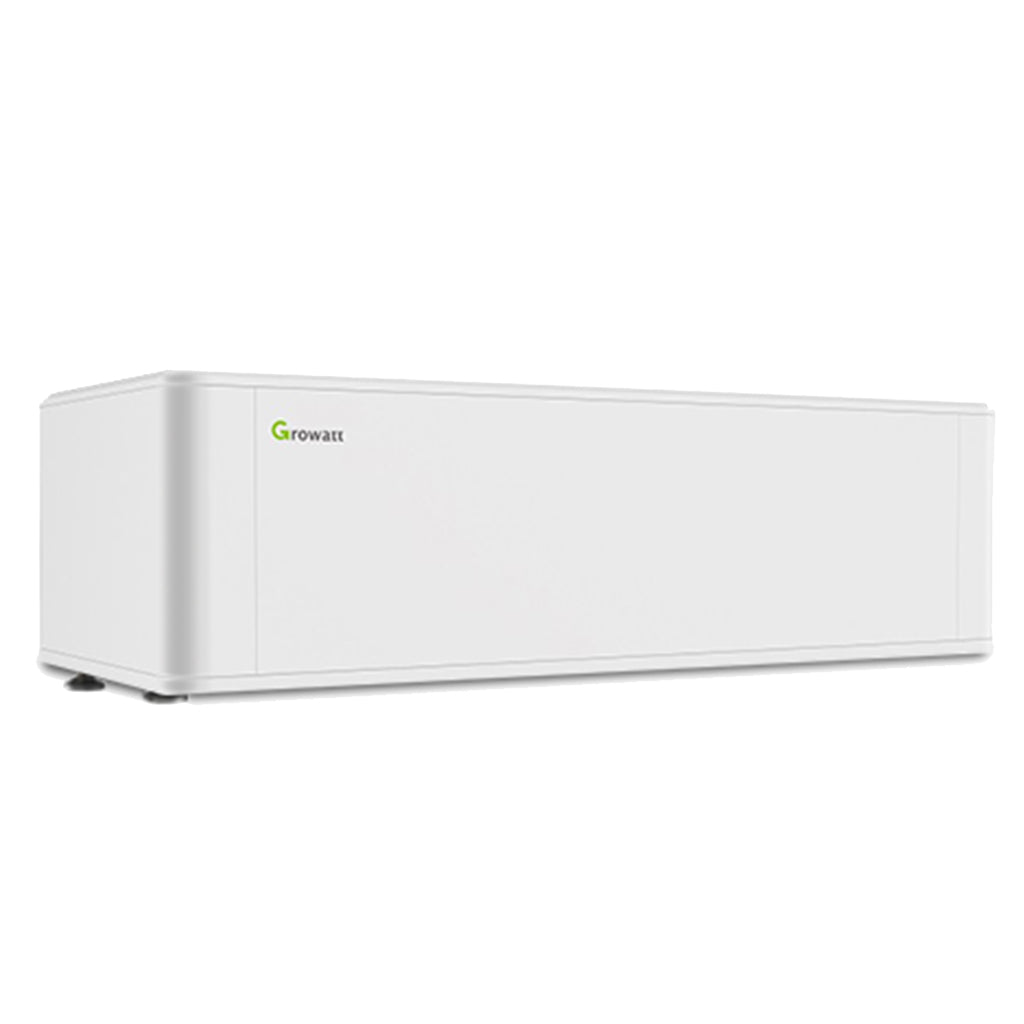

1 x Growatt ARK-2.5H-A1 Lithium Battery Module: This Visco Volt Lithium Battery Module is suitable for Growatt self-consumption systems that use the lithium battery for excess storage.
1 x Growatt High Voltage Lithium Phosphate LiFePo4 Battery ARK Battery Base: This base serves as a bottom support for installing Growatt ARK batteries on a tower. One must be included for each battery tower. The battery has an IP65 degree of protection and can be fixed either to a wall or to the floor. Floor installation requires a separate pedestal. The battery is 65 cm wide, 26 cm deep, 18 cm high and weighs 30 kg.
1 x Growatt ARK Wiring: This cable is used to connect an ARK battery tower to the corresponding inverter. They include suitable connection terminals to make the installation of the system as easy as possible.
