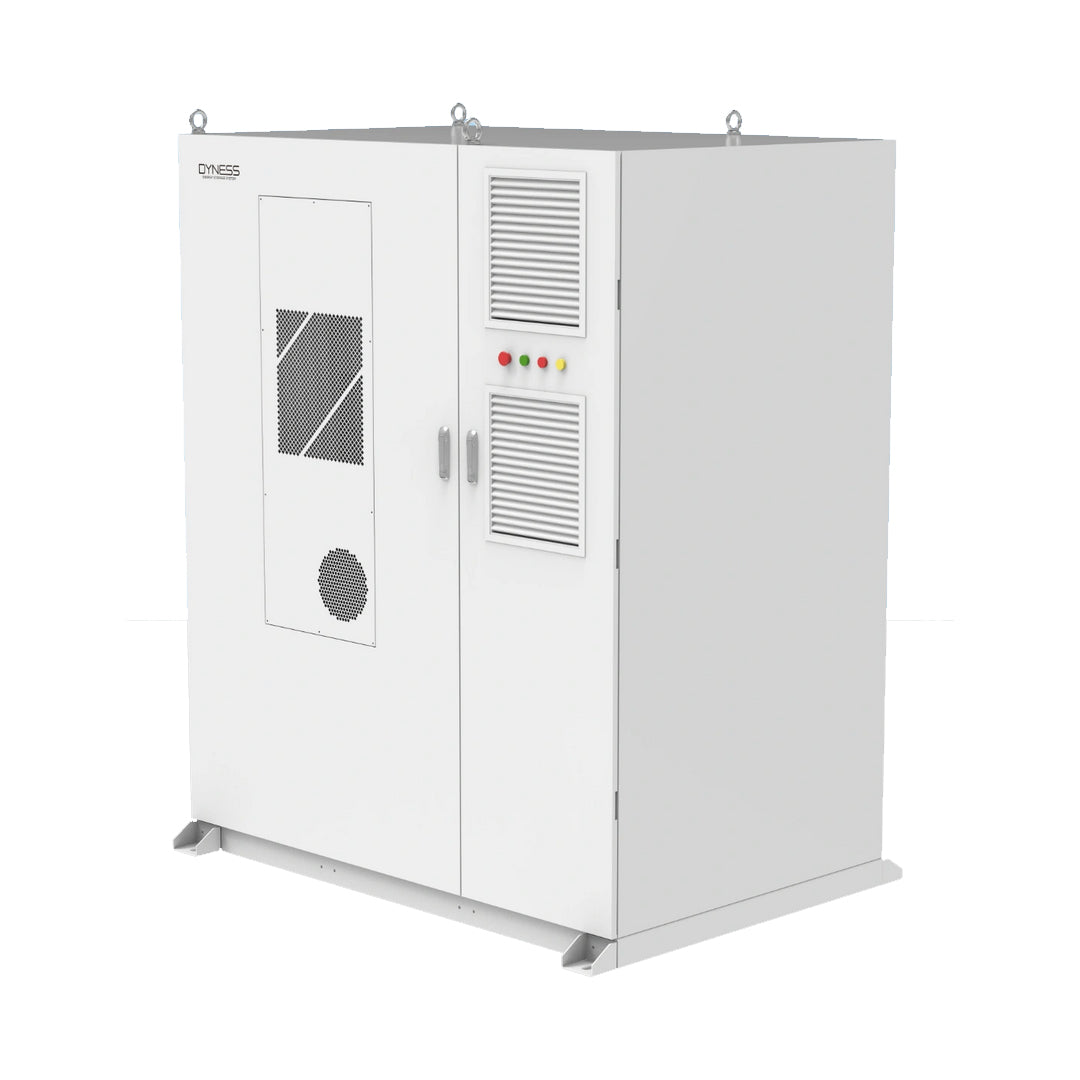

DYNESS All-in-one DH200F S100L00 – High Voltage Energy Storage System with MPPT Control

DYNESS All-in-one DH200F S100L00 ishigh voltage (HV) integrated energy storage system, intended forindustrial, commercial and large-scale energy projects. It provides reliable management of energy resources withbuilt-in 2*MPPT controller, which makes hersuitable for connection to photovoltaic systemsandefficient conversion of solar energy.

Main advantages

✅ High capacity and expandability

• 215 kWhbattery capacity
• 280 Ahnominal capacity
• 400V rated voltage
• Opportunity forexpansion with up to 12 parallel modules, reaching2.58 MWh

✅ Integrated MPPT technology

• Two MPPT controllersforoptimization of charging from photovoltaic panels
• Supportsmaximum input power of 50kW
• Input operating voltage:200V – 670V

✅ Safety and reliability

• High degree of protection IP55, which makes it resistant to external conditions
• Advanced fire protectionwith multi-layer detection and EMS control
• Intelligent switching systembetween grid and off-grid mode forless than 20ms

✅ Modern construction and innovation

• Effective air circulationfor optimal cooling
• Low noise levels (≤75 dB)
• Touch displayfor monitoring and management

Technical characteristics

• Battery Type: LiFePO4
• Battery capacity: 280 Ah
• Rated capacity: 215 kWh
• Rated voltage: 400V
• Maximum input current: 100A
• Maximum output current: 167A
• MPPT controllers:2 pieces
• Maximum input power: 50kW
• Input voltage: 200V – 670V
• Temperature range:-20°C to 50°C
• Cooling:Aerial
• Protection level: IP55
• Weight: 2800 ± 100 kg
• Dimensions: 1850 × 1265 × 2250 mm
• Communication: Ethernet, 4G, RS485
• Certifications: CQC, CE, TUV

DYNESS All-in-one DH200F S100L00 offersan extremely effective and reliable solutionforenergy storage and management, combininghigh performance, security and optimal use of photovoltaic energy
