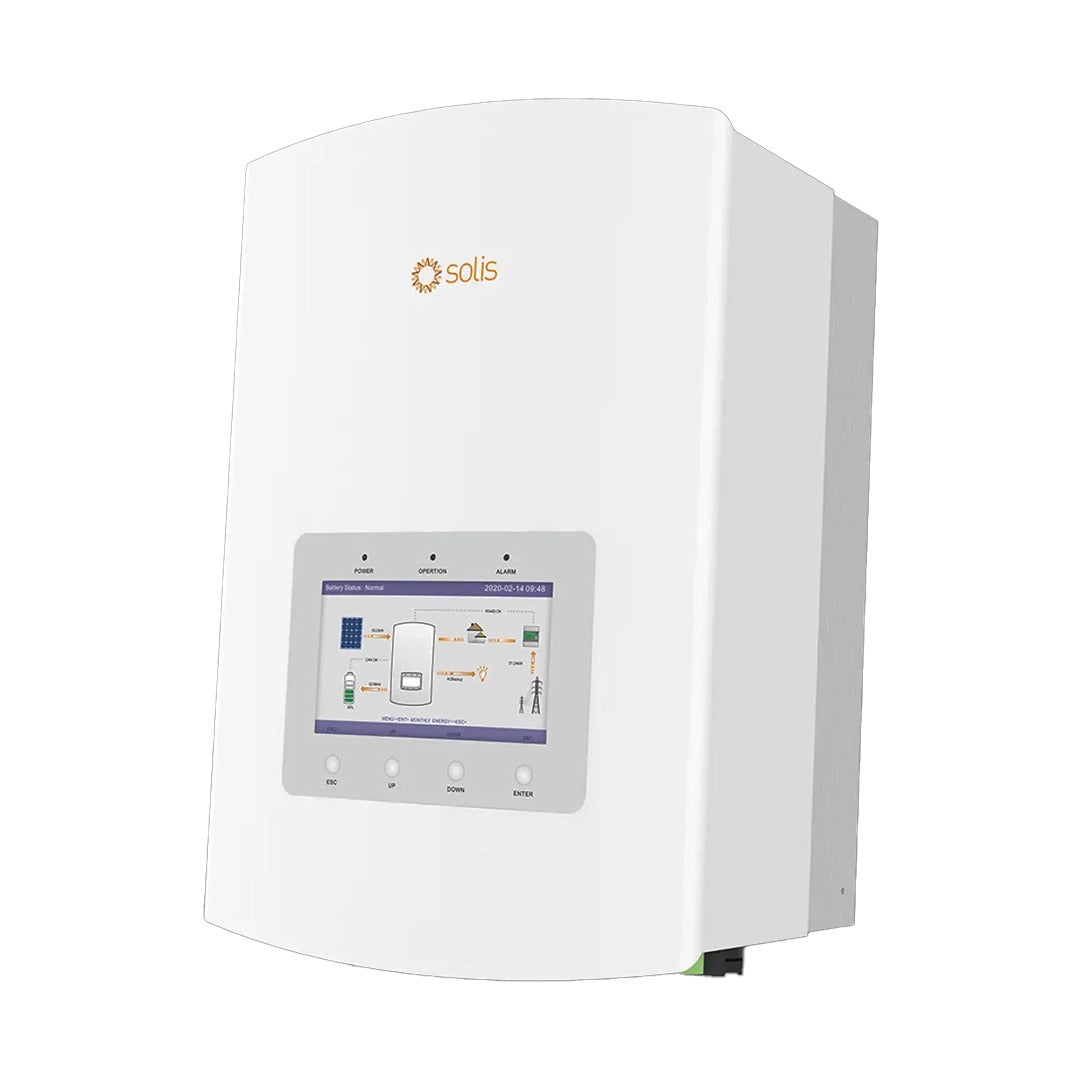

Inverter Solis S5-EH1P5K-L – Single-phase hybrid inverter for systems with energy storage (Low Voltage)

The Solis S5-EH1P5K-L is a modern single-phase hybrid inverter designed for low-voltage batteries and suitable for both residential and small commercial PV systems. It provides maximum energy efficiency, safety and intelligent energy management, making it an ideal solution for self-consumption and energy storage systems.

Main features:

Maximum input current from PV: 15A per string
Response to UPS mode: ≤ 20 ms – almost instantaneous switching
2 MPPT trackers – ensure high efficiency at different panel exposures
High charging and discharging efficiency – optimizes economic benefits
Built-in AFCI (against arc current) protection - reduces the risk of fire
Fanless design - longer life and silent operation
Intelligent EMS management system - 24/7 monitoring and production optimization
Compatible with lithium-ion and lead-acid batteries
Ability to remotely monitor and update

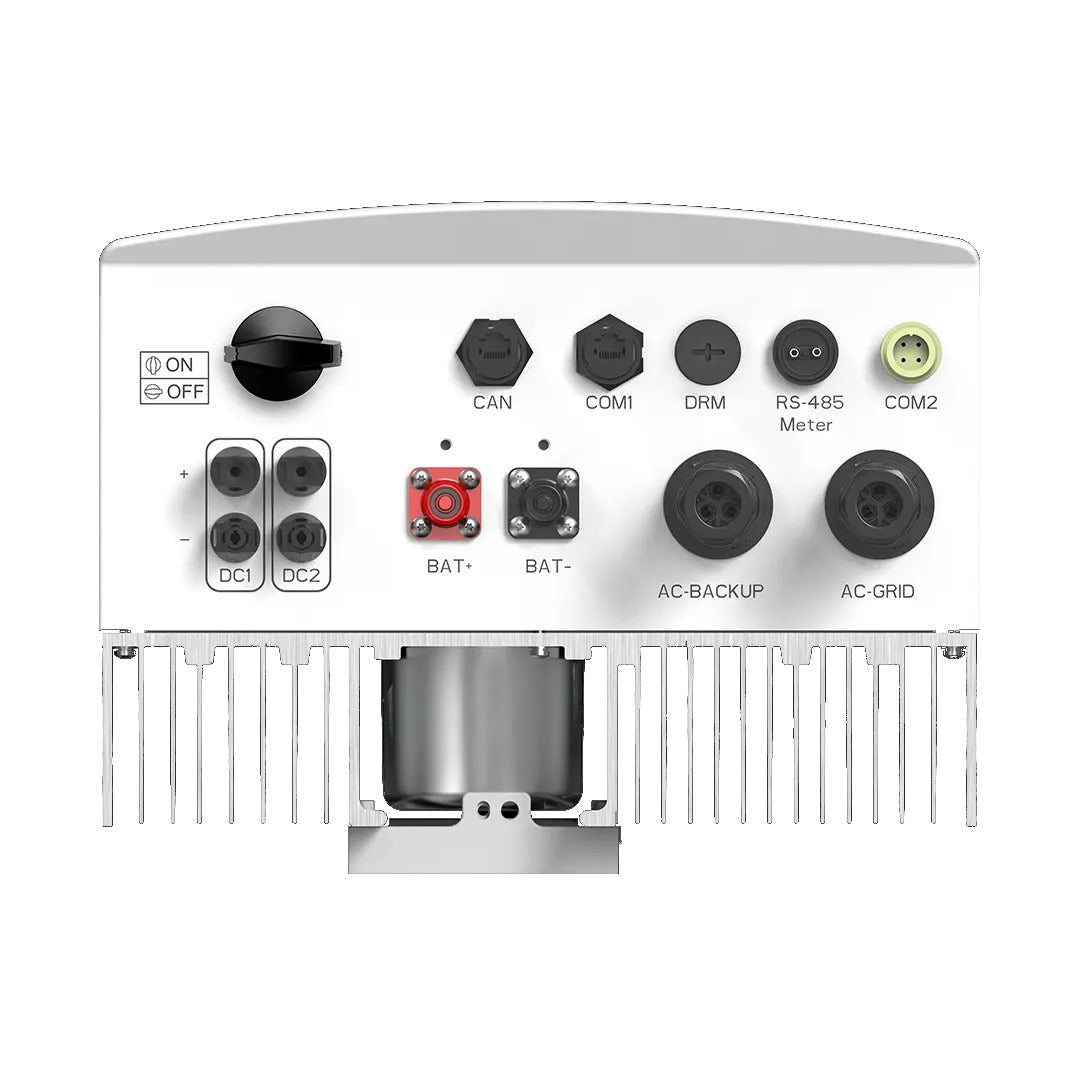

Built-in DC switch and communication via RS485, with optional WiFi and GPRS
Degree of protection: IP65 – resistant to external conditions

Warranty:
10 year standard warranty

Applications:
Residential solar systems with storage
Hybrid solutions with zero exports
Smart load management and network balancing

We inform you that, despite our efforts, we cannot guarantee that the published information and photos do not contain inaccuracies or errors that cannot be a legal basis for claims.

Technical parameters:

✅ Nominal power: 5 kW
✅ Max. DC input power: 8.0 kW
✅ Max. charge/discharge current: 100 A
✅ Battery voltage range: 42 – 58V
✅ Output voltage (AC): 230V
✅ Max. output current: 25 A
✅ Efficiency: up to 97.1%
✅ THD: < 2%
✅ Dimensions (WxHxD): 333 × 505 × 249 mm
✅ Weight: 18.1 kg
✅ Operating temperature: -25°C to +60°C
✅ Forced air cooling
✅ Communication: RS485, WiFi (optional)
✅ Standards: IEC/EN 62109-1/-2, EN 61000-6-1/-3, etc.
