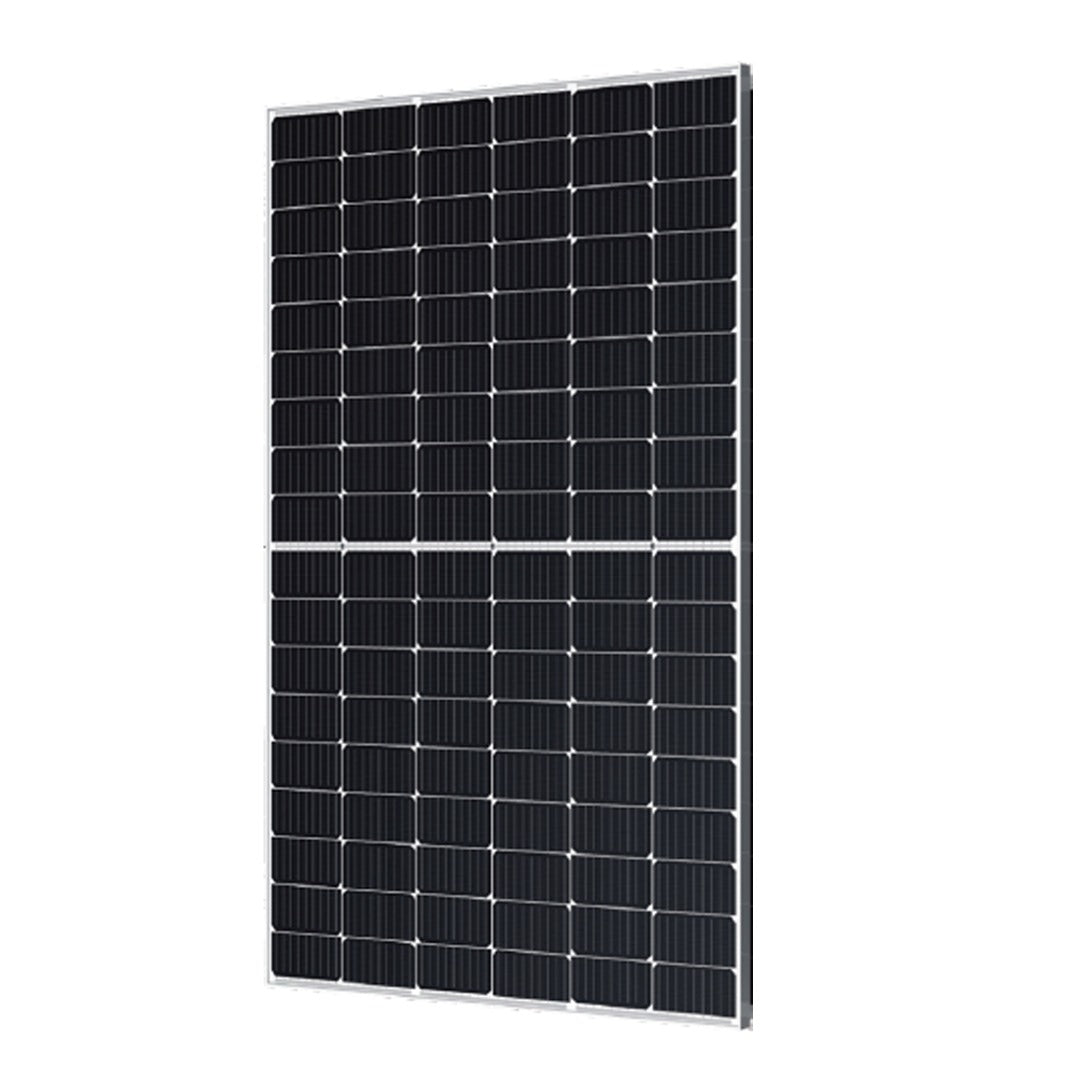

Monocrystalline Bifacial Panel JA Solar JAM66D46 LB 710W N-type TOPCon - 2384×1303×33 mm - 30 years warranty

JA Solar JAM66D46 LB 710Wis ultra powerfulbifacialphotovoltaic module built with innovativeN-type TOPContechnology. The panel is part of the new generationDeep Blue 4.0 Pro, designed for large-scale industrial solar parks and high power density systems. With a power of 710W, an efficiency of over 22% and a construction with glass on both sides, this panel provideshigh yield, durability and stable operationeven in extreme conditions.

Key benefits:

N-type TOPCon technology– low degradation, high stability and yield
Bifacial– up to 85% yield from the back side
High mechanical resistance– glass-glass construction tested up to 5400 Pa (snow) and 2400 Pa (wind)
Extremely high efficiency – over 22%
Suitable for 1500V systems– lower BOS costs
Long life– low annual degradation: only 0.4% from the second year
Certification: IEC 61215, IEC 61730, ISO 9001, ISO 14001, ISO 45001, CE, TÜV Rheinland

Warranty:

• 15 year product warranty

• 30 year linear power warranty
  ➤ Minimum 87.4% efficiency after 30 years

Applications:

• High density solar parks

• Ground energy export systems

• Industrial roof installations

• Projects with limited space requiring maximum yield

JA Solar JAM66D46 LB 710W Bifacialcombines cutting-edge technology, strength and durability – an ideal choice for large-scale solar projects with a focus on efficiency and long-term returns.

We inform you that, despite our efforts, we cannot guarantee that the published information and photos do not contain inaccuracies or errors that cannot be a legal basis for claims.

Technical characteristics:

✅ Model: JAM66D46 LB 710W
✅ Cell type:Monocrystalline, N-type TOPCon
✅ Number of Cells: 132 half-cell (6×22)
✅ Power (STC): 710 W
✅ Module efficiency: 22.3%
✅ Dimensions:2384 × 1303 × 33 mm
✅ Weight:38.7 kg
✅ Operating Voltage (Vmp): 43.49 V
✅ Operating current (Imp): 16.33 A
✅ Open Circuit Voltage (Voc): 48,60 V
✅ Short circuit current (Isc): 17.06 A
✅ Max. system voltage: 1500 V DC
✅ Connectors: MC4-EVO2, IP68
✅ Glass type:Tempered, 2.0 mm front and back (glass-glass)
✅ Cables:1300 mm, 4.0 mm²
✅ Temperature coefficient (Pmax): -0.29%/°C
✅ Operating temperature:-40°C to +85°C
✅ Degree of protection: IP68​
