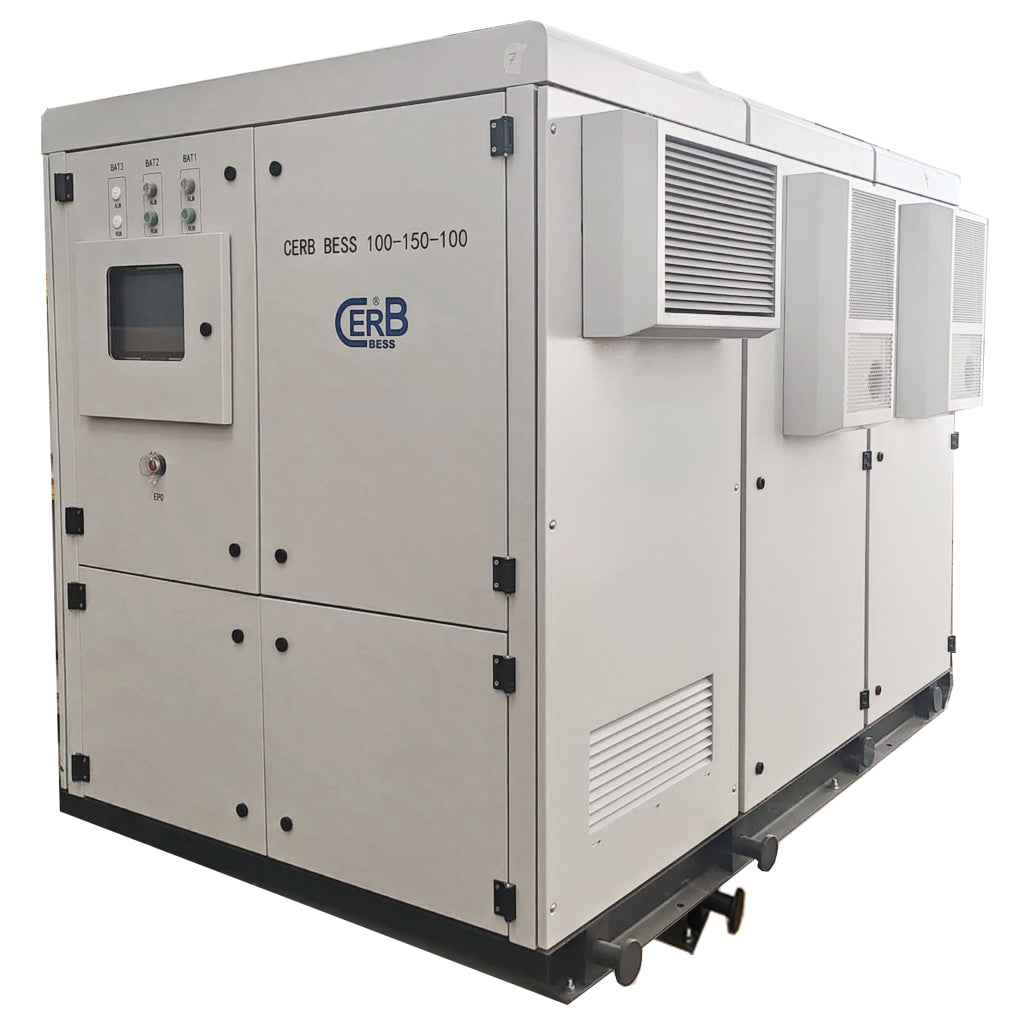

Energy storage system, CERB BESS-100-150-100

Product Description CERB BESS-100-150-100

CERB BESS-100-150-100 is an innovative energy storage system that uses lithium iron phosphate batteries (LiFePO4) to ensure safety, reliability and long life. Designed for use in both grid and off-grid systems, this battery system is ideal for integration with renewable energy sources such as solar and wind power.

Characteristics

•Capacity and power:
• Nominal output power: 100 kW
Rated current: 151 A
•Total battery capacity: 153.6 kWh
•Batteries:
•Cell type: Lithium-iron-phosphate (LiFePO4), which ensures high safety and long service life.
•Three-level hierarchical battery management system (BMS), ensuring the safe operation of the system.
•Charge with a current of up to 2C and discharge with a current of up to 6C, ensuring fast action and efficiency.
•Construction:
• Reinforced steel construction of the battery modules, ensuring maximum safety during transport, installation and operation.
•Compact construction with low weight, which allows easy installation and lower costs.
•Efficiency:
•High energy density of the modules, which allows optimal management and simplified service.
• Output overload up to 105% and input current distortion (THDI) below 3% at rated power.
• Power factor over 0.99, adjustable from +1 (inductive) to -1 (capacitive).
•Communication:
• Communication interfaces: RS485, CAN, LAN
•Supported communication protocols: Modbus-RTU, Modbus-TCP, CAN2.0B
•Monitoring and control:
•Intelligent air cooling and touch display for easy control.
•Modular construction allows for future expansion and simplified service.

Applications:

CERB BESS-100-150-100 is suitable for a variety of applications including:
•Energy storage from RES: Ideal for storing energy from renewable sources such as solar and wind power, providing a sustainable solution for power grid management.
•Energy optimization: Used for optimization of energy consumption in microgrids and mobile energy sources.
•Replacement of diesel generators: Allows replacement of traditional diesel generators, providing a more ecological and economical solution.
•Protection of industrial objects: Provides protection of industrial sites by guaranteeing uninterrupted power supply.
•Frequency regulation and compensation: Used for frequency regulation and compensation in electrical networks, improving power quality.

The CERB BESS-100-150 offers a reliable and efficient energy storage solution that is ideal for integration into modern energy systems.

We inform you that, despite our efforts, we cannot guarantee that the published information and photos do not contain inaccuracies or errors that cannot be a legal basis for claims.

• 100 kW– Output power of the battery system
• 150 kWh– Battery capacity
• 100 kW– Input power from the photovoltaic system

Datasheet:bess_datasheet_

Features:

• Capacity and Power:
  • Rated output power: 100 kW
  • Rated current: 151 A
  • Rated voltage: 380 V (3W+N+PE)
  • Mains voltage range:-15% to +10%
  • Nominal mains frequency: 50/60 Hz
  • Mains frequency range: ±2 Hz
  • Input Current Distortions (THDI):<3% (at rated power)
  • Power factor (cos ϕ):>0.99, adjustable from +1 (inductive) to -1 (capacitive)
  • Output overload: 105%
• Batteries:
  • Type:Lithium iron phosphate (LiFePO4)
  • Total battery capacity: 153.6 kWh
  • Number of battery modules: 10
  • Booking time:1.5 hours at full power (possibility to increase by adding more modules)
  • Guaranteed battery life:Over 4000 cycles at 80% residual capacity
• Performance and Durability:
  • High energy density:It allows for more efficient management and simpler servicing.
  • Temperature range:Operational from -10°C to 50°C, with a recommended range of 15°C to 30°C.
  • Operating Altitude:Up to 4000 m (with reduced power above 2000 m).
• Construction and Installation:
  • Compactness and Low weight:Minimal installation area and low installation costs.
  • Intelligent air cooling:Ensures optimal performance and long service life.
  • Touch screen:Allows easy access and management.
  • Network/Island Mode Switch:STS (Static Thyristor)
• Communication and Control:
  • Communication interfaces: RS485, CAN, LAN
  • Communication protocols: Modbus-RTU, Modbus-TCP, CAN2.0B
• Dimensions and Weight:
  • Dimensions:1300mm (width) x 2300mm (depth) x 1600mm (height)
  • Table:2500 kg
  • Technical characteristics: Datasheet
