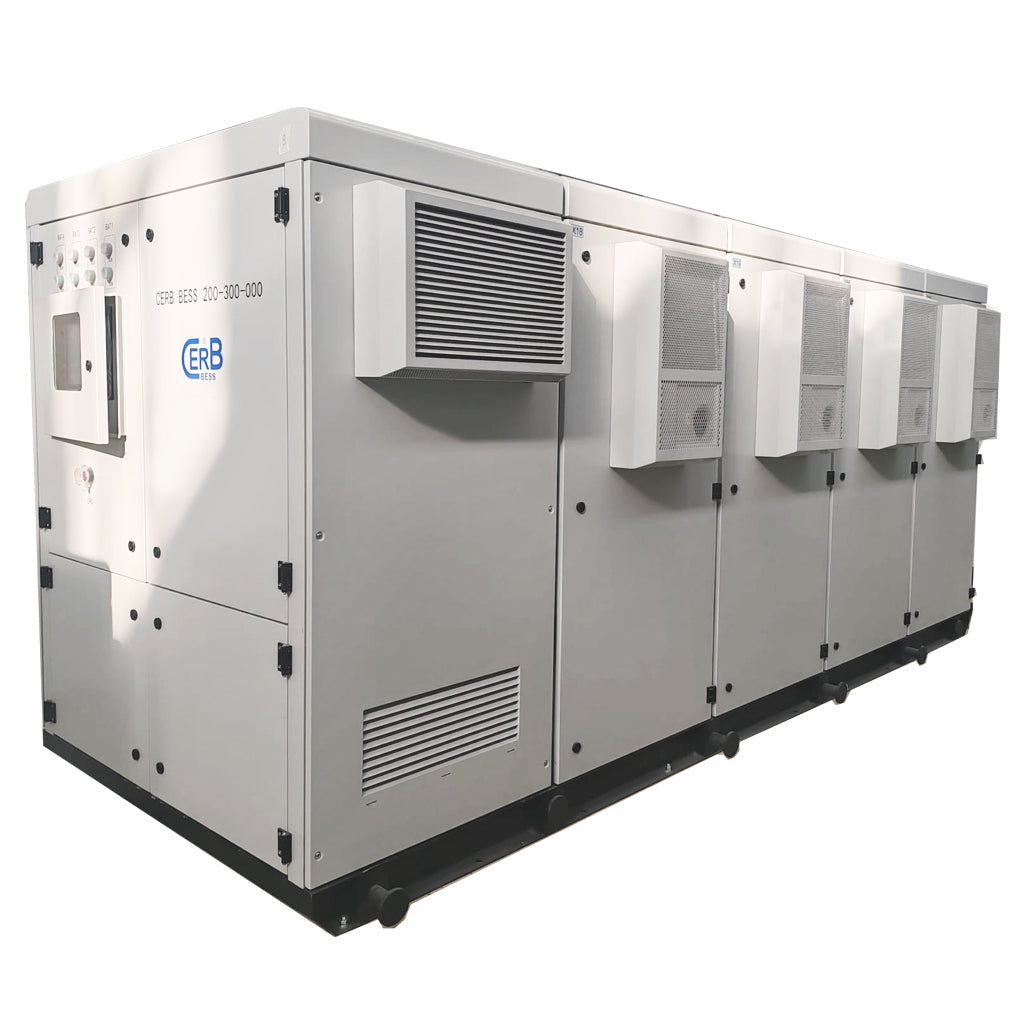

Energy storage system, CERB BESS 200-300-000

Product description CERB BESS-200-300-000:

The CERB BESS-200-300-000 is an advanced grid-connected renewable energy storage (BESS) battery system that provides a highly efficient and reliable electrical energy management solution. Designed to operate in both grid mode (ongrid) and island mode (offgrid), this system is extremely flexible and suitable for a variety of industrial and commercial applications.

Features:

•Capacity and power:
• Nominal output power: 200 kW
•Rated current: 303 A
•Total battery capacity: 307.2 kWh
•Batteries:
•Cell type: Lithium-iron-phosphate (LiFePO4), ensuring high safety and long service life.
• Three-stage hierarchical battery management system (BMS) ensuring safe operation and optimal energy management.
•Ability to charge with a current of up to 2C and discharge with a current of up to 6C, which allows a quick response of the system under different load conditions.
•Construction:
•Strong steel construction of the battery modules, which ensures maximum safety during transport, installation and operation.
•Compact and lightweight construction that reduces installation costs and takes up minimal space.
•Efficiency:
• High energy density of the modules, ensuring efficient management and simplified service.
• Output overload up to 105% and input current distortion (THDI) below 3% at rated power.
• Power factor above 0.99 with the possibility of adjustment from +1 (inductive) to -1 (capacitive).
•Communication:
• Communication interfaces: RS485, CAN, LAN
•Supported communication protocols: Modbus-RTU, Modbus-TCP, CAN2.0B
•Monitoring and control:
•Intelligent air cooling and touch display for easy control.
•Modular construction allows for future expansion and simplified service.

Applications:

CERB BESS-200-300-000 is suitable for many applications including:
•Energy storage from RES: Ideal for storing energy from renewable sources such as solar and wind, helping to manage the electricity grid sustainably.
•Energy optimization: Used for optimization of energy consumption in microgrids and mobile energy sources.
•Replacement of diesel generators: Provides a greener and more economical alternative to traditional diesel generators.
•Protection of industrial objects: Guarantees uninterrupted power supply that protects critical industrial processes.
•Frequency regulation and compensation: Used to improve power quality through frequency regulation and compensation.

The CERB BESS-200-300-000 offers an efficient and reliable energy storage solution that is ideal for integration into modern energy systems, providing high performance and sustainability.

We inform you that, despite our efforts, we cannot guarantee that the published information and photos do not contain inaccuracies or errors that cannot be a legal basis for claims.

• 200 kW– Output power of the battery system
• 300 kWh– Battery capacity

Features:

• Capacity and Power:
  • Rated output power: 200 kW
  • Rated current: 303 A
  • Rated voltage: 380 V (3W+N+PE)
  • Mains voltage range:-15% to +10%
  • Nominal mains frequency: 50/60 Hz
  • Mains frequency range: ±2 Hz
  • Input Current Distortions (THDI):<3% (at rated power)
  • Power factor (cos ϕ):>0.99, adjustable from +1 (inductive) to -1 (capacitive)
  • Output overload: 105%
• Batteries:
  • Type:Lithium iron phosphate (LiFePO4)
  • Total battery capacity: 307.2 kWh
  • Number of battery modules: 20
  • Booking time:1.5 hours at full power (possibility to increase by adding more modules)
  • Guaranteed battery life:Over 4000 cycles at 80% residual capacity
• Performance and Durability:
  • High energy density:It provides more efficient management and easier service.
  • Temperature range:Operational from -10°C to 50°C, with a recommended range of 15°C to 30°C.
  • Operating Altitude:Up to 4000 m (with reduced power above 2000 m).
• Construction and Installation:
  • Compactness and Low weight:Minimum installation area and low installation costs.
  • Intelligent air cooling:Ensures optimal performance and long service life.
  • Touch screen:For easy access and system management.
  • Network/Island Mode Switch:STS (Static Thyristor)
• Communication and Control:
  • Communication interfaces: RS485, CAN, LAN
  • Communication protocols: Modbus-RTU, Modbus-TCP, CAN2.0B
• Dimensions and Weight:
  • Dimensions:2400mm (width) x 1540mm (depth) x 2300mm (height)
  • Table:4600 kg
  • Technical characteristics: Datasheet
