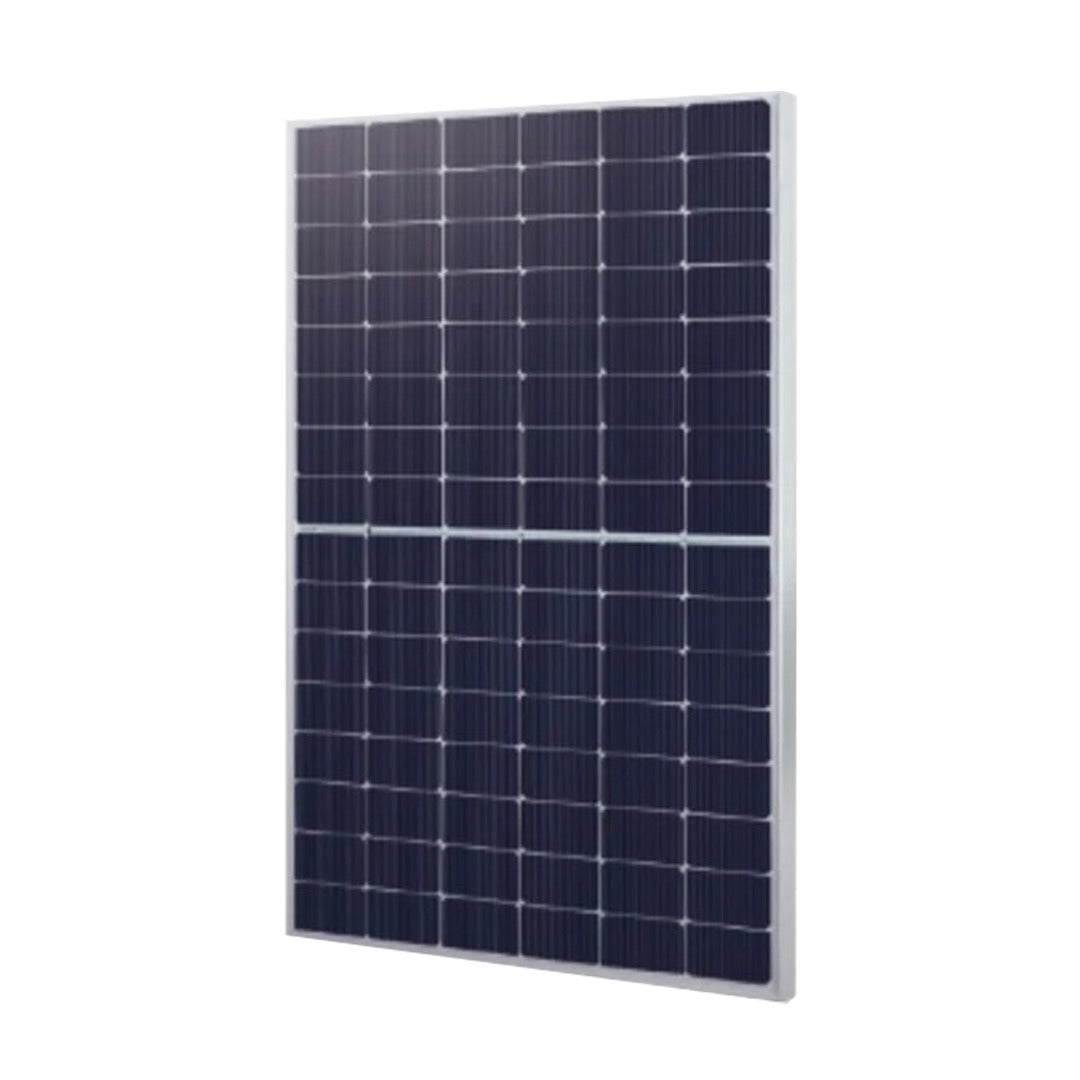

Solar Panel GCL NT12R/48GDF 450W N-Type Bifacial Double Glass

GCL NT12R/48GDF 450W is a high-efficiency bifacial solar panel of a new generation, built with N-type monocrystalline cells and Double Glass technology. The panel is designed for maximum performance, long service life and high resistance in different climatic conditions. It is suitable for both rooftop systems and industrial and commercial photovoltaic installations.

Electrical parameters (STC)

• Maximum power (Pmax): 450W
• Open Circuit Voltage (Voc): 35.05V
• Short circuit current (Isc): 15.95A
• Operating voltage (Vmp): 29.71V
• Operating current (Imp): 15.15A
• Module efficiency: 22.52%

Mechanical characteristics

• Cell Type: N-Type Monocrystalline
• Number of cells: 96 (6×16)
• Dimensions: 1762 × 1134 × 30 mm
• Weight: 21.5 kg
• Front glass: 1.6 mm high clear solar glass
• Back glass: 1.6 mm tempered glass
• Frame: Anodized aluminum
• Junction Box: IP68
• Cables: 4.0 mm²
• Connector: MC4 compatible

Advantages of the panel

N-Type technology with lower degradation
Bifacial design for extra energy yield
Double Glass construction for higher resistance
Excellent performance at high temperatures
High resistance to PID effect
Reduced risk of hotspot effect
Suitable for harsh climatic conditions

Temperature characteristics

• Temperature coefficient (Pmax): -0.29%/°C
• Temperature coefficient (Voc): -0.25%/°C
• Temperature coefficient (Isc): +0.045%/°C

Reliability and protection

Maximum system voltage: 1500V DC
Maximum fuse current: 35A
Operating temperature: -40°C to +85°C
Load resistance:

• Wind: 2400 Pa
• Snow: 5400 Pa

Application

Home photovoltaic systems
Roof installations
Ground solar parks
Industrial and commercial projects
Bifacial systems with increased yield

Warranty

• 12 year product warranty
• 30 year linear power warranty

We inform you that, despite our efforts, we cannot guarantee that the published information and photos do not contain inaccuracies or errors that cannot be a legal basis for claims.

Main features

✅ Power: 450W
✅ Technology: N-Type Bifacial Double Glass
✅ Module efficiency: up to 22.52%
✅ Dimensions: 1762 × 1134 × 30 mm
✅ Two-sided energy production: Bifacial
✅ Low degradation and high durability
✅ Excellent low light performance
✅ Suitable for roof and ground photovoltaic systems
