MINIB Design convector SD

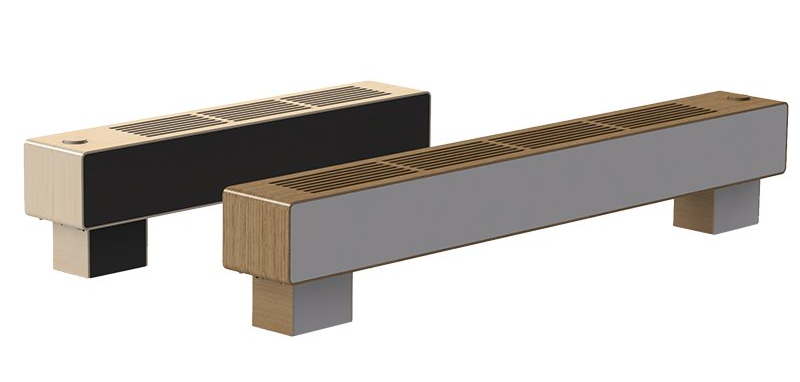

MINIB SD - Designer free-standing convector Premium design solution for modern interiors. With fan Heating Dry rooms Technical parameters Heat output Q [W] at different lengths and speeds of the fan. Conditions: water 75/65°C, air 20°C. Heating 900 1000 1250 1500 1750 2000 2250 2500 2750 3000 Q [W] (0) - no 97 108 135 162 189 216 243 270 297 324 Q [W] (1) - low 446 495 619 743 866 990 1114 1238 1361 1485 Q [W] (2) - medium 632 702 878 1053 1229 1404 1580 1755 1931 2106 Q [W] (3) - high 810 900 1125 1350 1575 1800 2025 2250 2475 2700 The technical parameters are set according to the relevant standards. Actual values ​​may vary depending on placement, grid type and connection. Specifications Width 200 mm Height 600 / 800 / 1000 mm Length Fixed dimensions mm Power 900 W Features: Freestanding designer Premium look Color options Documentation 📄 Download technical sheet (PDF) Manufacturer: MINIB - www.minib.cz
