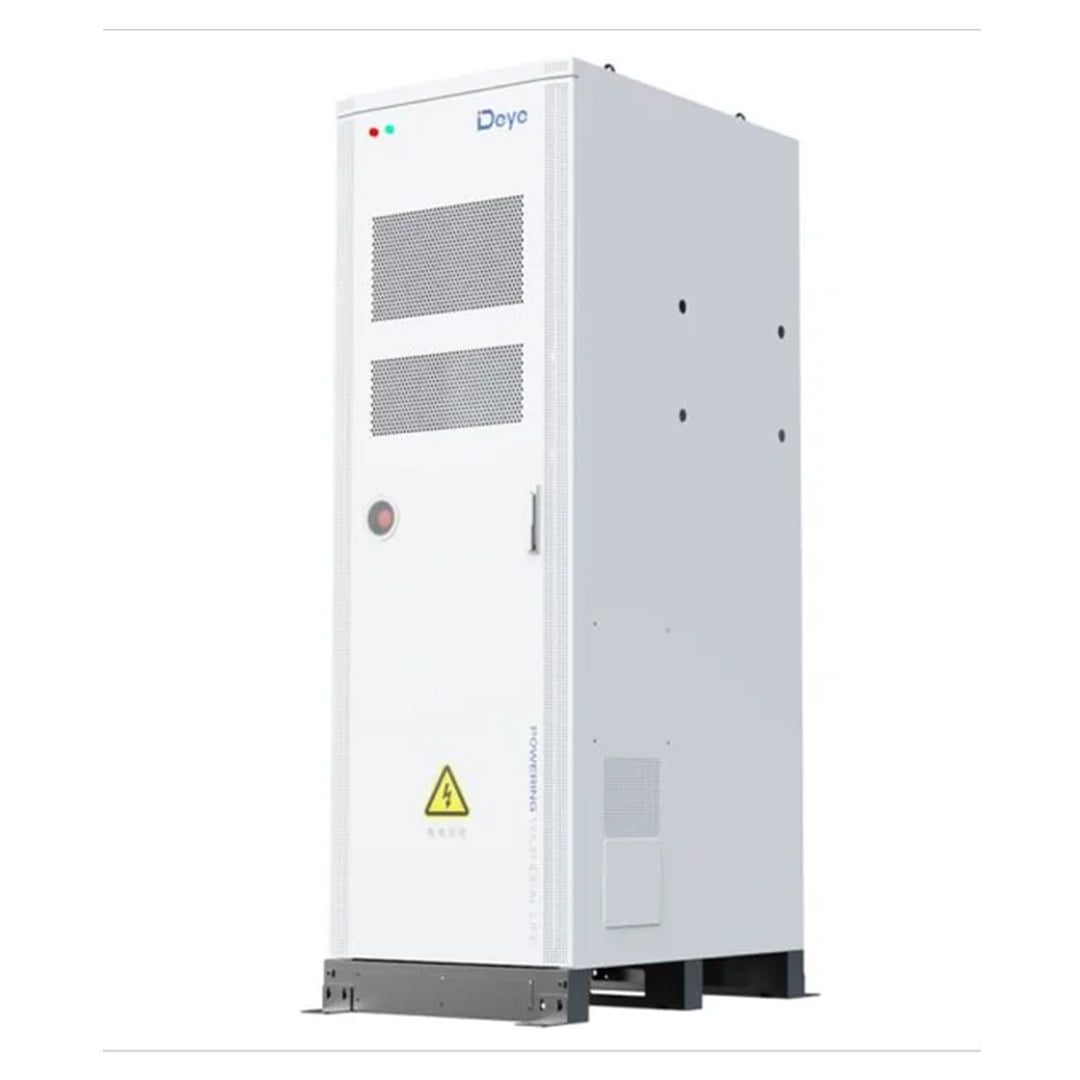

DEYE ESS 60kWh – Battery Cabinet (only battery, no inverter)

DEYE ESS 60kWhishighly efficient energy storage system, designed for commercial and industrial applications. That's itmodular and scalable battery with a capacity of 60 kWh, integrated intostrong and safe cabinet, which provides reliability, easy installation and a long service life.

This configuration includesonly the battery cabinet, without inverter, which allows flexible selection of a compatible inverter according to the specific needs of the project.

Technical characteristics:

• Battery Type:Lithium iron phosphate (LiFePO4)

• Total capacity: 60 kWh

• Rated voltage: 768V DC

• Operating current:up to 100A

• Cycle life:≥6000 cycles (90% DOD)

• Dimensions:approximately 1200 x 600 x 1800 mm(may vary)

• Installation:Free-standing cabinet (rack-mounted system)

• Cooling:Built-in natural or forced cooling

• Operating temperature:-10°C to +50°C

• Communication:CAN / RS485 to inverter and EMS

The set includes:

• Battery cabinet with integrated LFP modules

• Built-in BMS (Battery Management System)

• Power cables and communication interface

• Installation and operation manual

Applications:

• Commercial Photovoltaic Systems

• Industrial sites with high consumption

• Hybrid and off-grid installations

• Uninterruptible Power Supply (UPS)

• Peak load and reduce electricity costs

• Warranty and Support:

• Warranty:10 years /6000 cycles

• Support:Provided by certified DEYE partners

• Option to extend the warranty upon request

• We inform you that, despite our efforts, we cannot guarantee that the published information and photos do not contain inaccuracies or errors that cannot be a legal basis for claims.

Main advantages:

• ✅ Capacity 60kWh– ideal for load balancing, peak load and backup power

• ✅ Modular design– composed of several LFP modules (Lithium Iron Phosphate) assembled in an industrial cabinet

• ✅ Intelligent BMS control– protection from overvoltage, portability, high temperature, etc.

• ✅ Compatibility with hybrid and off-grid inverters from DEYE and other manufacturers

• ✅ Suitable for outdoor installation - IP55

• ✅ Extended life– above6000 cycles at 90% DOD

• ✅ Integration with Energy Management Systems (EMS)

• ✅ Safety and Certification: CE, UN38.3, IEC62619
