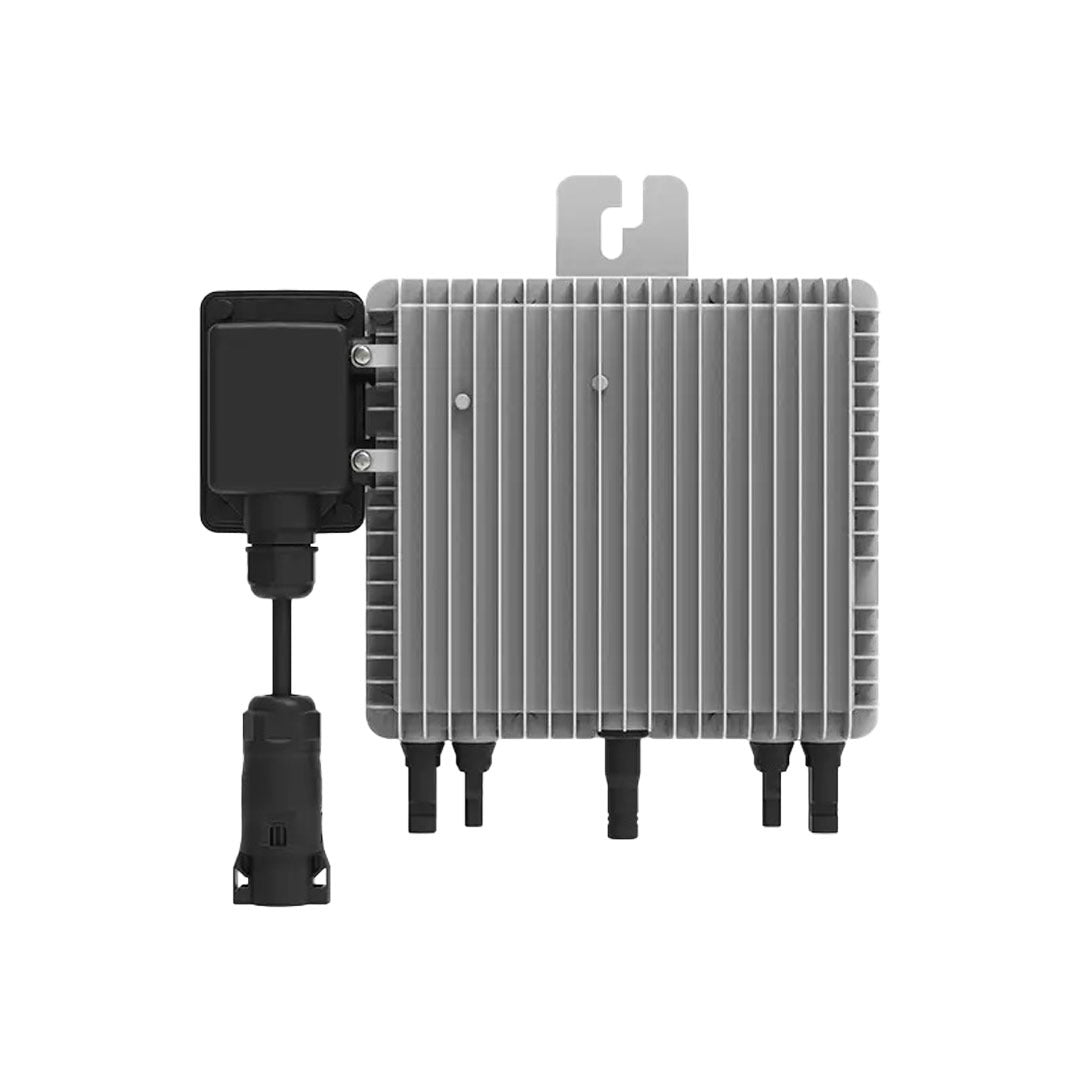

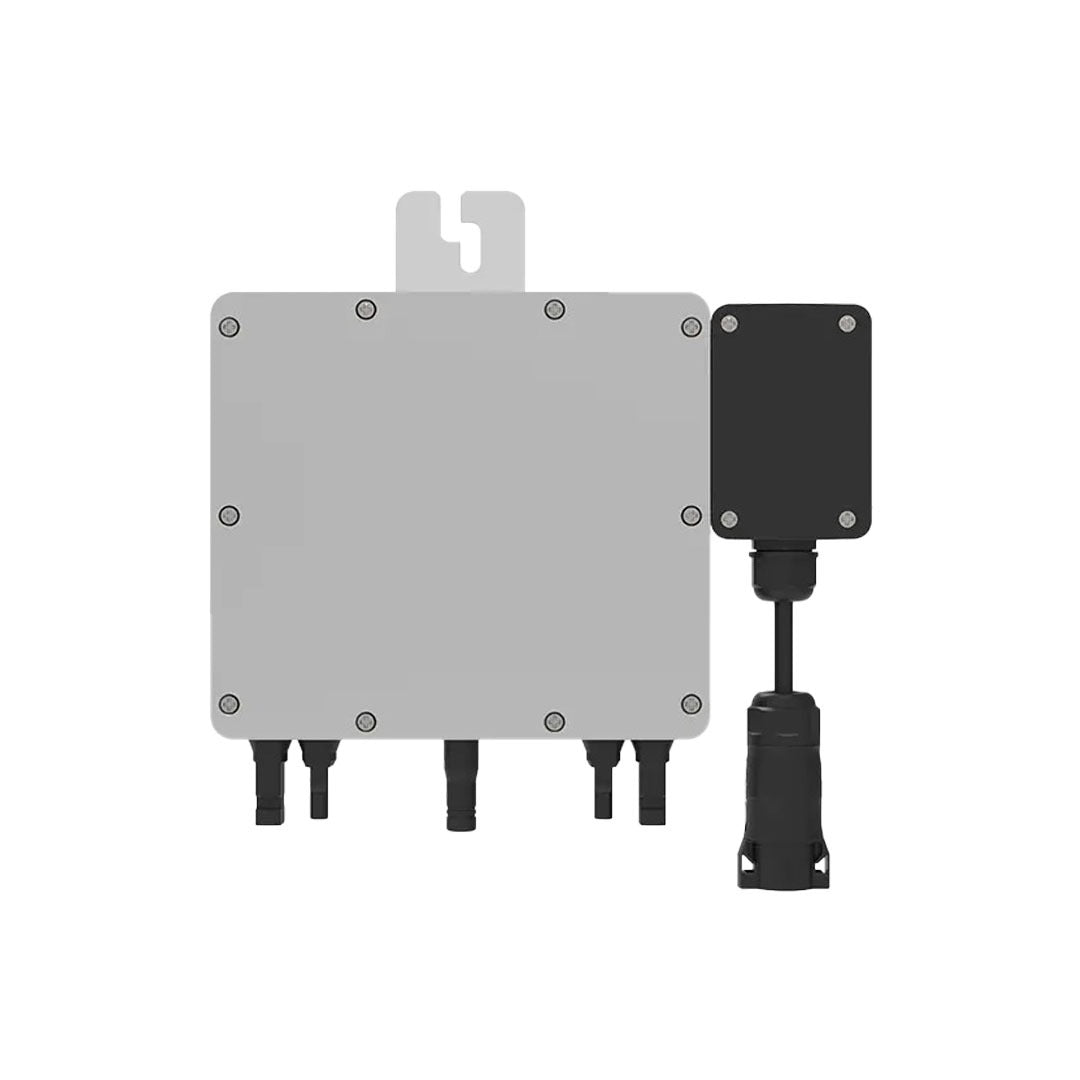

DEYE Micro Inverter SUN-M80G4-EU-Q0

Microinverter 800W, 2 MPPT, WiFi, IP67

DEYE SUN-M80G4-EU-Q0 is a high-efficiency microinverter designed for photovoltaic systems with modular control. Thanks to the two independent MPPT trackers, the device optimizes energy production at the panel level, resulting in higher efficiency and better partial shading performance.

The microinverter is extremely suitable for small rooftop systems, balcony solar solutions and home installations. The built-in WiFi module allows for easy real-time monitoring via a mobile app.

With an IP67 degree of protection, the device is resistant to dust and water, making it a reliable solution for outdoor installation. It also supports a rapid shutdown function, providing additional safety.

Main advantages

2 MPPT trackers – panel level optimization
Built-in WiFi for monitoring
IP67 protection - suitable for outdoor conditions
Rapid shutdown function
High efficiency up to 96.5%
Easy installation (plug & play)
Suitable for balcony and small PV systems
Long life – up to 25 years of design

Efficiency

Maximum efficiency: 96.5%
European efficiency: 96.0%
MPPT efficiency: >99%

Protect

Reverse polarity protection
Short circuit protection
Surge protection
Anti-islanding protection
SPD protection type II (AC)

General characteristics

Communication: WiFi
Degree of protection: IP67
Cooling: passive (Natural Cooling)
Operating temperature: -40°C to +65°C
Noise level: ≤25 dB
Dimensions: 280.5 × 190 × 40 mm
Weight: ~3 kg
Warranty: 15 years

Application

Balcony solar systems
Small roof installations
Home PV systems
Systems with modular control

We inform you that, despite our efforts, we cannot guarantee that the published information and photos do not contain inaccuracies or errors that cannot be a legal basis for claims.

Technical characteristics

✅ Maximum PV power: up to 560 W (2 modules)
✅ Maximum PV voltage: 60 V
✅ Starting voltage: 20 V
✅ MPPT range: 25 – 55 V
✅ Nominal PV voltage: 42.5 V
✅ Maximum input current: 13 A + 13 A
✅ Short circuit current: 19.5 A + 19.5 A

AC output

✅ Nominal power: 800 W
✅ Maximum power: 800 VA
✅ Nominal current: 3.7 / 3.5 A
✅ Mains voltage: 220 / 230 V
✅ Frequency: 50 / 60 Hz
