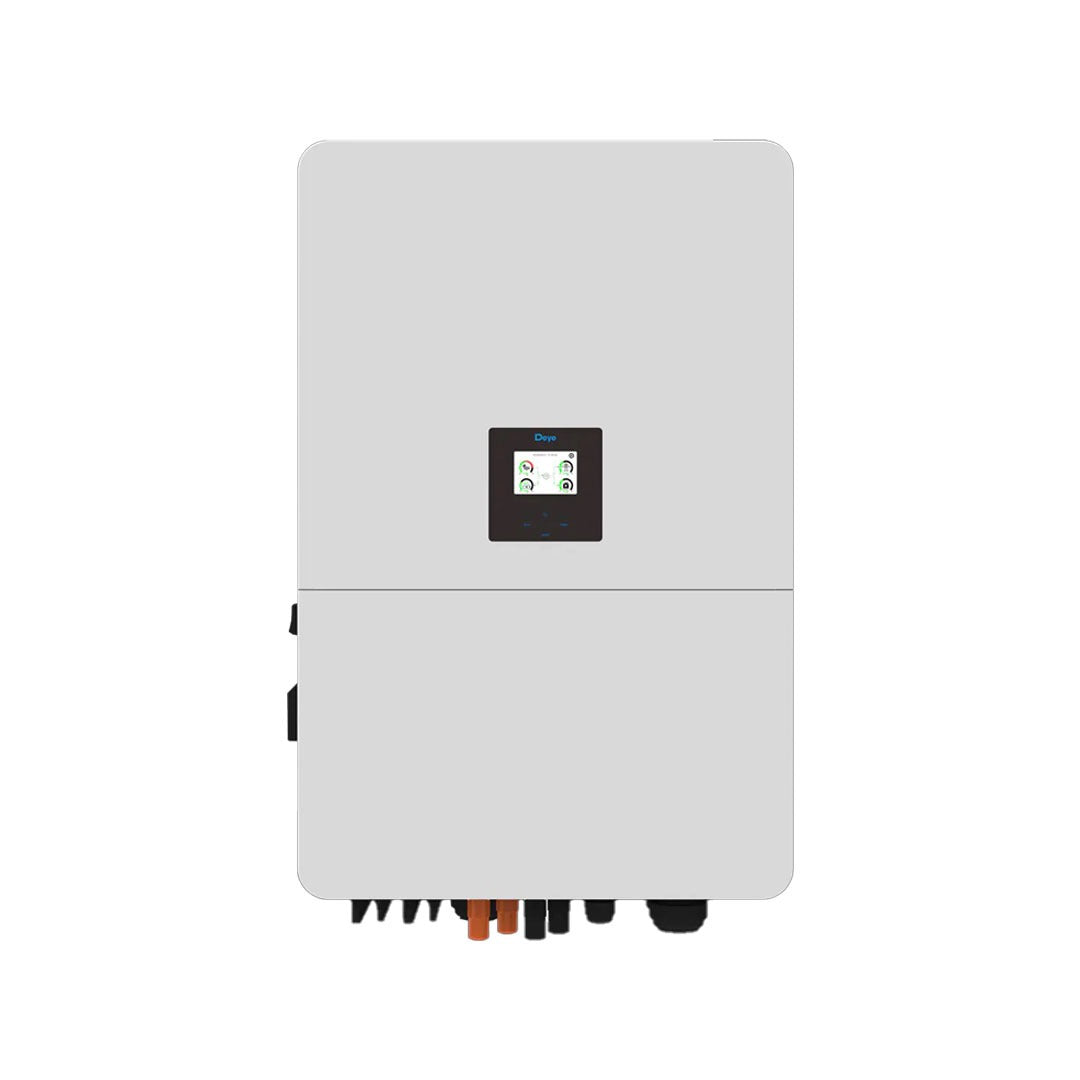

DEYE SUN-10K-SG01HP3-EU-AM2 (DM2) – Three Phase Hybrid Inverter | 10 kW | High Voltage | 3 MPPT | Wi-Fi | 10 year warranty

DEYE SUN-10K-SG01HP3-EU-AM2 (DM2)is a new generation high-voltage three-phase hybrid inverter designed for HV battery systems (160–700V), which provides higher efficiency, lower currents and lower losses.
The model hastwo powerful MPPT trackers, supportsAC-coupling, up to 10 parallel devices, as well as100% unbalanced three-phase output— a critical advantage for the European market.

With the ability to work simultaneously with PV, battery, grid and generator, the device guarantees maximum flexibility and energy independence.
IP65 protection, intelligent cooling and a rich protection scheme ensure a long service life in all conditions.

 Efficiency

Maximum efficiency: 97.6 %
European efficiency: 97.0 %
MPPT efficiency: >99 %
DC injection current: <0.5 %

Construction and interfaces

Dimensions: 376 × 470 × 244,5 mm
Weight: 24 kg
Degree of protection: IP65
Cooling: Natural + Intelligent Air Cooling
Operating temperature:–40°C to +60°C (derating above +45°C)
Humidity: 0–100 %
Installation height:up to 2000 m
Noise: ≤45 dB
Topology: Non-isolated
Connect to the network: 3L + N + PE
Communications: RS485 / RS232 / CAN
Monitoring: WiFi / GPRS / Bluetooth / 4G

Key benefits

100% unbalanced output– unique to DEYE
High Voltage battery → higher system efficiency
AC coupling– suitable for retrofit installations
Parallel operation of up to 10 inverters– on-grid and off-grid
Max. charge/discharge current 50 A
Compatible with diesel generator
6 time periods for charge/discharge
Support multiple HV batteries in parallel
LCD display + LED indication

Protect

 DC Reverse Polarity Protection
 AC Output Overcurrent Protection
 Thermal Protection
 AC Output Overvoltage Protection
 AC Short-Circuit Protection
 DC Component Monitoring
Arc Fault Circuit Interrupter (option)
 Anti-islanding
 Insulation Impedance Detection
 Residual Current Detection
Built-in DC Switch
SPD Type II (DC) and SPD Type II (AC)

Warranty

10 year warranty

Summary

Power: 10 kW
Battery: High Voltage (160–700V)
MPPT: 2
PV Power:up to 16 kW
Parallel connection:up to 10 inverters
Features: Zero Export, Smart Load, AC-Coupling
Warranty:10 years

We inform you that, despite our efforts, we cannot guarantee that the published information and photos do not contain inaccuracies or errors that cannot be a legal basis for claims.

Technical characteristics

PV parameters

✅ Maximum PV power: 20,000 W
✅ Maximum PV voltage: 1,000 V
✅ Starting voltage: 180 V
✅ MPPT operating range: 160 – 700 V
✅ Nominal PV voltage: 600 V
✅ Number of MPPT trackers: 2
✅ PV inputs: 1 + 1
✅ Maximum PV current: 18 A + 18 A
✅ Max. short circuit current (Isc): 27 A + 27 A
