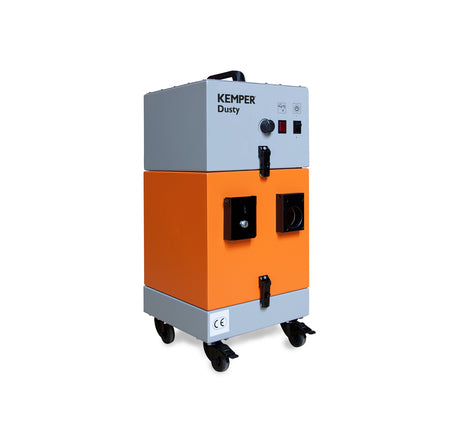

Kemper Dusty High Vacuum Smoke Extraction Filter Unit

High vacuum welding smoke extraction unit with two suction nozzles for sporadic use, for example, in repair work or for mobile use with low to medium amounts of dust. The manually cleanable KemTex® ePTFE filter cartridge makes the unit particularly economical.

Application:

• Low to medium levels of smoke and dust
• Nozzles, funnel and torch extraction
• Repair work
• Alternating work places

Benefits:

• Best health protection for employees by use of KemTex® ePTFE filter cartridges with surface filtration
• For mobile use due to light weight
• Optimal adjustment to the welding process with stepless speed control

Properties:

• Manual filter cleaning
• Cleaning indicator
• KemTex® ePTFE filter cartridge
• Portable and mobile
• Two suction nozzles
• Stepless speed control

Accessories:

• Suction hose
• Slot nozzle
• Funnel nozzle
• Connector for welding torches

Options:

• Other voltages
•


Downloads:

Datasheet (532,19 KB)

Technical Data:

Filter

Filter stages

1

Filter method

Cleanable filter

Filter cleaning method

Manual

Filter surface

1.35 m²

Type of filter

Filter cartridge

Filter material

ePTFE membrane

Filter efficiency

> 99.9 %

Dust classification

M

Basic data

Extraction capacity

260 m³/h

Fan performance

340 m³/h

Dimensions (w x d x h)

300 x 360 x 641 mm

Weight

24 kg

Motor power

1,6 kW

Power supply

1 x 230 V / 50 Hz

Rated current

8.7 A

Noise level

74 dB(A)

Additional information

Fan type

Suction turbine

Hose connection

Ø 2 x 45 mm
