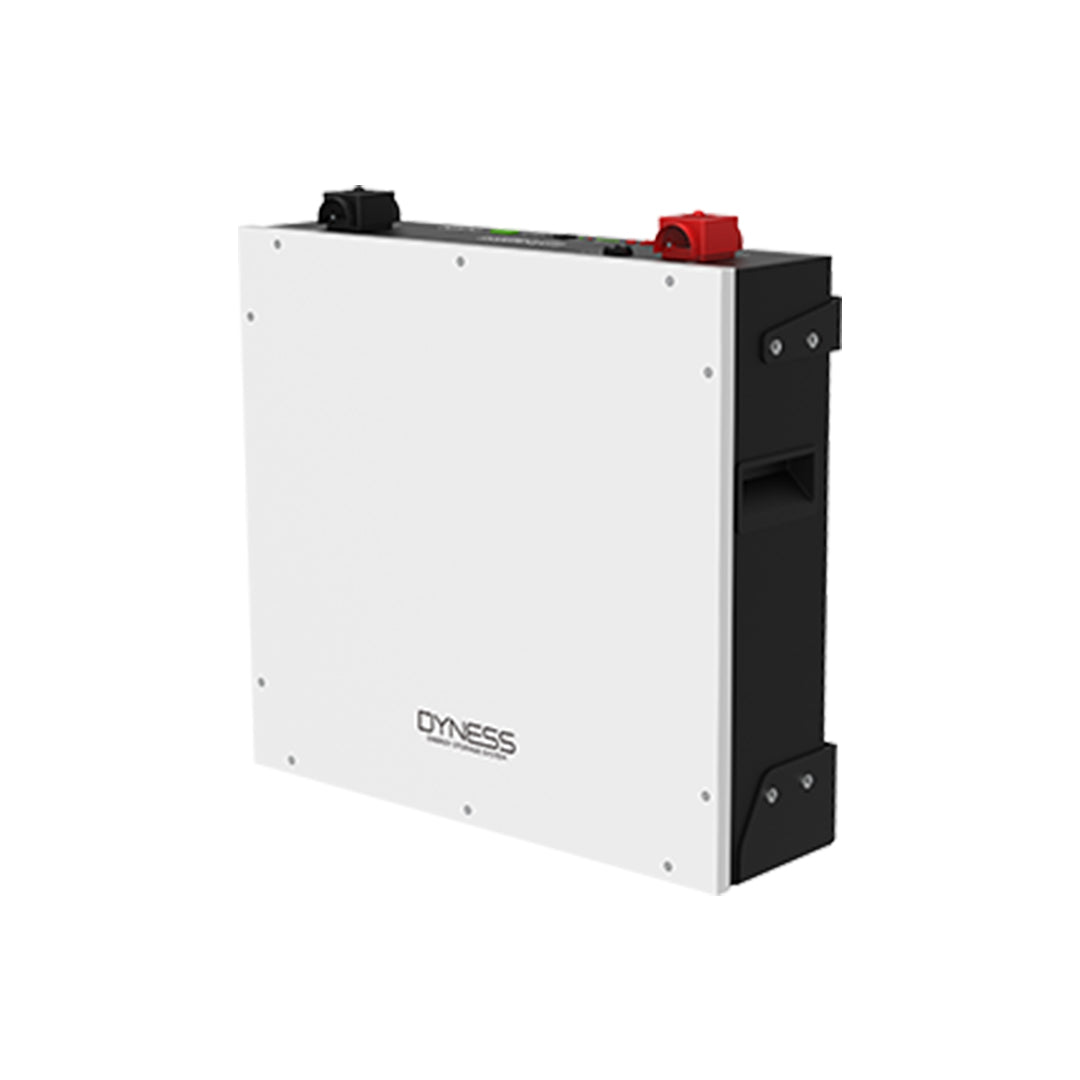

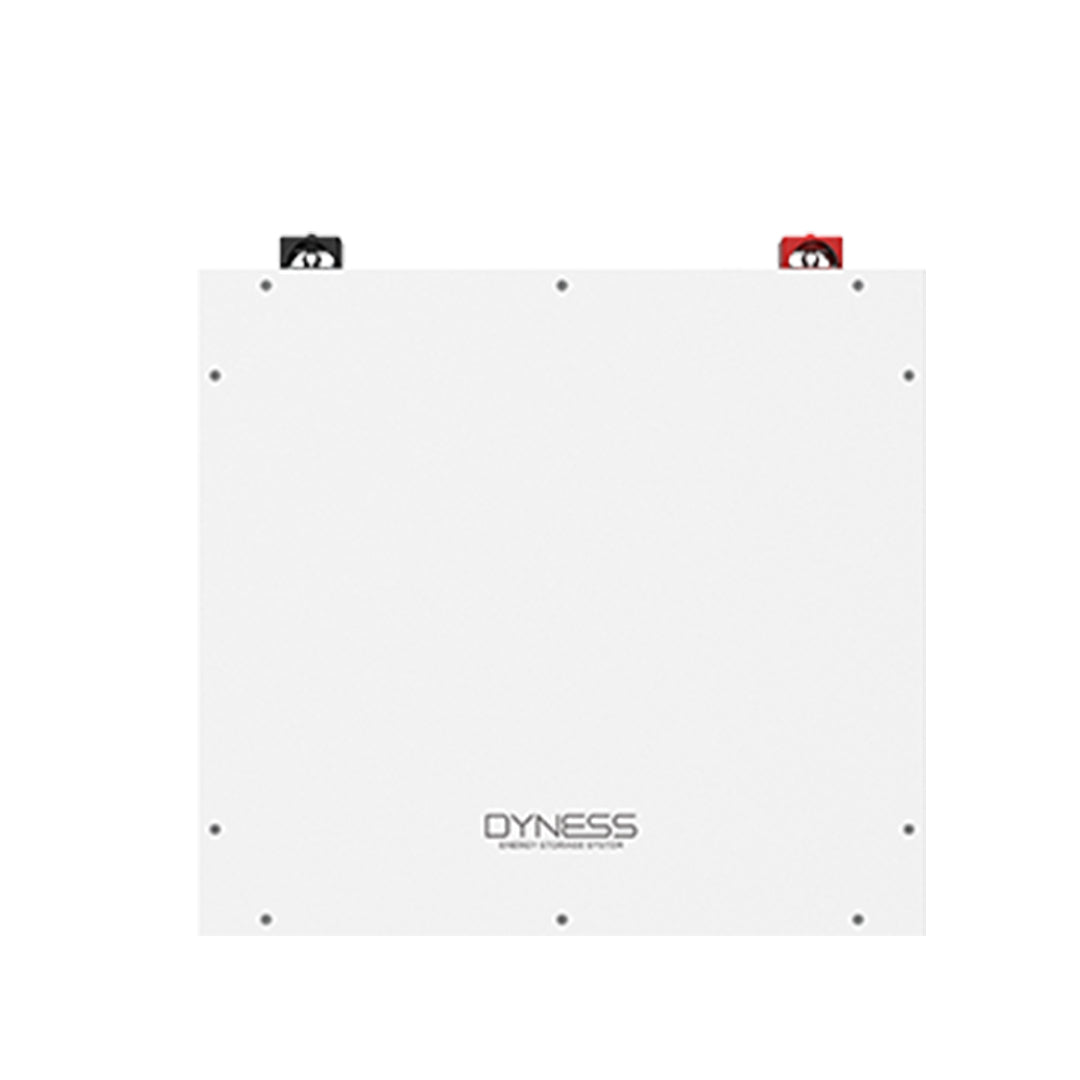

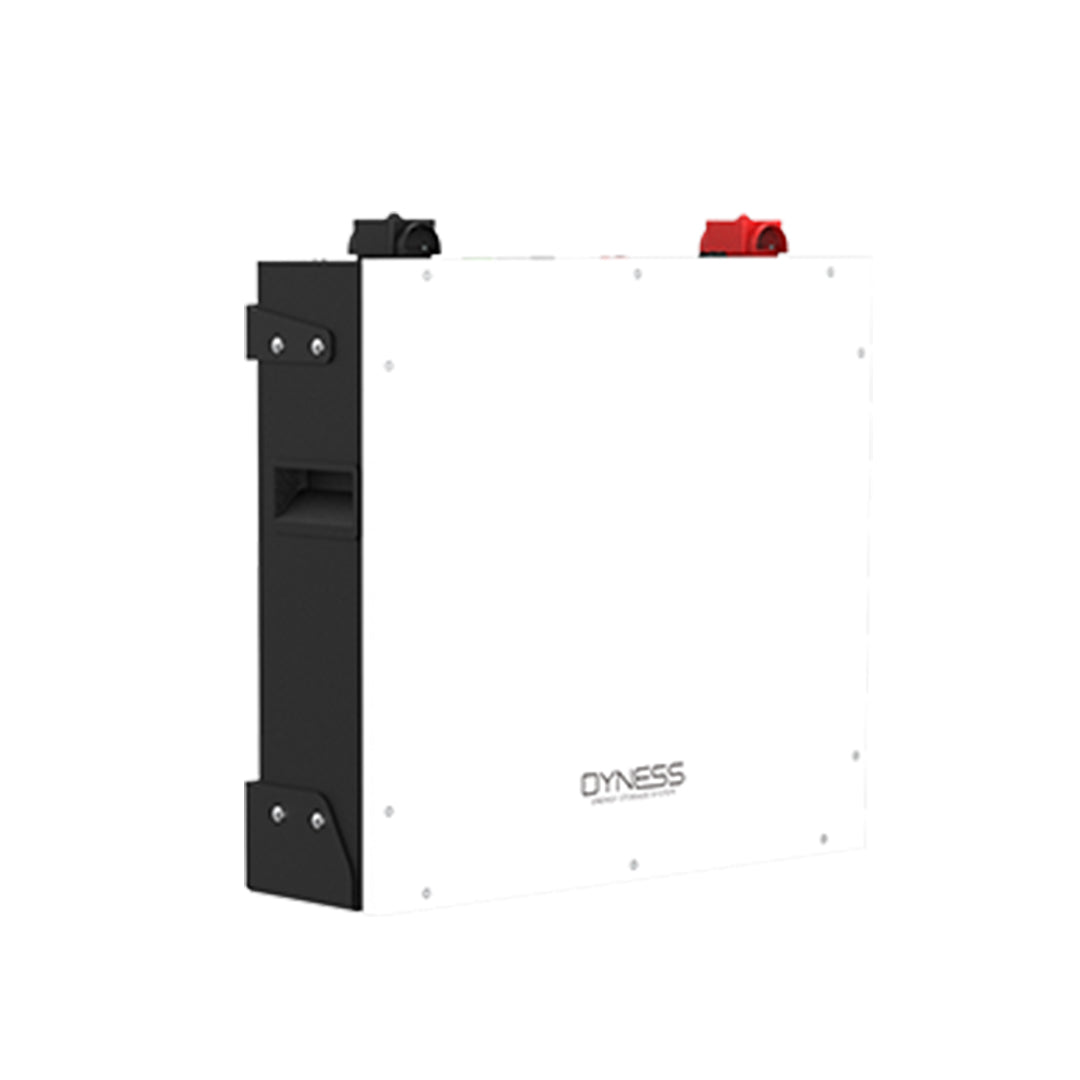

DYNESS DL5.0C Low voltage battery LiFePO4 5.12 kWh 100 Ah 51.2V IP20

The Dyness DL5.0C is a low voltage (LV) lithium iron phosphate (LiFePO4) battery designed for home and commercial power systems. With a capacity of 5.12 kWh, built-in Wi-Fi communication and the ability to connect up to 50 modules in parallel, it provides a flexible and reliable energy storage solution. It includes a heating system, making it suitable for cold climates.

Main features:

✅ High efficiency and reliability:

Lithium iron phosphate (LiFePO4) technology – long life and increased safety
Over 6000 charge-discharge cycles at 90% DOD
Built-in BMS (Battery Management System) for cell monitoring and balancing

✅ Flexible and scalable system:

Possibility of parallel connection of up to 50 modules
Compatible with leading inverters: SMA, Victron, Goodwe, Sungrow, Solis, SAJ and others

✅ Exceptional efficiency:

Nominal energy: 5.12 kWh
Nominal capacity: 100 Ah
Nominal voltage: 51.2V
Depth of Discharge (DOD): 90%

✅ High power and fast charging:

Maximum charge/discharge current: 100A
Operating voltage: 40 – 58.4V

✅ Compact and easy to install:

Dimensions: 480 × 450 × 132 mm
Weight: 38 kg
IP20 protection - suitable for indoor installation
Easy-Install design for quick and easy installation

✅ Advanced communication and monitoring:

Built-in Wi-Fi for remote monitoring
Supported interfaces: CAN / RS485
Mobile app to monitor battery health

✅ Heating function for cold climates:

Built-in heating for safe operation at low temperatures
Charging temperature range: 0~55°C
Discharge temperature range: -20~55°C

✅ Safety certifications:

UN38.3, CE-EMC, IEC62040, IEC62619, GOST-R, UKCA, CEC Accredited, CEI-021

Advantages of DYNESS DL5.0C Battery Module:

High reliability and safety with LiFePO4 cells
Easy scalability – up to 50 batteries in parallel
Compact design for quick installation
Built-in Wi-Fi communication for easy monitoring
Integrated heating system for optimal operation in cold conditions
Applications:

Residential and commercial energy systems
Solar hybrid and off-grid systems
Backup power and UPS solutions
Cold climate applications
Conclusion:

Dyness DL5.0C is an innovative, highly efficient and reliable energy storage solution, providing flexibility, easy installation and security. With built-in Wi-Fi, BMS system and heating function, this battery is ideal for smart energy solutions in both home and business.

DATASHEETDL5.0CdatasheetEN2024.12.26
CompatibilityDyness_Inversores_Compatibles
Installation Manual Dyness_DL5-0C_Manual
Certificates: DL3.6 &DL5.0 62619 Cert 64.280.23.60138.01
DL5.0C&DL5.0X 62619 CERT 64.280.23.60137.02
DL5.0C&DL5.0X 62619 CERT 64.280.23.60137.02-1
