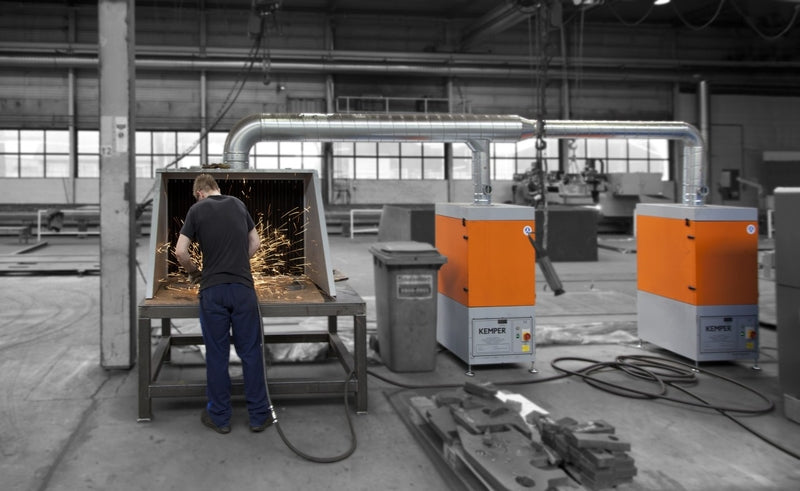

Kemper Filter-Cell XL Extraction Filter Unit

KEMPER Filter-Cell XL extraction filter unit with time-controlled, automatic filter cleaning is suitable for extraction via a pipe on exhaust hoods, tables and robot cells. The device is designed for high levels of smoke and dust during non-stop operation. The KemTex® ePTFE membrane filter cartridge for ultra-fine dust particles separates particles even below 0.1 µm.

Application:

• High levels of smoke and particles
• Non-stop operation
• For exhaust hoods, extraction tables and robot cells

Benefits:

• High efficiency due to automatic filter cleaning
• Space-saving due to compact design
• Easy installation since unit is delivered ready to plug in ("plug and play")
• Best health protection for employees by use of KemTex® ePTFE filter cartridge with surface filtration
• Safe operation by rotation field control

Properties:

• 160mm duct connection
• Automatic filter cleaning
• KemTex® ePTFE filter cartridge
• Height-adjustable feet
• Rotation field control

Options:

• Other voltages
•


Downloads:

Datasheet (222,68 KB)

Technical Data:

Filter

Filter method

Cleanable filter

Filter cleaning method

Rotating nozzle

Filter surface

10 m²

Type of filter

Filter cartridge

Filter material

ePTFE membrane

Filter efficiency

> 99.9 %

Dust classification

M

Basic data

Extraction capacity

1000 m³/h

Max. fan performance

3000 m³/h

Dimensions (w x d x h)

655 x 655 x 1460 mm

Weight

155 kg

Motor power

1,5 kW

Power supply

3 x 400 V / 50 Hz

Noise level

69 dB(A)

Additional information

Fan type

Radial fan
