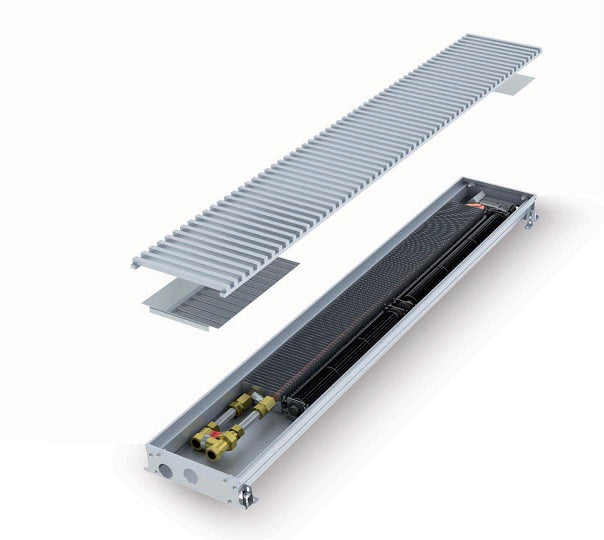

MINIB Floor convector T50

MINIB T50 - Floor convector T50 Ideal for residential, commercial and office premises. Suitable for installation under windows and glass facades. With fan Heating Dry rooms For heat pumps Technical parameters Heat output Q [W] at different lengths and speeds of the fan. Conditions: water 75/65°C, air 20°C. Heating 900 1000 1250 1500 1750 2000 2250 2500 2750 3000 Q [W] (0) - no 65 72 90 108 126 144 162 180 198 216 Q [W] (1) - low 297 330 413 495 578 660 743 825 908 990 Q [W] (2) - medium 421 468 585 702 819 936 1053 1170 1287 1404 Q [W] (3) - high 540 600 750 900 1050 1200 1350 1500 1650 1800 The technical parameters are set according to the relevant standards. Actual values ​​may vary depending on placement, grid type and connection. Specifications Width 109 mm Height 65 mm Length 900 - 3000 mm Power 600 W/m Features: Ultra compact EC motor 12V DC Very narrow channels Easy installation Grids and accessories Aluminum blind Wooden blind Aluminum silver Aluminum bronze Oak Beech Standard frame Documentation 📄 Download technical sheet (PDF) Manufacturer: MINIB - www.minib.cz
