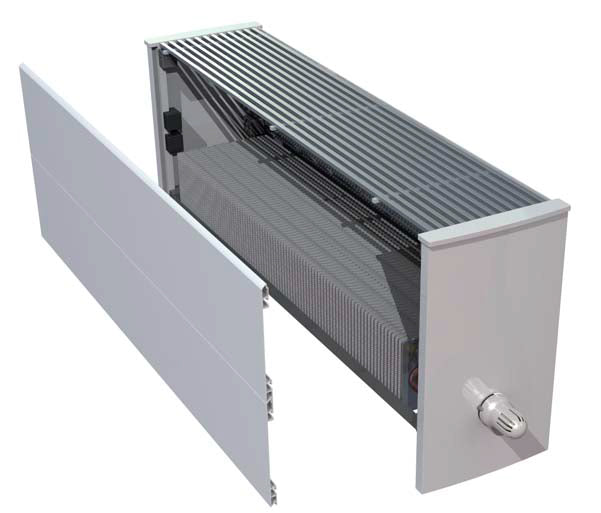

MINIB Standing convector SW420

MINIB SW420 - Standing convector wide 420mm Elegant solution for plinth installation under windows and in niches. With fan Heating Dry rooms For heat pumps Technical parameters Heat output Q [W] at different lengths and speeds of the fan. Conditions: water 75/65°C, air 20°C. Heating 900 1000 1250 1500 1750 2000 2250 2500 2750 3000 Q [W] (0) - no 151 168 210 252 294 336 378 420 462 504 Q [W] (1) - low 693 770 963 1155 1348 1540 1733 1925 2118 2310 Q [W] (2) - medium 983 1092 1365 1638 1911 2184 2457 2730 3003 3276 Q [W] (3) - high 1260 1400 1750 2100 2450 2800 3150 3500 3850 4200 The technical parameters are set according to the relevant standards. Actual values ​​may vary depending on placement, grid type and connection. Specifications Width 420 mm Height 400 / 600 mm Length 500 - 2000 mm Power 1400 W/m Features: Very wide panel Maximum power EC motor Documentation 📄 Download technical sheet (PDF) Manufacturer: MINIB - www.minib.cz
