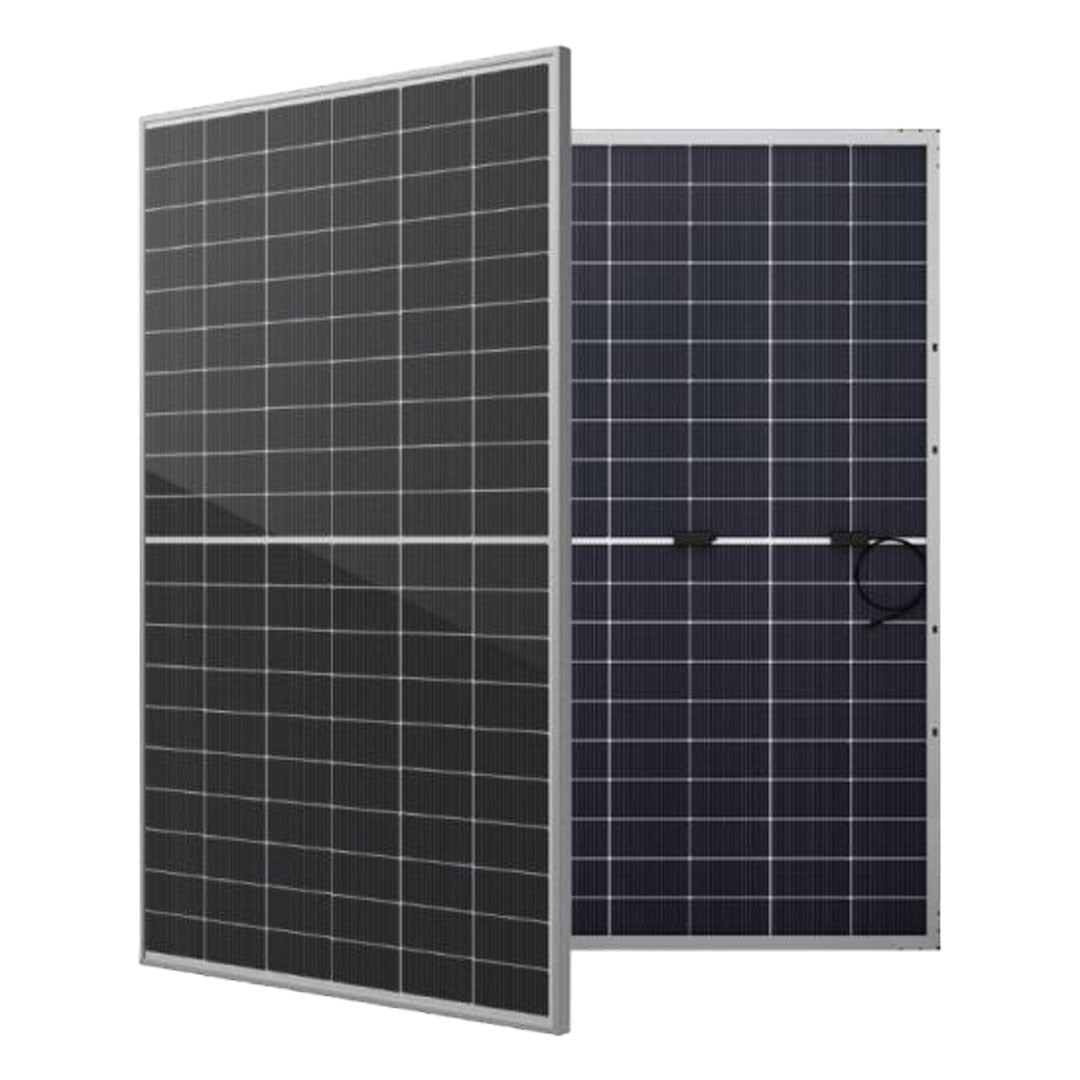

HANOVER Solar HS445-54-182 TC – 445 W | N-Type TOPCon | Bifacial | Double Glass | 1722 × 1134 × 30 mm

Hanover Solar HS445-54-182 TCis a high-efficiency double-sided N-Type TOPCon double-glazed solar panel combining high efficiency, excellent mechanical resistance and long-term reliability.
With an efficiency of22.78%, SMBB technology, full PID protection and bifacial extraction to554W, the module is an excellent solution for roof and ground installations where maximum performance and strength are sought.

The Double Glass construction guarantees long life, low LID/LETID and exceptional resistance to climatic loads.
Classic size1722×1134×30 mm, the module is compatible with almost all types of mounting structures.

Bifacial Gain

✅ +5%:to 467 W
✅ +15%:to 511 W
✅ +25%:up to 554 W

Temperature characteristics

Isc factor: +0.045 %/°C
Voc factor: –0.250 %/°C
Pmax coefficient: –0.290 %/°C
Operating temperature: –40°C ~ +85°C
NOCT: 45 ± 2°C

Operating parameters

Maximum system voltage: 1000V / 1500V (IEC)
Power Tolerance: 0 ~ +3 %
Voc / Isc Tolerance: ±3 %
Max. fuse current: 25 A
Protection class: Class II
Fire class: IEC Class C

Certificates and standards

IEC 61215 (2016)
IEC 61730 (2016)
ISO 9001:2015
ISO 14001:2015
ISO 45001:2018
DEKRA, CE, PID protection

Key benefits

N-Type TOPCon cells – higher efficiency and lower LID/LETID
Double Glass construction – higher durability and resistance
Bifacial module - yield on both sides +5% to +25%
SMBB technology – better current sum and higher power contribution
PID Resistance – superior resistance to PID effects
Enhanced Mechanical Load – 5400 Pa snow / 2400 Pa wind
High resistance to temperature and atmospheric influences

Guarantees

12 year product warranty
30 year linear power warranty

Residual power after 30 years:87.4%

We inform you that, despite our efforts, we cannot guarantee that the published information and photos do not contain inaccuracies or errors that cannot be a legal basis for claims.

Technical characteristics

✅ Maximum power (Pmax): 445 W
✅ Open Circuit Voltage (Voc): 38.02 V
✅ Short circuit current (Isc): 14.67 A
✅ Voltage at max. power (Vmp): 31.92 V
✅ Current at max. power (Imp): 13.94 A
✅ Module efficiency: 22.78 %
✅ Dimensions: 1722 × 1134 × 30 mm
✅ Weight: 20.8 kg
✅ Cells: 108 (2×54), N-Type TOPCon
✅ Glass: Double Glass – 2.0 mm
• Front glass: Anti-reflection coating
• Rear glass: Heat strengthened
✅ Frame:Aluminum, anodized
✅ Terminal box: IP68
✅ Cables: 4 mm², 300/300 mm
✅ Pallet:36 pcs.
✅ Container:216 pcs. (20') / 936 pcs. (40' HC)
