JA Solar JAM66D46 715/LB – 715 W | N-Type Bifacial | Double Glass | DEEP BLUE 4.0 Pro | 2384 × 1303 × 33 mm

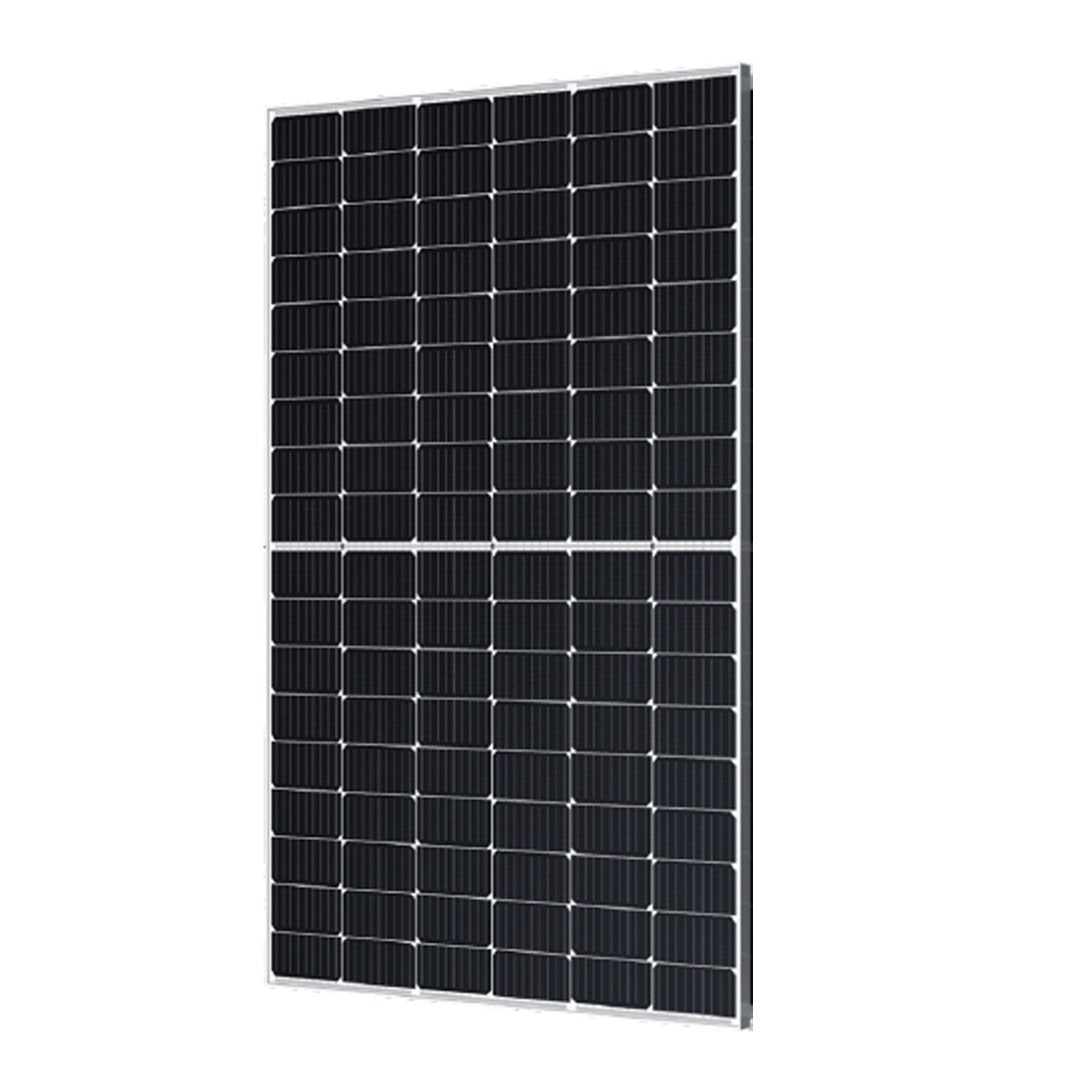

JA Solar JAM66D46 715/LBis highly efficientN-Type bifacial solar modulefrom the seriesDEEP BLUE 4.0 Pro, designed for large ground and industrial photovoltaic projects.
Thanks tothe two-sided Double Glass constructionand the high bifacial coefficient, the module provides significantly higher energy yield compared to traditional P-Type panels.

The combination ofN-Type cells, low degradation and excellent temperature characteristics results in a lower cost of energy produced (LCOE) and long-term reliability, even in severe climatic conditions.

Temperature characteristics

Temperature coefficient Isc: +0.045 % / °C
Temperature Coefficient Voc: –0.250 % / °C
Temperature coefficient Pmax: –0.290 % / °C
NOCT: 45 ± 2 °C
Operating temperature:–40 °C to +85 °C

Working conditions

Maximum system voltage: 1500 V DC
Maximum string current: 35 A
Mechanical resistance:
• Snow: 5400 Pa
• Wind: 2400 Pa
Fire class: UL Type 29
Protection class: Class II

Key benefits

N-Type technology– very low LID and longer life
DEEP BLUE 4.0 Pro– optimized for large industrial projects
Bifacial Double Glass design– additional energy output
Lower degradation:
• 1st year: ≤1 %
• Annual degradation: ≤0.4 %
Excellent performance at high temperatures and low light
Lower LCOE and higher area yield

Certificates

 IEC 61215 / IEC 61730
 ISO 9001 / ISO 14001 / ISO 45001
 CE, TÜV
 IEC 62941 (PV Quality System)

Guarantees

12 year product warranty
30 year linear power warranty
Guaranteed residual power after 30 years:≥87.4 %

Summary

Power: 715 W
Cells: N-Type Mono, Half-Cell, 16BB
Type: Bifacial Double Glass
Efficiency: 23.0 %
Size: 2384 × 1303 × 33 mm
Warranty:12 years product / 30 years linear

We inform you that, despite our efforts, we cannot guarantee that the published information and photos do not contain inaccuracies or errors that cannot be a legal basis for claims.

Technical characteristics

✅ Maximum power (Pmax): 715 W
✅ Open Circuit Voltage (Voc): 48.80 V
✅ Short circuit current (Isc): 18.55 A
✅ Voltage at maximum power (Vmp): 41.00 V
✅ Current at maximum power (Imp): 17.44 A
✅ Module efficiency: 23.0 %
✅ Bifacial coefficient: 80% ± 5%
✅ Additional yield (10% back irradiation): up to ~675 W
✅ Dimensions: 2384 × 1303 × 33 mm
✅ Weight: 38.2 kg
✅ Cells: 132 Half-Cell (66×2), N-Type Mono, 16BB
✅ Glass: Double Glass
• Front glass: 2.0 mm
• Rear glass: 2.0 mm
✅ Frame: Aluminum, anodized
✅ Terminal box: IP68, 3 diodes
✅ Connectors: QC 4.10-35 / MC4-EVO2A
✅ Cables: 4 mm², 300 mm (+) / 400 mm (–)
