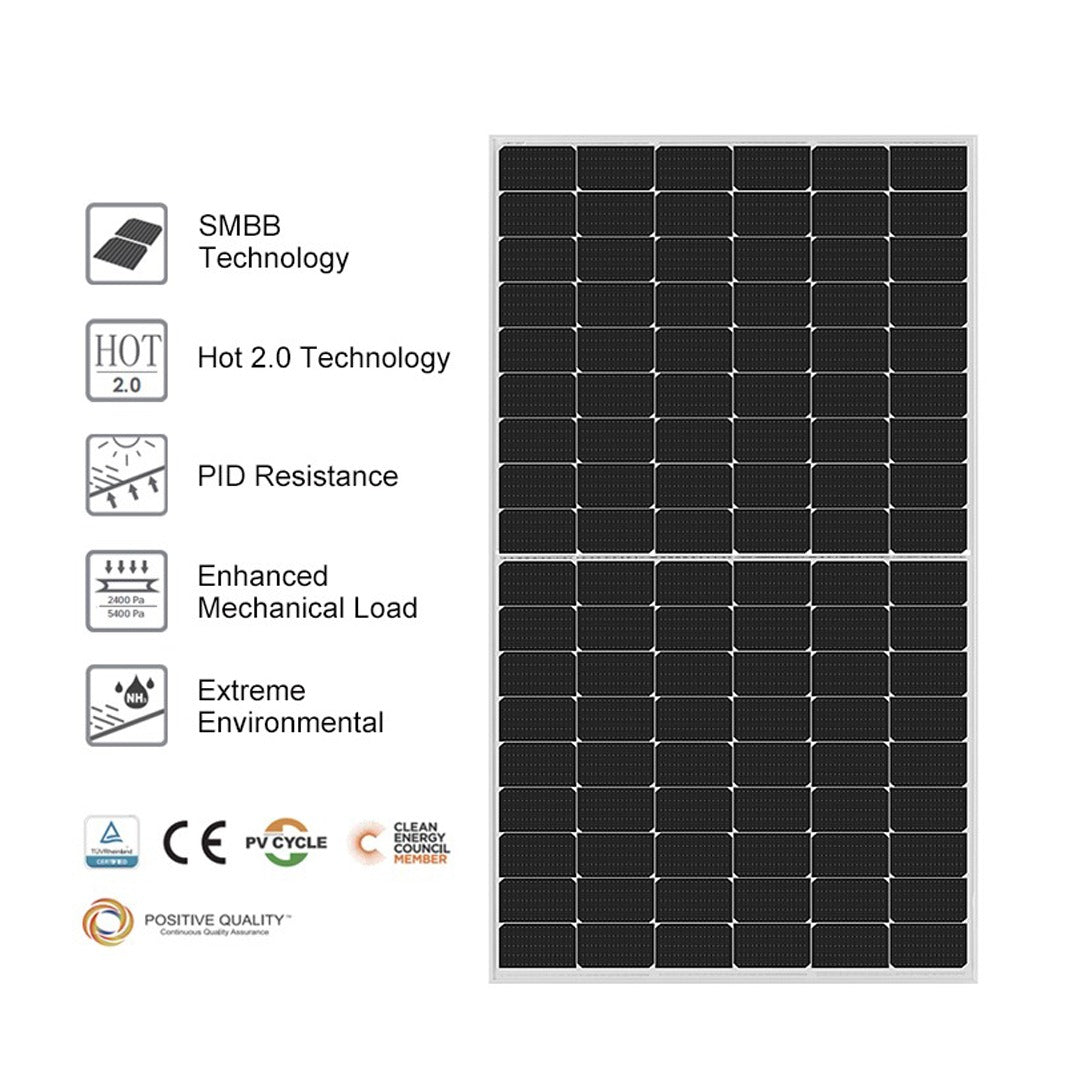

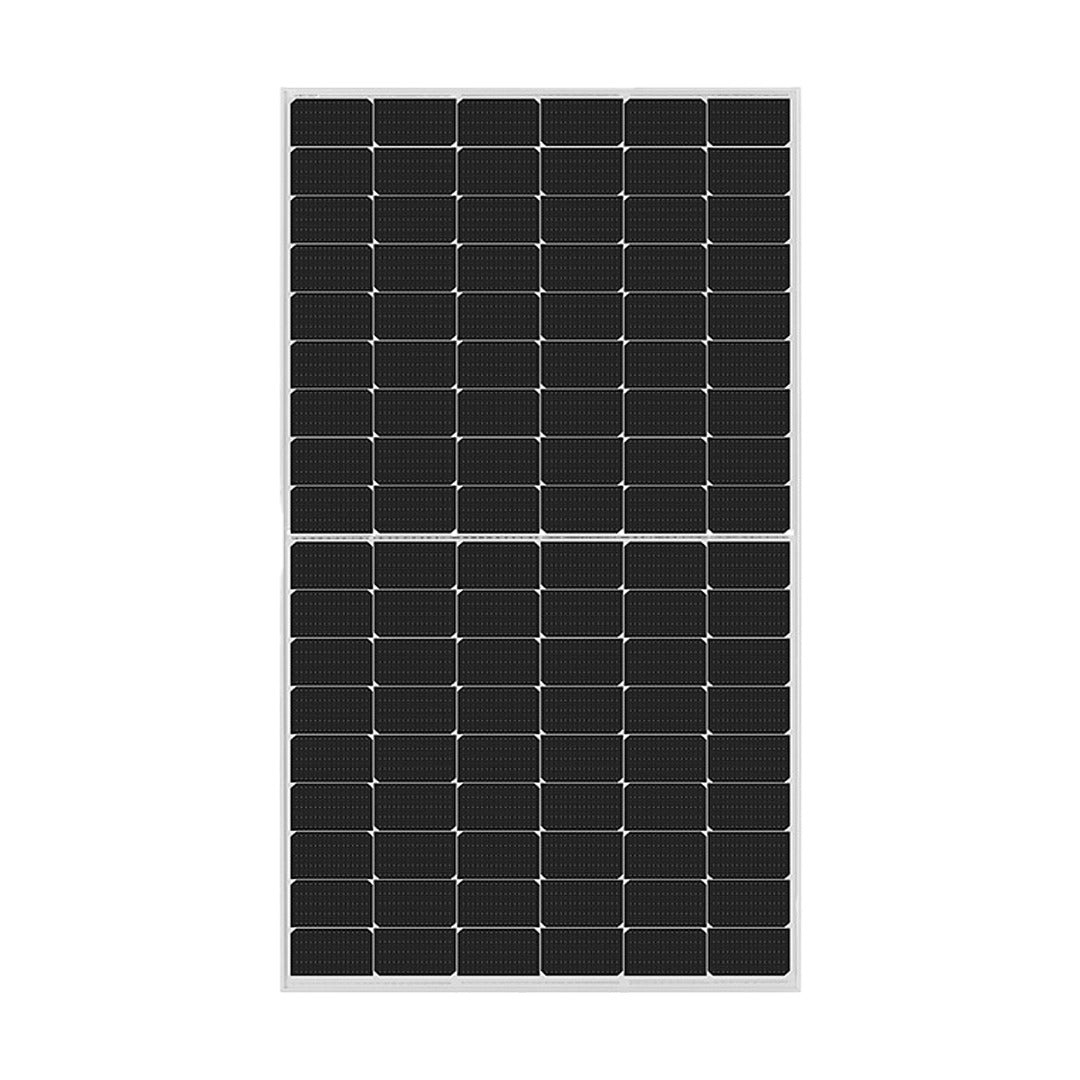

Jinko Tiger Neo 425W N- type Mono-crystalline 1722x1134x30mm

Jinko Tiger Neo 425W N-Type Monocrystalline – JKM425N-54HL4-V

High-efficiency monofascial solar panel of the latest generation, built with N-type TOPCon cells, Half-cut technology and advanced Hot 2.0 process. Ideal for residential and commercial PV systems, with compact dimensions and exceptional resistance to outdoor conditions.

Guarantees:

✔️ 15 years warranty for the product;
✔️ 30 years linear power warranty (0.4% annual degradation; ≥87.4% after 30 years).

Applications:

✔️ Residential and commercial roofing installations
✔️ Areas with an aggressive atmosphere - coastal and industrial;
✔️ PV systems requiring high efficiency in limited space;
✔️ Systems with requirements for long-term performance and minimal maintenance.

Jinko Tiger Neo 425Wis a panel that combines technological innovation and proven reliability, designed for modern solar solutions with a focus on high efficiency, aesthetics and durability.

Number in pallet – 36 pcs.

We inform you that, despite our efforts, we cannot guarantee that the published information and photos do not contain inaccuracies or errors that cannot be a legal basis for claims.

Main features:

✅ Power: 425 W
✅ Efficiency: 21.76%
✅ Technology:N-type monocrystalline cells, SMBB, Half-cell (108 cells)
✅ Dimensions: 1722 × 1134 × 30 mm
✅ Weight: 22 kg
✅ Temperature range: –40°C ~ +85°C
✅ Cold resistance:High resistance to salt spray, ammonia and aggressive environments
✅ Static load:5400 Pa (snow) / 2400 Pa (wind)
✅ PID resistance:Guaranteed protection through production control
✅ Output cables:1×4.0mm² (400mm positive / 200mm negative)
✅ Protection class: IP68
✅ Frame:Anodized aluminum
✅ Glass:3.2 mm, hardened, low-iron, with anti-reflective coating
✅ Maximum system voltage: 1000/1500V DC
✅ Permissible fuse current: 25 A
✅ Power Tolerance: 0~+3%
✅ Temperature coefficient of Pmax: –0.29%/°C

Additional information
