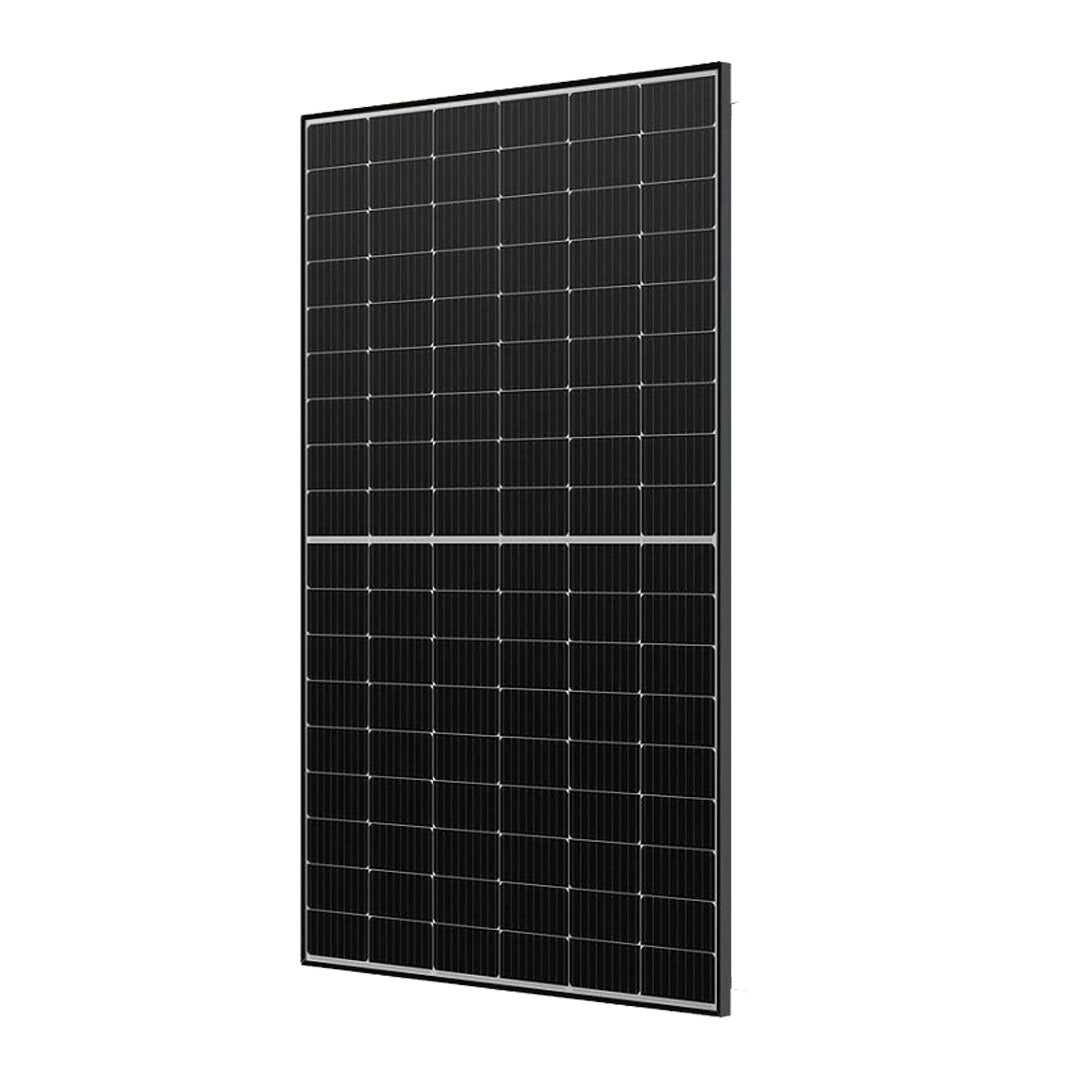

Jinko Tiger Neo 435W N-type Mono-crystalline 1762x1134x30mm Black Frame

Jinko Solar JKM435N-54HL4-Vis highly efficientN-Type monocrystalline solar panelfrom the seriesTiger Neo, developed for long-term reliability and stable energy output. Thanks toTOPCon cells, HOT 3.0 technologyandThe SMBB design, the module provides higher efficiency, lower degradation and excellent low-light performance.

The panel is suitable for bothroof housing systems, and forcommercial and industrial installations, where an optimal ratio between power, reliability and long-term investment is sought.

Mechanical characteristics

Dimensions: 1762 × 1134 × 30 mm
Weight: 21.0 kg
Cells: 108 Half-Cell (54×2), N-Type Mono
Windscreen:3.2 mm, hardened, anti-reflective, low iron
Frame:Aluminum, anodized
Terminal box: IP68
Protection class: Class II
Fire class: IEC Class C
Cables: 4.0 mm²
• (+) 400 mm
• (–) 200 mm
Connectors:JK03M / JK03M2 / MC4 / MC4-EVO2 (on request)

Temperature characteristics

Operating temperature:-40 °C to +70 °C
Temperature coefficient Pmax: –0.29 % / °C
Temperature Coefficient Voc: –0.25 % / °C
Temperature coefficient Isc: +0.045 % / °C

Mechanical resistance

Snow load (front side):up to 6000 Pa
Wind load (rear side):up to 4000 Pa
Resistant to salt spray and ammonia
Anti-PID technology– minimal degradation

Key benefits

N-Type TOPCon technology– lower LID/LeTID degradation
HOT 3.0 technology– higher reliability and efficiency
SMBB design– better light capture and higher current
Excellent low light performance
Suitable for residential and commercial PV systems
High mechanical resistance for harsh climatic conditions

Guarantees

15 year product warranty
30 year linear power warranty
• First year: ≤1 % degradation
• Annual degradation thereafter: ≤0.40 %
Residual power after 30 years: ≥87.4 %

Certificates

 IEC 61215:2021 / IEC 61730:2023
 IEC 61701 / IEC 62716 / IEC 60068 / IEC 62804
 ISO 9001 / ISO 14001 / ISO 45001
 CE

Summary

Power: 435 W
Cells: N-Type TOPCon, Half-Cell
Efficiency: 21.77 %
Size: 1762 × 1134 × 30 mm
Warranty:15 years product / 30 years linear

We inform you that, despite our efforts, we cannot guarantee that the published information and photos do not contain inaccuracies or errors that cannot be a legal basis for claims.

Technical characteristics

Maximum power (Pmax): 435 W
Voltage at maximum power (Vmp): 32.59 V
Current at maximum power (Imp): 13.35 A
Open Circuit Voltage (Voc): 39.16 V
Short circuit current (Isc): 13.80 A
Module efficiency: 21.77 %

Power Tolerance: 0 ~ +3 %
Maximum system voltage: 1000 / 1500 V DC (IEC)
Maximum fuse current: 25 A
