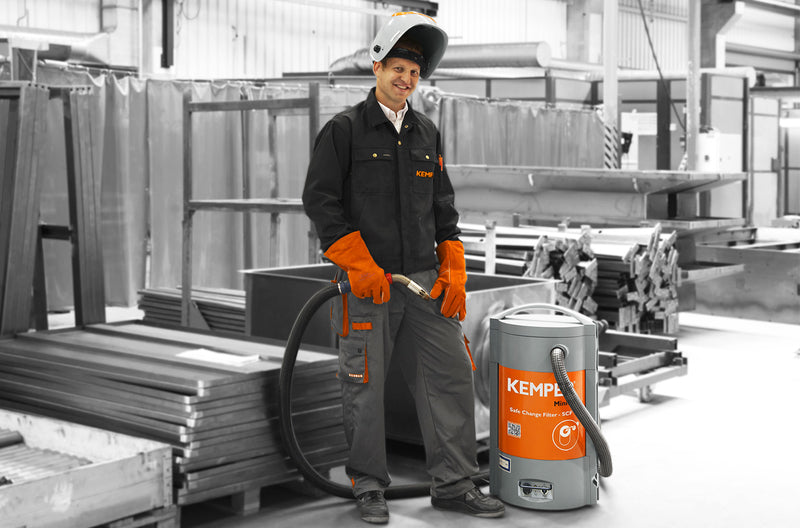

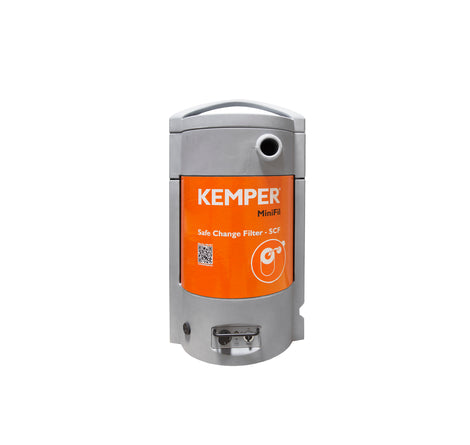

Kemper MiniFil High Vacuum Smoke Extraction Filter Unit

The compact MiniFil high-vacuum extraction unit for medium amounts of smoke and dust ensures high mobility for frequently changing workplaces with on torch extraction or extraction nozzles. The integrated automatic start/stop and the contamination-free filter change make the MiniFil especially simple and safe to use.

Application:

• Suitable for all materials, including high-alloy steel
• Low amounts of smoke/dust
• Occasional use
• Nozzles, funnel and torch extraction

Benefits:

• Energy-saving operation with integrated automatic start/stop function for AC/alternating current
• Increased safety with safe filter change

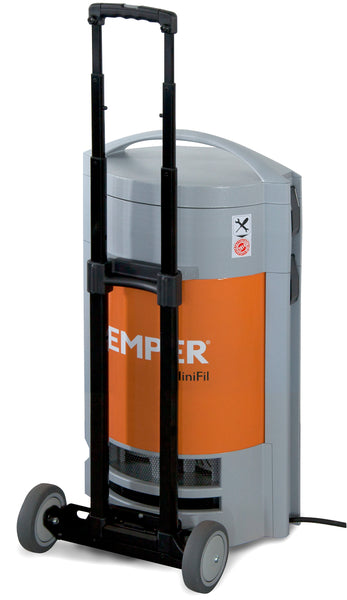

• Ideal for changing workplaces due to its low weight and optional trolley
• Optimal adjustment to the welding process with stepless speed control

Properties:

• Filter monitoring
• Stepless speed control
• Safe Change Filter
• Start/Stop-Automatic for alternating current
• Spark separator

Accessories:

• Trolley
• Various hose lengths
• Various extraction nozzles

Options:

• Other voltages

Downloads:

Datasheet (578,1 KB)

Operating Instructions (3,09 MB)

Supplementary Operating Instructions (4,31 MB)

Overview MiniFil (916,86 KB)

Assembly instruction – replacing carbon brushes (3,92 MB)

Assembly instruction – replacing the suction turbine (3,3 MB)

Technical Data:

Filter

Filter stages

3

Filter method

Disposable filter

Filter surface

12 m²

Type of filter

Safe Change Filter

Filter material

Non-woven polyester

Filter efficiency

> 99 %

Filter class

H13

Additional filters

Cyclone pre-filter

Additional filters

Pre-filter (aluminium)

Basic data

Extraction capacity

150 m³/h

Dimensions (w x d x h)

425 x 365 x 790 mm

Weight

20 kg

Turbine

2pce. each 1kW

Motor power

2 kW

Power supply

1 x 230 V / 50 Hz

Rated current

10 A

Control voltage

24 V, DC

Noise level

74 dB(A)

Additional information

IFA-Certification

W3-Approved

Fan type

Suction turbine

Hose connection

Ø 45 mm
