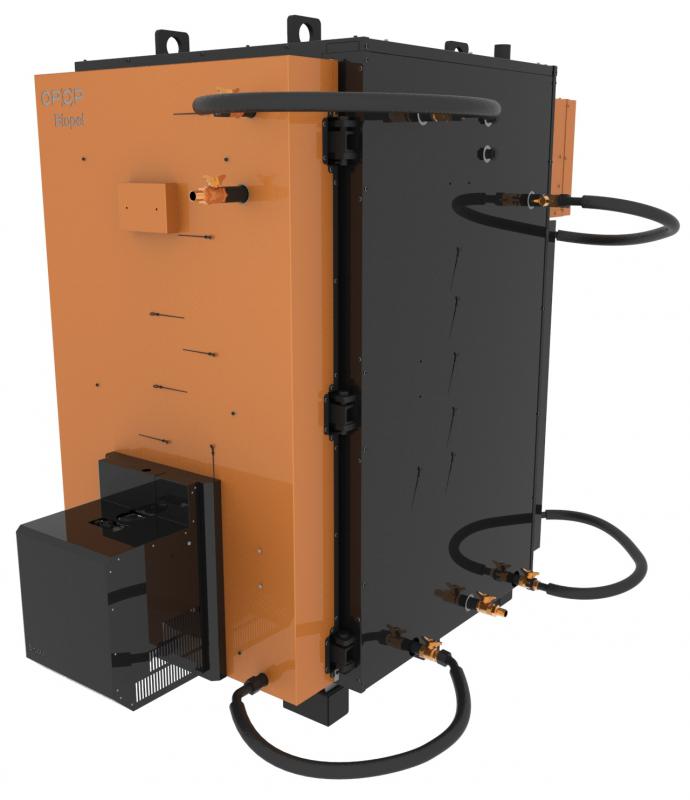

Пелетен котел 100 kW - OPOP BIOPEL 100
Available:
Only 0 item in stock
0 item in stock
In stock
Pre-order
Out of stock
25,824.00 лв
Brochure Instruction Certificate
Fuel: pellets
Power range: 30-100 kW
BIOPEL series boilers are automated boilers designed for economical and environmentally friendly heating of large and medium-sized buildings. Working with them is hassle-free and user-friendly. The BIOPEL boiler has automatic ignition, automatic feeding of the pellets to the burner and is also available in a version with a self-cleaning system. Emissions are low and waste ash is small. The efficiency of the boiler is high, which is a guarantee of economic profit. The management of your heating system can be done via the Internet or by means of a wireless thermostat installed in a place convenient for you.
Emission class: 4th
Energy class: A++
SVT code: 7164
* High efficiency up to 95.5%
* Low consumption of pellets and electricity
* Stainless steel burner
* Long boiler life
* Reliable automatic ignition system
* Pellet boiler control devices are equipped with an Internet module that allows monitoring the operation of the boiler and changing the parameters of the boiler via the Internet
* Pellet boiler control allows basic control of two heating circuits, control of boiler operation based on data from external sensors, ability to set hot water preheating, communication with superior control.
* Large modulation range of boiler power
* The compressor for cleaning the burner is the main equipment of boilers with a power of 80 to 200 kW
* All pellet boilers are equipped with flue gas turbulators to increase efficiency
* Boiler supply includes 3-way or 4-way valve control module
* The controller makes it easy to connect additional devices via connectors
* The control is equipped with a USB connector for possible program updates
* Supply caps with Length 2m or 3m for all power lines.
 |
Lambda probe It ensures that the required amount of fuel air is maintained inside the boiler. Optimizes the combustion process in the case of fluctuating chimney flow and pellet quality. It includes a separate lambda probe, electrical circuit and connecting cables. |
 |
Room thermostat The wireless room thermostat allows convenient control of the boiler and temperature regulation from anywhere in your home. |
 |
Vacuum feeder They are used to transport pellets over long distances. The pellet feed system is again controlled by the boiler control unit. The pellets are transported to the hopper from which the external feeder is fed to the burner. |
 |
Module ST - 431 N The ST-431N is designed to operate a mixing valve (3 or 4-way) with the option of connecting an additional pump to the valve. In addition, this controller can work with two other modules to control the three mixing valves in total. The controller is equipped with the function of time adjustment, weekly adjustment and can also work with a room controller. |
 |
Compressor set for cleaning the heat exchanger The compressor can be supplemented with a set of accessories for cleaning the compressor of the heat exchanger for boilers with a power of 100 to 200 kW. |
 |
Gsm module Modern remote control and servicing of the boiler via mobile phone. |
 |
External bunkers You can also choose from a range of outer trays to match your Biopel range. Hoppers are produced in pellets of 110, 220, 300, 350 kg or 3 tons of pellets. The types are 60x60, 80x80, 100x100, 1420x80 and 3 ton trays. |
