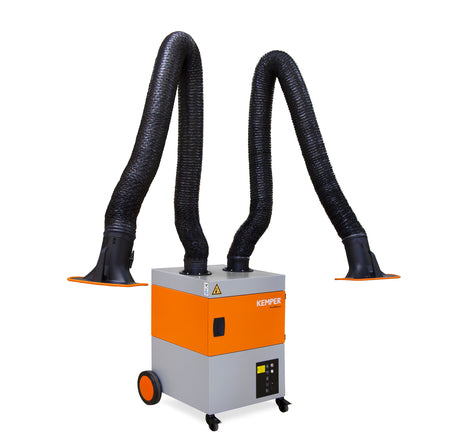

Kemper ProfiMaster Welding Smoke Filter Unit

ProfiMaster is a robust smoke extraction filter unit for occasional to frequent use with low to medium amounts of dust. The high capacity disposable filter can easily be changed. The two-exhaust arm version with integral dampers allows simultaneous or alternating work in two places with adjustable extraction performance.

Application:

Low to medium levels of smoke and dust

Occasional to frequent use

For two work places

Benefits:

Safe operation by rotation field control

Maintenance door allows easy filter change

Exhaust arm requires less adjustment due to flow-optimised exhaust hood design

Increased safety due to filter monitoring

Space-saving solution due to two extraction arms

Possibility of working in two alternating places due to dampers in the extraction hood

Properties:

Exhaust arm up to 4 m

Automatic Start/Stop (optional)

Rotating exhaust hood

Accessories:

Automatic start/stop

Options:

Other voltages

Downloads:

Datasheet (1,02 MB)

Operating Instructions (2,89 MB)

Overview ProfiMaster (868,63 KB)

Technical Data:

Filter

Filter stages

2

Filter method

Disposable filter

Filter surface

17 m²

Type of filter

Filter cassette

Filter material

Non-woven fibre

Filter efficiency

> 99.5 %

Filter class

E12

Additional filters

Pre-filter

Basic data

Extraction capacity

2 x 700 m³/h

Dimensions (w x d x h)

797 x 828 x 977 mm

Weight

113.8 kg

Motor power

1.1 kW

Power supply

3 x 400 V / 50 Hz

Rated current

2.3 A

Control voltage

24 V, DC

Noise level

72 dB(A)

Additional information

Fan type

Radial fan

Quantity of extraction arms

2

Exhaust arm type

flexible exhaust arm

Diameter extraction arm

150 mm

Length of exhaust arm

2 m
