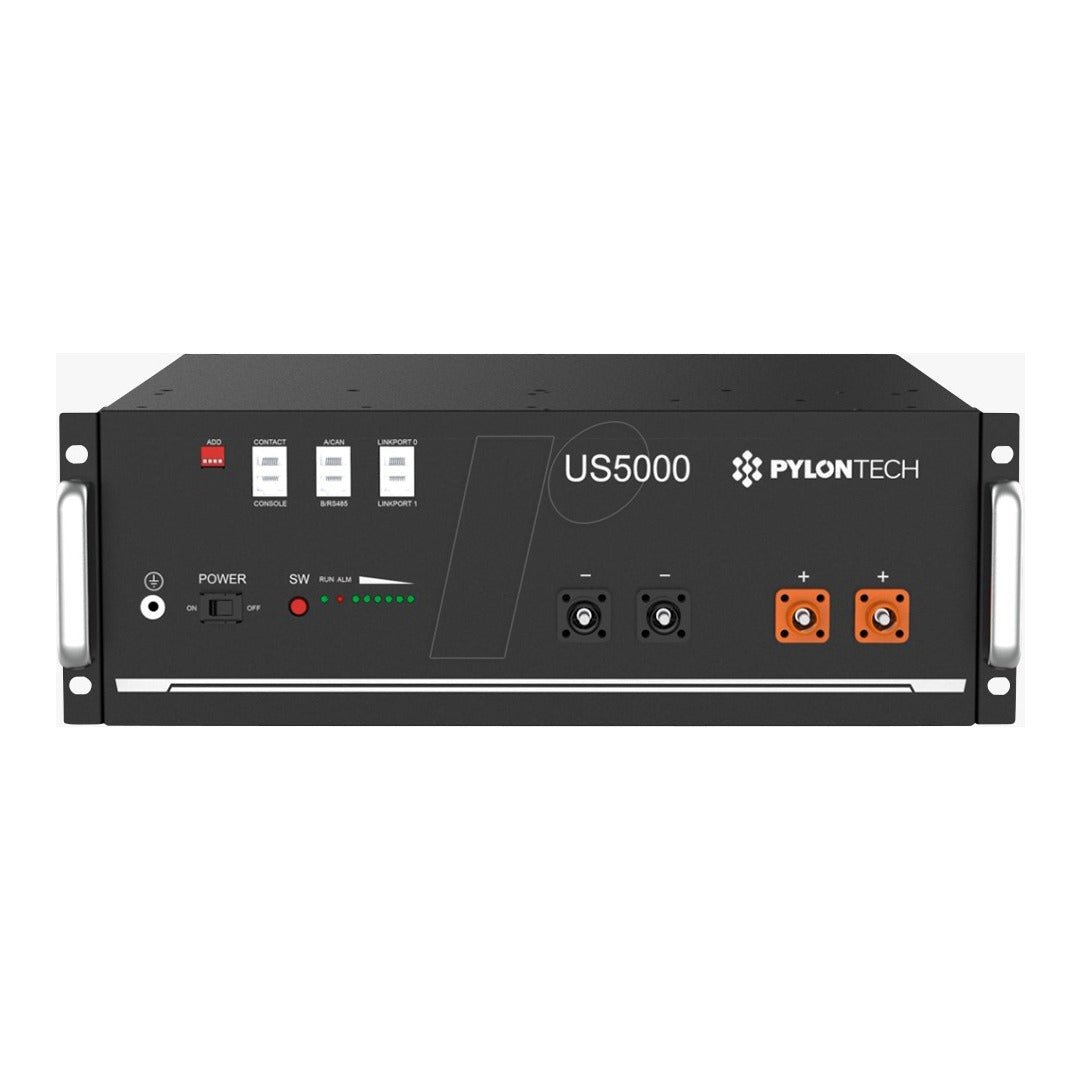

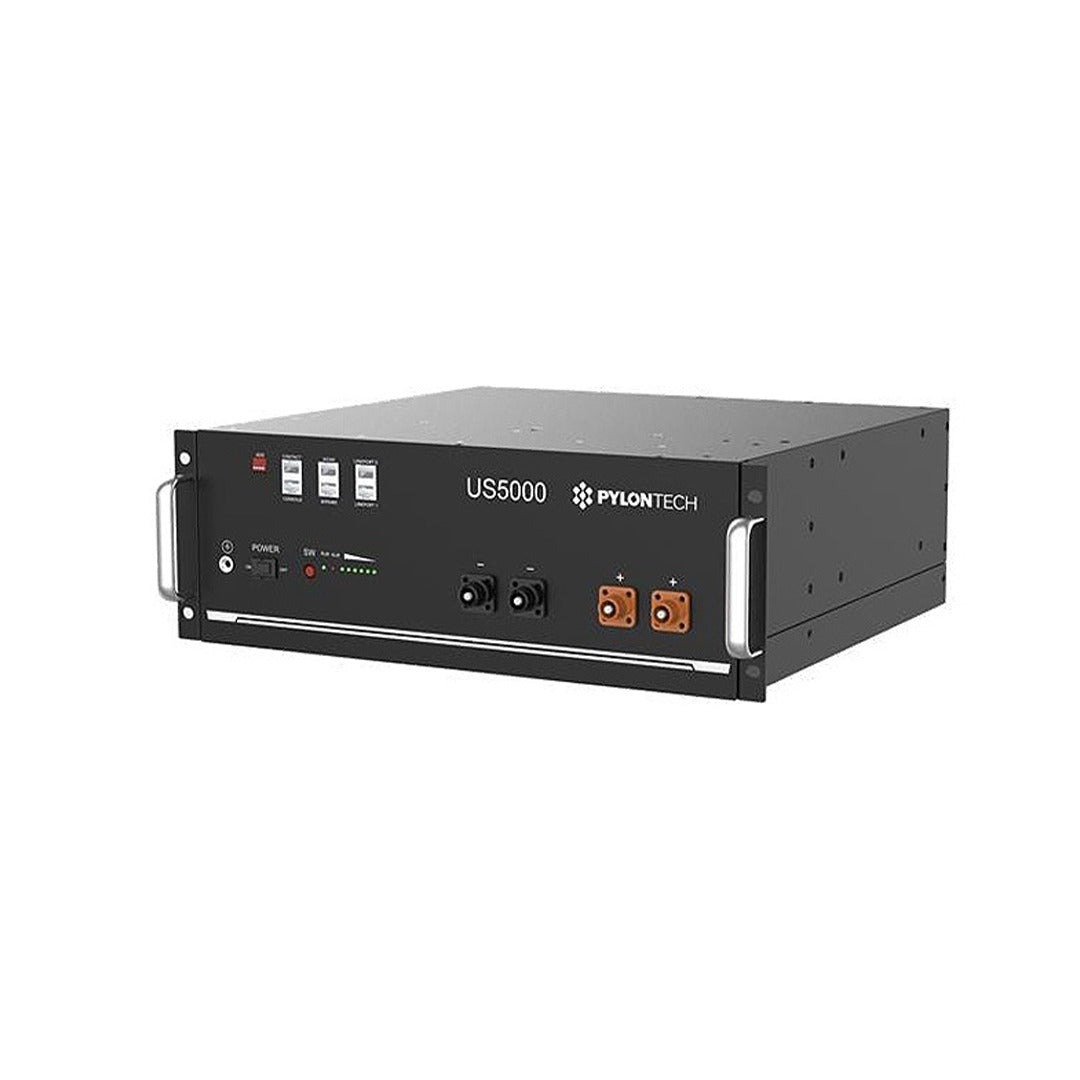

PYLONTECH Rechargeable Li-ion low voltage battery US5000, 48V LFP

PYLONTECH US5000 48V LFP - Low Voltage Li-ion Battery 4.8 kWh for Solar Systems with 8000+ Cycles

Description and functionality

Pylontech US5000is highly efficientlow voltage LiFePO₄ (LFP) battery 48V, designed for hybrid and off-grid photovoltaic systems. The model is part of the provenUS series, offering high reliability, long service life and easy modular upgradeability.

The Pylontech US5000 offershigh energy density and stability, thanks to LFP chemistry with excellent thermal safety. It is suitable for working with most popular hybrid inverters (Growatt, Deye, Solis, Victron, etc.).

The battery supportsmodular expansion, which allows for easy capacity expansion by adding additional modules in one system.

It's the battery19” rack-mountable, suitable for cabinet or wall mounting, and allows parallel connection to increase capacity according to system needs.

Electrical parameters

• Rated voltage:48 VDC

• Rated capacity:4.8 kWh

• Usable capacity:4.56 kWh

• Rated charge/discharge current:100 A

• Peak current (15 sec):200 A

• Short circuit:< 4000 A / 2 ms

• Recommended depth of discharge:95%

Working conditions

• Charging temperature:0°C to +55°C

• Discharge temperature:-10°C to +55°C

• Degree of protection:IP20

• Humidity:5% – 95% (non-condensing)

• Altitude:< 4000 m

• Design life:15+ years

Construction

• Dimensions:442 × 420 × 161 mm

• Weight:≈ 39.7 kg

• 19” rack compatible design

• Easy installation and connection

Accessories included

• 2 × 210 mm 4AWG power cables

• 1 × 210 mm RJ45 communication cable

• 1 × 1000mm 6AWG ground wire

Application

• Hybrid photovoltaic systems

• Off-grid solutions

• Backup power supply

• Small and medium commercial installations

Certification

• IEC62619 / IEC63056

• UL1973 / UL9540A

• UN38.3

• CE

Warranty

• 10 year factory warranty
