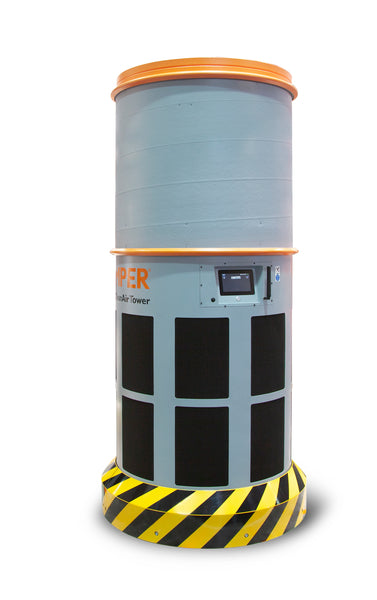

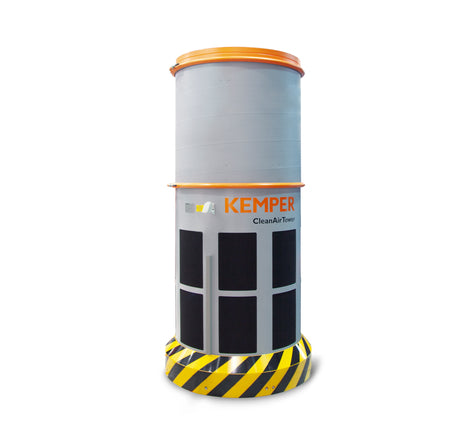

Kemper Room ventilation CleanAirTower SF 5000 with storage filter

The CleanAirTower ventilation system is used wherever local extraction does not work or is insufficient. CleanAirTower SF 5000 is equipped with a disposable filter. It effectively protects employees and machines from fine dust. The purified air is recirculated. The device creates almost no air turbulence, ensuring that dust is not distributed in clean areas. CleanAirTower operates in accordance with the principle of displacement ventilation recommended by health and safety authorities. * The function and use of the cloud are free for the first 12 months.

Application:

Low amounts of smoke / dust

Seminars where local exhaust ventilation is not possible

In addition to local exhaust ventilation systems

Environment with changing sources of smoke and dust

Workstations, workshops, logistics and distribution centers

Workshops with low ceiling height

Benefits:

Fleet management, remote and noise support using autarkic networks via mobile radio to the cloud KEMPER *

Minimization of heating costs due to air recirculation and air distribution

Low risk potential due to foreign bodies

Economical installation or modernization, as no ducts are required

Short-term increase in extraction performance due to the TurboBoost featurе

Prоperties:

Extraction radius of 360 degrees

KEMPER-Cloud connection via mobile network *

Slow, low-impulse air circulation

Principle of landfill flow recommended by health and safety authorities

Touch panel control

The system barely generates air turbulence

TurboBoost function

Accessories:

AirWatch

Way of acting:

Extraction of ambient air by means of the built-in fan

The purified air is returned to the working space from low level exhaust vents

The warm cleaned air directs the welding smoke back to the inlet grilles and thus creates a slow circulation of air and workstations.

Downloads:

Datasheet (667,47 KB)

Technical data:

Filter

Filter stages

2

Filter method

Disposable filter

Filter surface

50 m²

Filter material

nanocellulose

Filter efficiency

> 99.9%

Dust classification

M

basic data

Extraction capacity

5000 m³ / h

Height

2660 mm

Diameter

1172 мм

Weight

416 kg

Engine power

3.35 kW

Power supply

3 x 400 V / 50 Hz

Rated current

5.2 A

Control voltage

24 V, DC

Noise level

70 dB (A)

More information

Fan type

Centrifugal fan with EC motor
