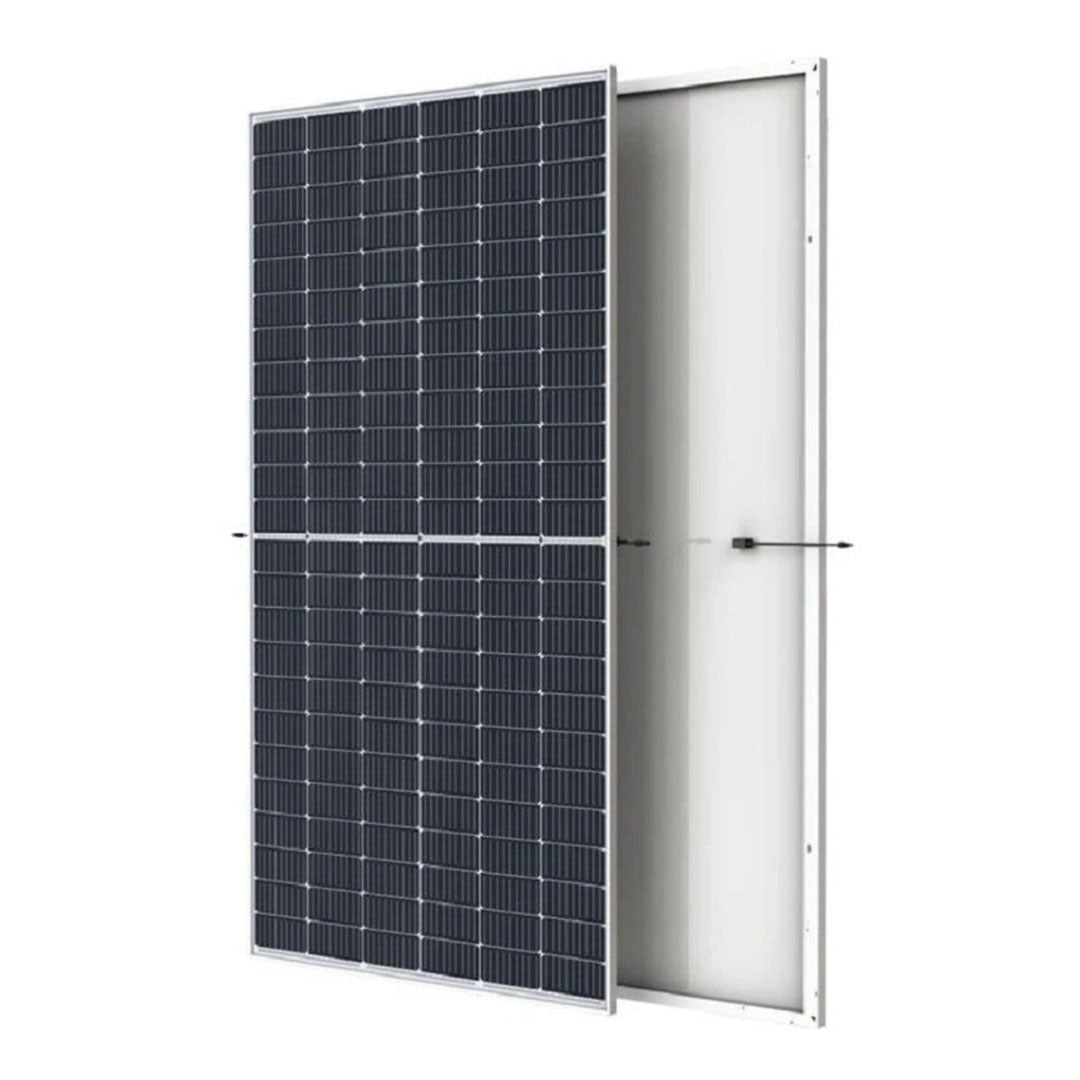

SHINEFAR PV module SF-M18/144 595W silver frame, monofacial, 2278*1134*30

SHINEFAR Solar SF-M18/144 595Wis a highly efficient monocrystalline photovoltaic module withN-type TOPCon Half-Celltechnology developed for maximum performance and long-term reliability. Thanks to SMBB (Super Multi Busbar) technology and optimized design, the panel provides lower electrical losses, higher efficiency and excellent performance in low light and high temperatures.

The module offers high resistance against PID effect, salt mist, ammonia and harsh climatic conditions, making it suitable for residential, commercial and industrial PV systems. With its high efficiency of23.03 %, the 15-year product warranty and the 30-year linear power warranty,SF-M18/144 595Wis a reliable solution for projects where maximum yield and low price of the produced electricity are sought.

Temperature characteristics

Nominal Operating Temperature (NOCT): 45 ±2°C

Temperature coefficient (Pmax): −0.30 % / °C

Temperature Coefficient (Voc): −0.23 % / °C

Temperature coefficient (Isc): +0.05 % / °C

Construction and mechanical parameters

Technology: N-type TOPCon Half-Cell

Number of Cells: 144 Half-Cell (182 × 91 mm)

Module Type: Monofacial

Dimensions: 2278 × 1134 × 30 mm

Weight: 26.5 kg

Windscreen:Tempered solar glass 3.2 mm with high transparency

Backsheet:White

Frame:Silver anodized aluminum frame

Junction box: IP68

Cables: 4.0 mm², length300 mm

Bypass Diodes: 3 pcs.

Connectors: MC4 compatible

Reliability and durability

Maximum system voltage: 1500 V DC

Maximum fuse current: 25 A

Operating temperature: -40°C to +85°C

Maximum mechanical load:

• Snow:5400 Pa
• Wind:2400 Pa

Excellent resistance againstPID

High resistance to salt spray and ammonia

Reduced losses fromHot-Spoteffect

Optimized for lower LCOE and higher energy yield

Product warranty: 15 years

Linear Power Guarantee: 30 years

Guaranteed performance:

• 98.5 %after the first year
• 0.4 %maximum annual degradation
• 84.0 %guaranteed power after 30 years

Certificates:

• IEC/EN 61215
• IEC/EN 61730
• UL 61730
• IEC 61701 (Salt Mist)
• IEC 62716 (Ammonia)
• IEC 62804 (PID)
• ISO 9001
• ISO 14001
• ISO 45001
• CE
• UKCA

We inform you that, despite our efforts, we cannot guarantee that the published information and photos do not contain inaccuracies or errors that cannot be a legal basis for claims.

Technical characteristics

✅ Rated power (Pmax): 595 W

✅ Power Tolerance: 0 ~ +5 W

✅ Voltage at maximum power (Vmp): 43.39 V

✅ Current at maximum power (Imp): 13.71 A

✅ Open Circuit Voltage (Voc): 51.25 V

✅ Short circuit current (Isc): 14.77 A

✅ Module efficiency: 23.03 %
